Honda HR-V: Under-Dash Subrelay Box Removal, Installation, and Test

Honda HR-V (2015-2021) Service Manual / Electrical / Electrical System - Service Information / Under-Dash Subrelay Box Removal, Installation, and Test

Removal & Installation

1. Keyless Access Control Unit - Remove

2. Under-Dash Subrelay Box - Remove

Electrical System - Service Information

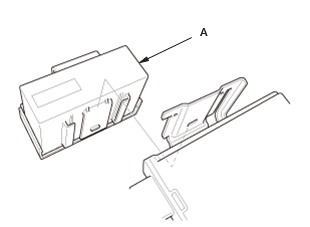

  1. Remove the under-dash subrelay box (A).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

Test

1. Under-Dash Subrelay Box - Test

Electrical System - Service Information

The under-dash subrelay box is contains these relays:

  • IG1A relay circuit
  • IG1B relay circuit
  • IG2 relay circuit

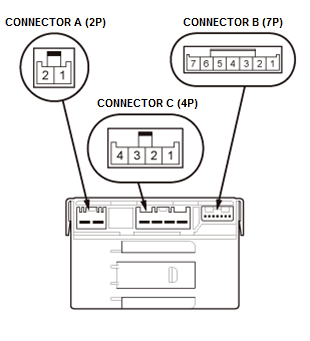

1. Test each relay circuit as shown:

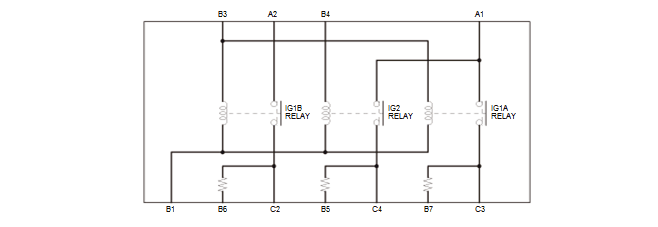

IG1A relay, IG1B relay, and IG2 relay

Electrical System - Service Information

IG1A relay circuit

There should be continuity between terminals A1 and C3 (or B7), when 12 volt battery power is connected to terminal B3, and body ground is connected to terminal B1. There should be no continuity between terminals A1 and C3 (or B7) when power is disconnected.

IG1B relay circuit

There should be continuity between terminals A2 and C2 (or B6), when 12 volt battery power is connected to terminal B3, and body ground is connected to terminal B1. There should be no continuity between terminals A2 and C2 (or B6) when power is disconnected.

IG2 relay circuit

There should be continuity between terminals A1 and C4 (or B5), when 12 volt battery power is connected to terminal B4, and body ground is connected to terminal B1. There should be no continuity between terminals A1 and C4 (or B5) when power is disconnected.

2. If any of these relay circuit fails the test, replace the under-dash subrelay box.
