Honda HR-V: Forward Clutch Clearance Inspection (CVT)

Special Tools Required

Clutch Compressor Attachment 07ZAE-PRP0100

Continuously Variable Transmission (CVT) - Testing & Troubleshooting

Clutch Compressor Attachment 64 mm 07ZAE-PRP0110

Continuously Variable Transmission (CVT) - Testing & Troubleshooting

Inspection

1. Forward Clutch Clearance - Inspect

Continuously Variable Transmission (CVT) - Testing & Troubleshooting

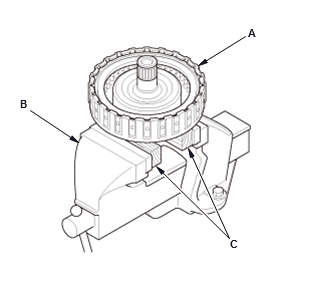

  1. Secure the input shaft assembly (A) in a bench vise (B) with wood blocks (C).

    NOTE: After this procedure, remove any wood chips that may be stuck to the spline.

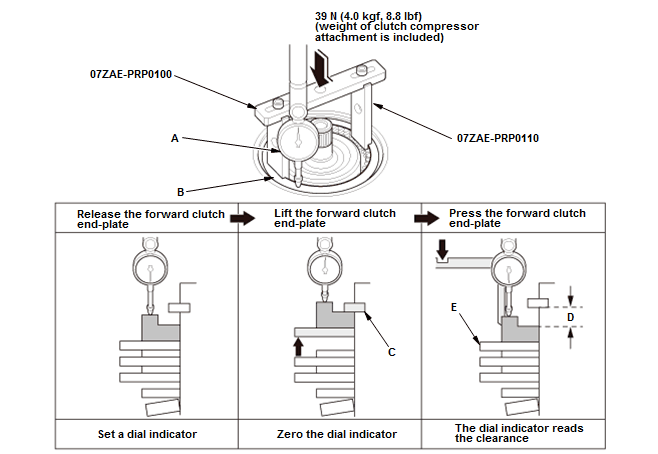

  2. Set a dial indicator (A) on the forward clutch end-plate (B).

Continuously Variable Transmission (CVT) - Testing & Troubleshooting

  1. Zero the dial indicator with the forward clutch end-plate is lifted up to the snap ring (C)
  2. Release the forward clutch end-plate
  3. Put the clutch compressor attachment and the clutch compressor attachment 64 mm on the forward clutch end-plate
  4. Press the clutch compressor attachment down with 39 N (4.0 kgf, 8.8 lbf) (the weight of the clutch compressor attachment is included) using a force gauge, and read the dial indicator
  5. The dial indicator reads the clearance (D) between the forward clutch end-plate and the top disc (E). Take measurements in at least three places, and use the average as the actual clearance.

Standard: 1.0-1.2 mm (0.039-0.047 in)

  1. If the clearance is out of the standard, replace the input shaft assembly.
