Honda HR-V: Evaporator Core Removal and Installation
Removal & Installation
NOTE: Be careful not to damage the evaporator core.
1. HVAC Unit - Remove
2. Heater Unit - Remove
3. Air Mix Control Motor - Remove (With Climate Control)
4. Mode Control Motor - Remove (With Climate Control)
5. Evaporator Core - Remove
.png)

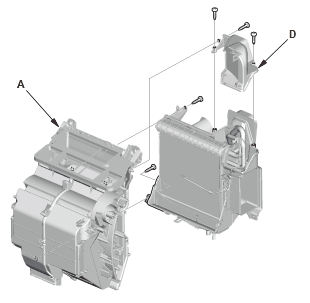

- Remove the heater unit case (A)
- Remove the heater unit case D.
.png)

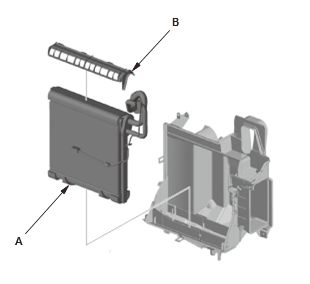

- Remover the evaporator core (A) and the plate (B).
6. Evaporator Temperature Sensor - Remove
7. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE: Make sure that there is no air leakage.
EVAPORATOR EXPANSION VALVE REMOVAL AND INSTALLATION
Removal & Installation
1. A/C Refrigerant - Recover
2. A/C Lines - Disconnect
3. Expansion Valve - Remove
.png)

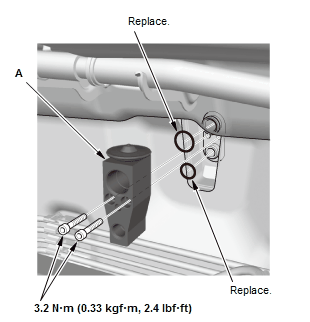

- Remove the expansion valve (A).
NOTE:
- Screw the A/C pipe fixing both in the expansion valve about 4 to 6
heads. Hold the bolts and pull them out.
- Be careful not to damage the expansion valve.
4. All Removed Parts - Install
- Install the parts in the reverse order of removal, and note these items:
- New O-rings should be used at each fitting. Prior to installation,
apply a thin coat of the same
refrigerant oil used in the A/C compressor. Be sure to use the correct
O-rings for HFC-134a
(R-134a) to avoid leakage.
- Charge the system with the specified amount of R-134a refrigerant.
EVAPORATOR TEMPERATURE SENSOR REMOVAL, INSTALLATION, AND TEST
Removal & Installation
1. Evaporator Core - Remove
2. Evaporator Temperature Sensor - Remove
.png)

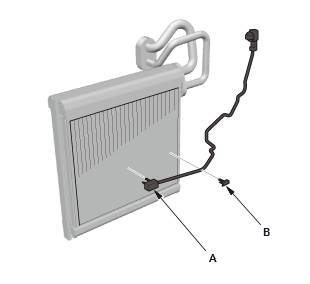

- Remove the evaporator temperature sensor (A)
- Remove the clip (B).
3. All Removed Parts - Install
.png)

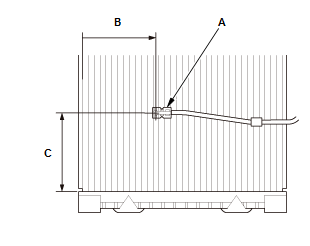

- Install the evaporator temperature sensor (A) in the evaporator core,
and
note these items: Refer to the following position list.

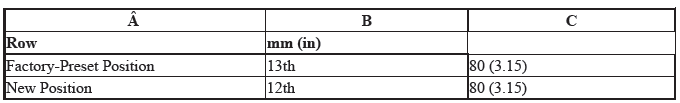

Dual A/C type
.png)

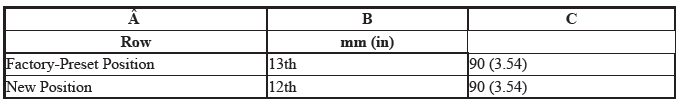

Except dual A/C type
.png)
Test
1. Evaporator Temperature Sensor - Test
.png)
.png)

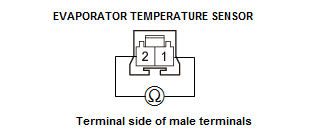

- Dip the sensor in ice water, and measure the resistance
between terminals No. 1 and No. 2
- Then pour warm water on the sensor, and check for a
change in resistance

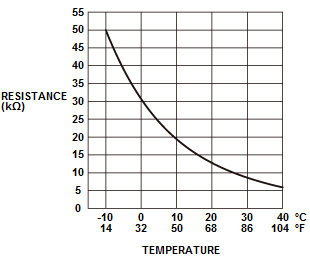

- Compare the resistance readings with the specifications
shown in the graph; the resistance should be within the
specifications
- If the resistance is not as specified, replace the evaporator
temperature sensor.
