Honda HR-V: Engine Undercover Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Exterior Trim - Service Information / Engine Undercover Removal and Installation

Removal & Installation

1. Vehicle - Lift

2. Engine Undercover - Remove (For Some Models)

Exterior Trim - Service Information

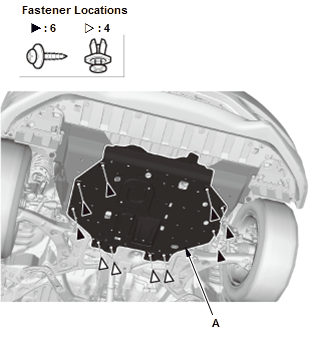

  1. Remove the engine undercover (A).

3. Front Splash Shield - Remove

Exterior Trim - Service Information

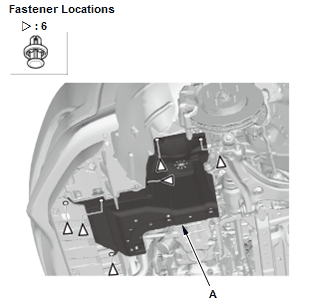

  1. Remove the front splash shield (A).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
