Honda HR-V: Engine Assembly Torque Rod Removal and Installation
Removal & Installation
1. Engine Undercover - Remove (With Engine Undercover)
2. Engine - Support
- Lift and support the engine with a transmission jack and a wood block
under the oil pan.
3. Torque Rod - Remove

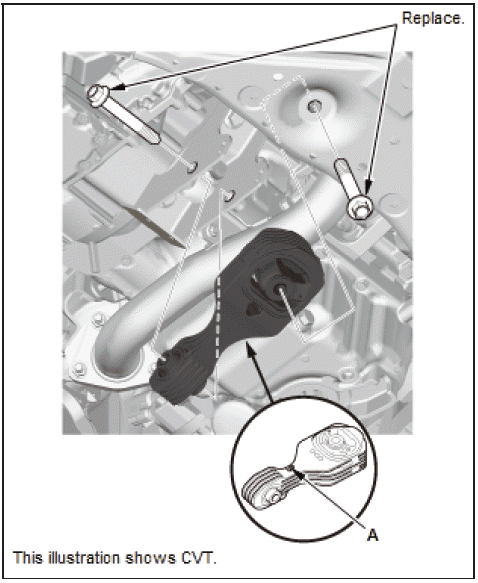

2WD
.png)

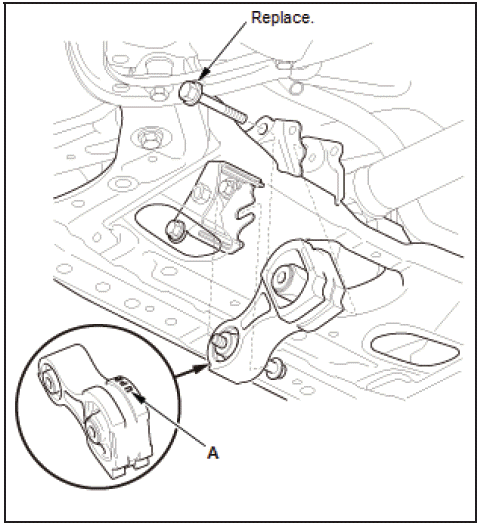

AWD
.png)
NOTE: When install the torque rod, be sure to install the torque rod with the
"UP" mark (A) facing up.
4. Torque Rod Bracket - Remove
.png)

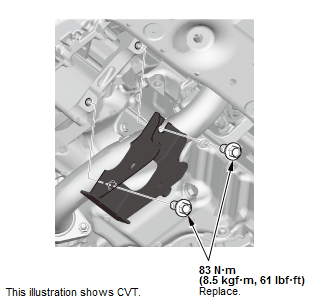

Fig. 13: Torque Rod Bracket With Torque Specifications
2WD/
AWD

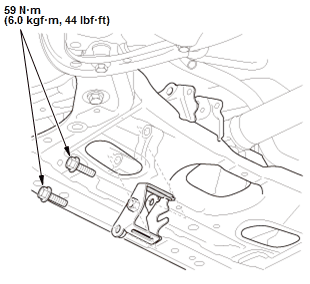

- Remove the torque rod bracket as needed.
.png)
Fig. 14: Torque Rod Bracket With Torque Specifications
5. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE:
- If the torque rod bracket is removed, install the torque rod
bracket, before installing the torque
rod.
- Do the mounts tightening procedure before tightening all of the
mounts' bolts and nuts.
ENGINE BLOCK DRAIN BOLT/SEALING BOLT REMOVAL AND INSTALLATION
Removal & Installation
1. Drain Bolt, Sealing Bolt, and Washer - Remove
.png)

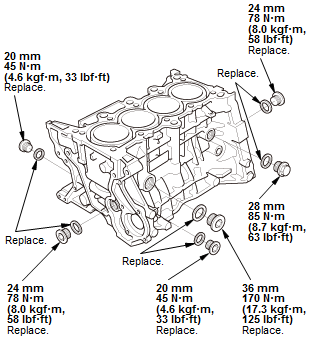

Fig. 15: Engine Block Drain Bolts With Torque Specifications
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
ENGINE OIL JET REMOVAL AND INSTALLATION
Removal & Installation
1. Crankshaft - Remove
2. Oil Jet - Remove
.png)

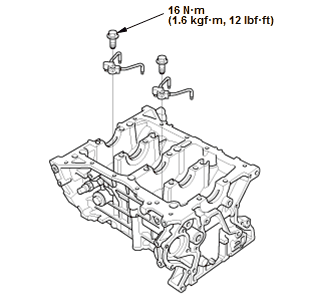

Fig. 16: Oil Jets With Torque Specifications
NOTE: Check the oil jets and the oil jet bolts for damaged or clogged. If it
is damaged or clogged,
replace the oil jet(s) and the oil jet bolt(s).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
