Honda HR-V: DTC Troubleshooting 83-14: Electric Parking Brake System Malfunction
NOTE: Before you troubleshoot, review the general troubleshooting
information.
1. Problem verification:
- Turn the vehicle to the ON mode.
- Clear the DTC with the HDS.
- Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
- Check for DTCs with the HDS.
Is DTC 83-14 indicated?
YES
Go to electric parking brake system troubleshooting.
NO
Intermittent failure, the system is OK at this time. Refer to intermittent
failures troubleshooting. If the
freeze data/on-board snapshot of this DTC is recorded, try to reproduce the
failure under the same
conditions with the Freeze data/on-board snapshot.
DTC TROUBLESHOOTING 83-16: SHIFT POSITION SIGNAL MALFUNCTION
NOTE: Before you troubleshoot, review the general troubleshooting
information.
1. Problem verification:
- Turn the vehicle to the ON mode.
- Clear the DTC with the HDS.
- Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
- Check for DTCs with the HDS.
Is DTC 83-14 indicated?
YES
Go to CVT system troubleshooting.
NO
Intermittent failure, the system is OK at this time. Refer to intermittent
failures troubleshooting. If the
freeze data/on-board snapshot of this DTC is recorded, try to reproduce the
failure under the same
conditions with the Freeze data/on-board snapshot.
DTC TROUBLESHOOTING 86-11: F-CAN BUS-OFF MALFUNCTION
NOTE:
- Troubleshoot any PGM-FI DTCs first. - Refer to: How to Troubleshoot the
Fuel and Emissions
Systems, or How to Troubleshoot the CVT System (CVT)
- Before you troubleshoot, review the general troubleshooting information.
- This DTC is stored by communication failure between the F-CAN line and
the VSA modulator-control
unit. When DTC 86-11 is indicated, the F-CAN line has already returned to
normal. Check for loose
terminals and poor connections in the connectors. If the connectors are OK,
clear the DTC and follow this
troubleshooting.
1. Problem verification:
- Turn the vehicle to the ON mode.
- Clear the DTC with the HDS.
- Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
- Check for DTCs with the HDS.
Is DTC 86-11 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Refer to intermittent
failures troubleshooting.
2. Open wire check (F-CAN_L, F-CAN_H lines):
- Turn the vehicle to the OFF (LOCK) mode.
- Short the SCS line with the HDS.
NOTE: Always short the SCS line with the HDS before removing PCM connector(s).
- Disconnect the following connectors.
VSA modulator-control unit 21P connector
PCM connector A (51P)

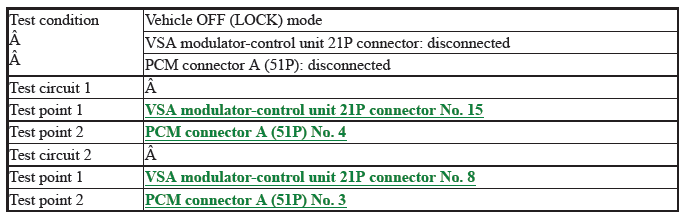

- Check for continuity between test points 1 and 2.
Is there continuity?
YES
The F-CAN_L and F-CAN_H wires are OK. Go to step 3.
NO
Repair an open in the F-CAN_L and/or F-CAN_H wires between the PCM and the
VSA modulator-control
unit.
3. VSA modulator-control unit check (update):
- Reconnect the following connectors.
VSA modulator-control unit 21P connector
PCM connector A (51P)
- Update the VSA modulator-control unit if it does not have the latest
software.
- Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
- Check for DTCs with the HDS.
Is DTC 86-11 indicated?
YES
Check for loose terminals in the VSA modulator-control unit 21P connector. If
the VSA modulator-control
unit was updated and the symptom/indication is still present, replace the VSA
modulator-control
unit.
NO
Troubleshooting is complete. If any other DTCs are indicated, go to the
indicated DTCs troubleshooting.
