Honda HR-V: DTC Troubleshooting 53-11: Motor Relay Stuck ON
NOTE: Before you troubleshoot, review the general troubleshooting
information.
.png)
1. Problem verification:
- Turn the vehicle to the ON mode.
- Clear the DTC with the HDS.
- Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
- Check for DTCs with the HDS.
.png)
Is DTC 53-11 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Refer to intermittent
failures troubleshooting.
2. Open wire check (GND line):
- Turn the vehicle to the OFF (LOCK) mode.
- Disconnect the following connector.
VSA modulator-control unit 21P connector

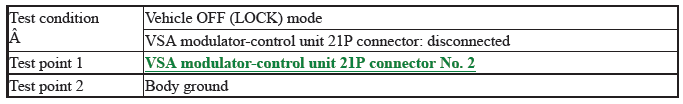

- Check for continuity between test points 1 and 2.
.png)
Is there continuity?
YES
The GND wire is OK. Go to step 3.
NO
Repair an open in the GND wire between the VSA modulator-control unit and
body ground (G202).
3. VSA modulator-control unit check (update):
- Reconnect the following connector.
VSA modulator-control unit 21P connector
- Update the VSA modulator-control unit if it does not have the latest
software.
- Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
- Check for DTCs with the HDS.
.png)
Is DTC 53-11 indicated?
YES
Check for loose terminals in the VSA modulator-control unit 21P connector. If
the VSA modulator-control
unit was updated and the symptom/indication is still present, replace the VSA
modulator-control
unit.
NO
Troubleshooting is complete. If any other DTCs are indicated, go to the
indicated DTCs troubleshooting.
