Honda HR-V: Climate Control System Description - Customize Function

Honda HR-V (2015-2021) Service Manual / HVAC / HVAC System - Testing & Troubleshooting / Description / Climate Control System Description - Customize Function

How to Change the Set Temperature

The climate control unit has a function to change the set temperature +2.7 ºF (+1.5 ºC) or -2.7 ºF (-1.5 ºC) degrees.

NOTE: Verify that the climate control and A/C system is working properly before enabling the customize function to offset the set temperature.

  • +2.7 ºF (+1.5 ºC) Change
    • Turn the vehicle to the ON mode.
    • Touch and hold the RECIRCULATION icon, then within 10 seconds touch and release the fan control icon five times. Release the RECIRCULATION icon.
  • -2.7 ºF (-1.5 ºC) Change
    • Turn the vehicle to the ON mode.
    • Touch and hold the RECIRCULATION icon, then within 10 seconds touch and release the fan control icon five times. Release the RECIRCULATION icon.
  • Changing back to 0 ºF (0 ºC)
    • Turn the vehicle to the ON mode.
    • Touch and hold the RECIRCULATION icon, then within 10 seconds touch and release the ON/OFF icon five times. Release the RECIRCULATION icon.
  • Indication of the change

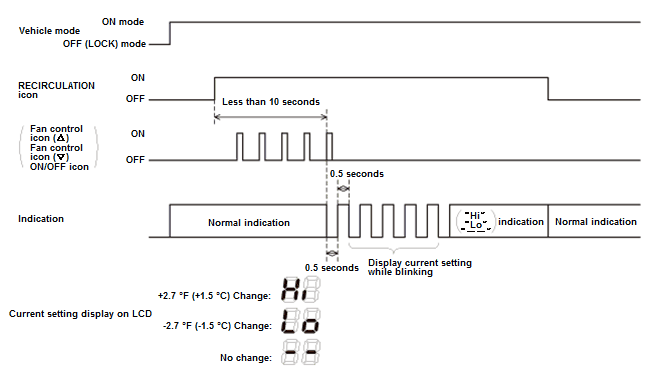

The climate control unit displays the following during each change.

HVAC System - Testing & Troubleshooting

CLIMATE CONTROL SYSTEM DESCRIPTION - HUMIDITY/IN-CAR TEMPERATURE SENSOR

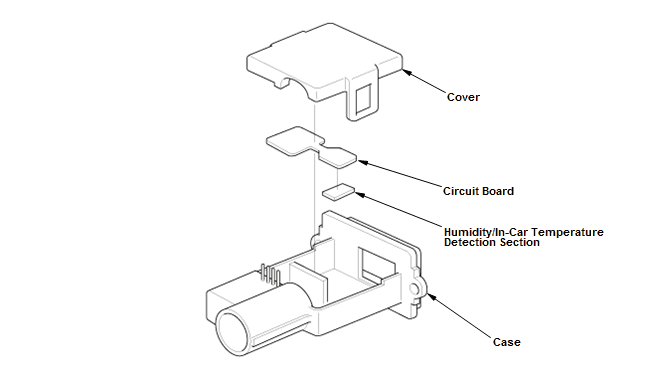

The humidity/in-car temperature sensor has a humidity sensor and an in-car temperature sensor. The climate control unit receives humidity information from the sensor to help control A/C compressor operation. When it is humid, the climate control unit operates the A/C compressor to prevent a windshield from being fogged. When the humidity is low enough, the climate control unit reduces the operating time for the A/C compressor. A flexible hose connects the sensor case to an aspirator on the HVAC box to improve the accuracy of temperature and humidity measurements.

NOTE: This illustration is an example only. Appearance and structure of the actual parts may vary depending on the model.

HVAC System - Testing & Troubleshooting

CLIMATE CONTROL SYSTEM DESCRIPTION - OVERVIEW

Climate Control

The climate control system transmits appropriate signals to each motor based on the information (sunlight, humidity, in-car temperature, outside air temperature) received from each sensor. See below for details.

  • Air Mix Control Motor: The system controls the temperature of air coming into the cabin by the air mix control motor adjusting the air mix damper position in order to change the mixing ratio of warm and cold air.
  • Mode Control Motor: The system directs the airflow to the specified area by the mode control motor switching the mode control damper position to the "VENT", "HEAT/VENT", "HEAT", "HEAT/DEF", or "DEF".
  • Recirculation Control Motor: The recirculation control motor switches the recirculation control damper position to the "FRESH" or "RECIRCULATION".
  • Blower Motor: The blower motor changes the air volume based on the voltage adjusted by the blower power transistor.

The climate control unit optimizes these controls in order to maintain passenger comfort.

Relationship Between Vent (Air Outlet) Temperature and Actual In-Car Temperature

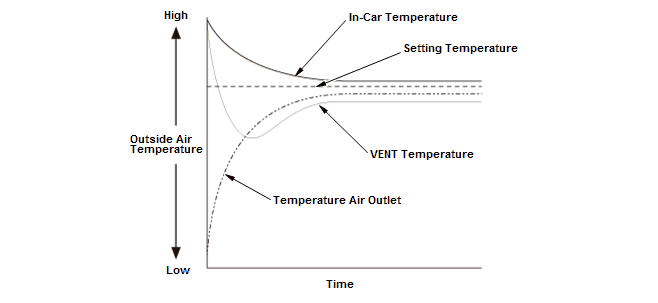

The climate control unit can automatically control vent temperature (air mix position), blower motor speed, blower intake (mode position), and A/C compressor operation to raise or lower the vehicle's interior temperature to match the customer's setting temperature. The actual vent outlet temperature largely depends upon the difference between the in-car temperature sensor reading and the customer's setting temperature.

HVAC System - Testing & Troubleshooting

Warm-Up Control

If heating is desired, and there is no available heat due to low engine coolant temperature, the climate control unit will slow the fan speed to avoid ventilating cold air. The climate control unit will gradually increase the fan speed as the engine coolant temperature rises.

The conditions that this control becomes effective are as follows:

  • Fan speed "AUTO"
  • Air outlet position "AUTO", "HEAT", "HEAT/DEF", or "DEF"
  • Outside air temperature is less than 68 ºF (20 ºC)
  • Engine coolant temperature sensor is normal.

Low Engine Coolant Temperature Control

When engine coolant temperature is low, the climate control system changes an air outlet position to the "DEF".

If engine coolant temperature gradually rises, the climate control system changes an air outlet position to the "HEAT/DEF". In addition, engine coolant temperature rises, to control the air outlet position by outlet air temperature.

Relationship Between Vehicle Speed and Blower Intake Mode

Because air resistance is different, the air volume is different in the "FRESH" mode and the "RECIRC" mode if the fan speed is constant. When a recirculation control damper is "FRESH", fresh air increases as vehicle speed rises. The climate control unit regulates fan speed to make the air volume of the "FRESH" mode the same as "RECIRC" mode.

A/C Control

To prevent the evaporator from freezing, the climate control unit switches the A/C compressor ON and OFF based on the evaporator temperature sensor value. While in the automatic operation mode, the climate control unit automatically switches the A/C compressor ON based on the evaporator temperature sensor value, as well as an ambient temperature and humidity.

MAX Control

When the temperature setting is adjusted to "MAX COOL (Lo)" or "MAX HOT (Hi)", the climate control unit overrides automatic control and defaults to the following operation:

  • MAX COOL
    "RECIRC", "VENT", blower fan maximum speed and A/C system ON.
  • MAX HOT
    "FRESH", "HEAT*", blower fan maximum speed and A/C system ON.*: If the sensor information indicates that the windshield may fog, the air outlet switches to "HEAT/DEF" automatically.

CLIMATE CONTROL SYSTEM DESCRIPTION - SUNLIGHT SENSOR

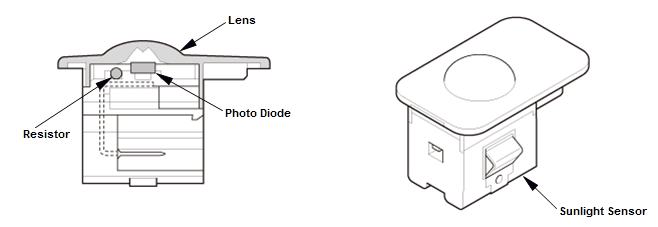

The sunlight sensor is attached to the upper face of the instrument panel. The sunlight sensor uses a photodiode-type optical sensor which changes current in proportion to the sunlight intensity. The climate control unit reads the voltage fluctuation of the sunlight sensor.

NOTE: This illustration is an example only. Appearance and structure of the actual parts may vary depending on the model.
