Honda HR-V: Symptom Troubleshooting

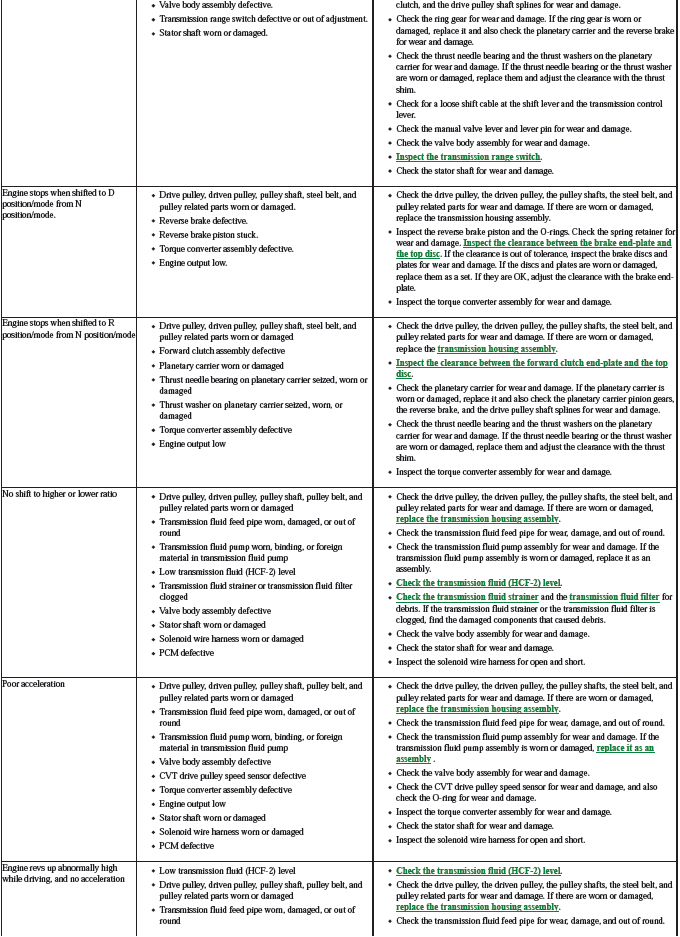

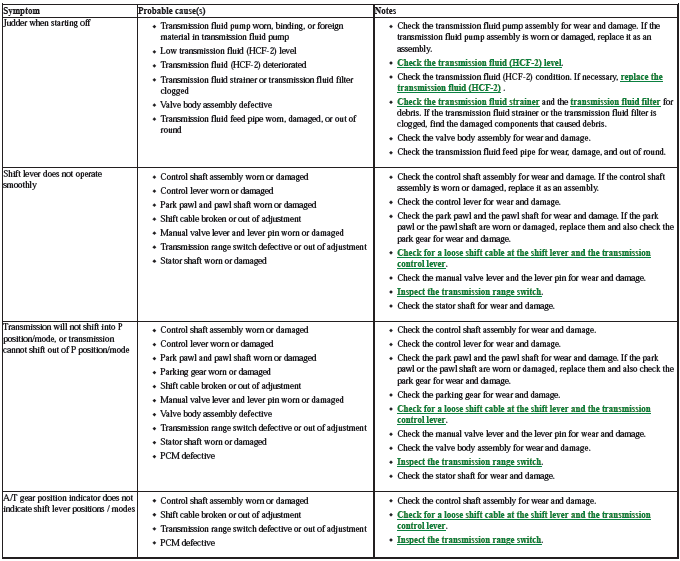

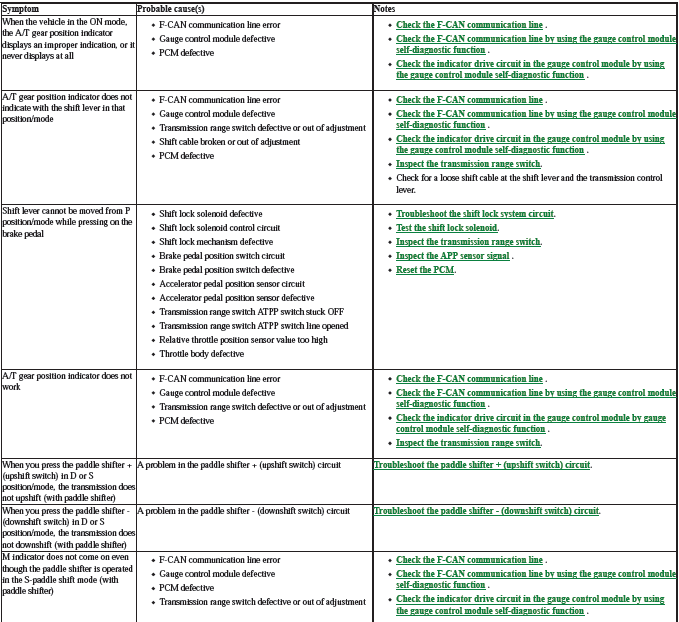

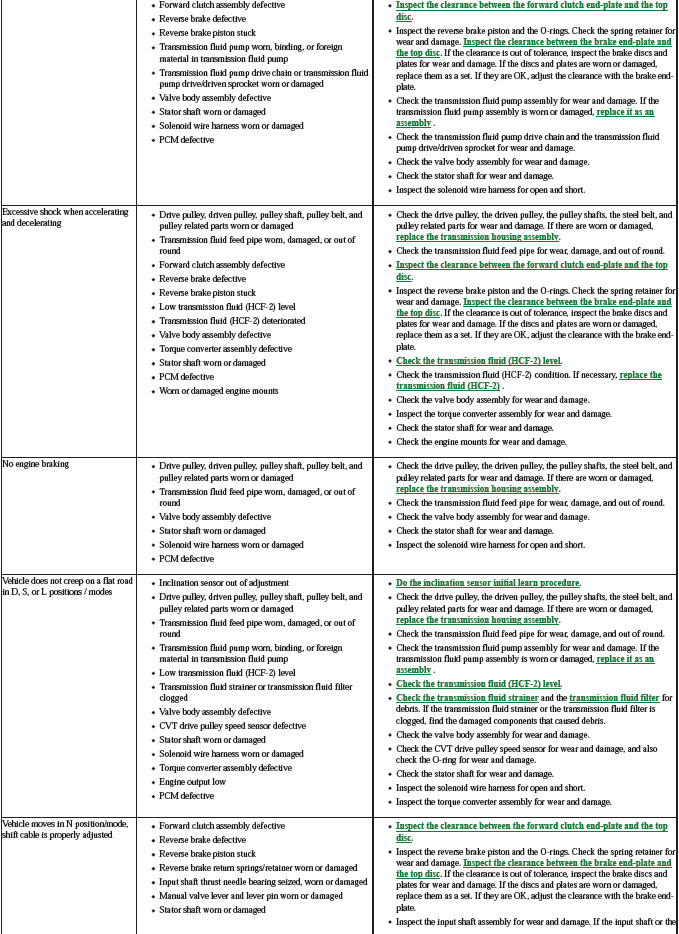

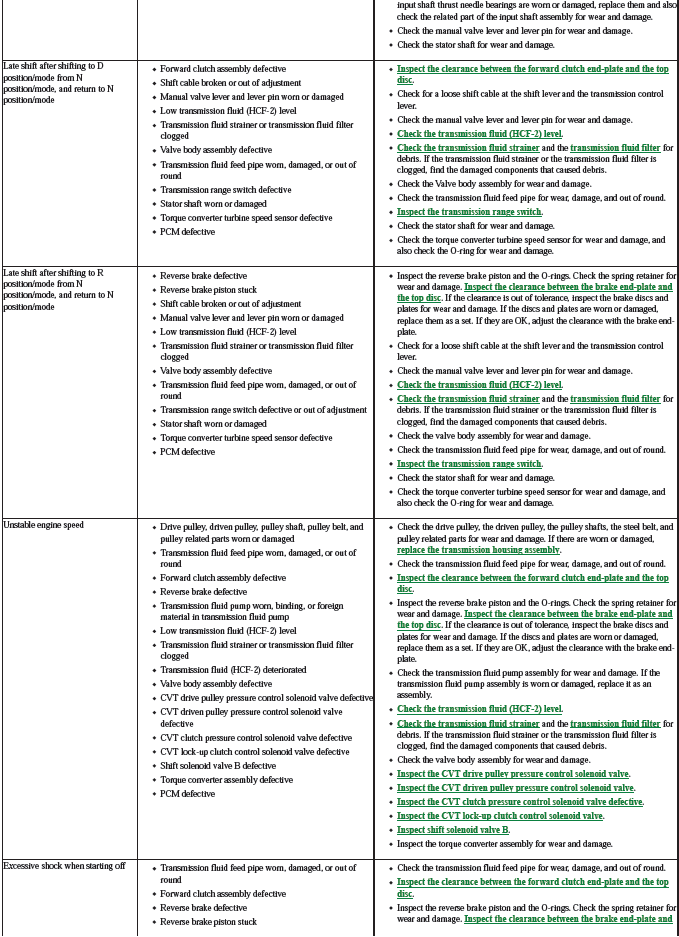

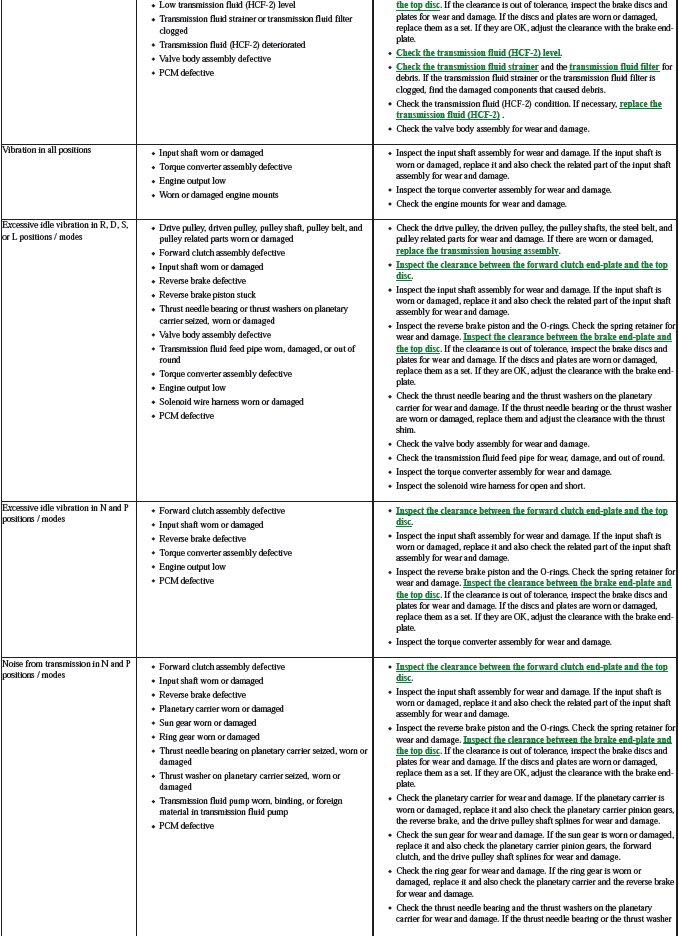

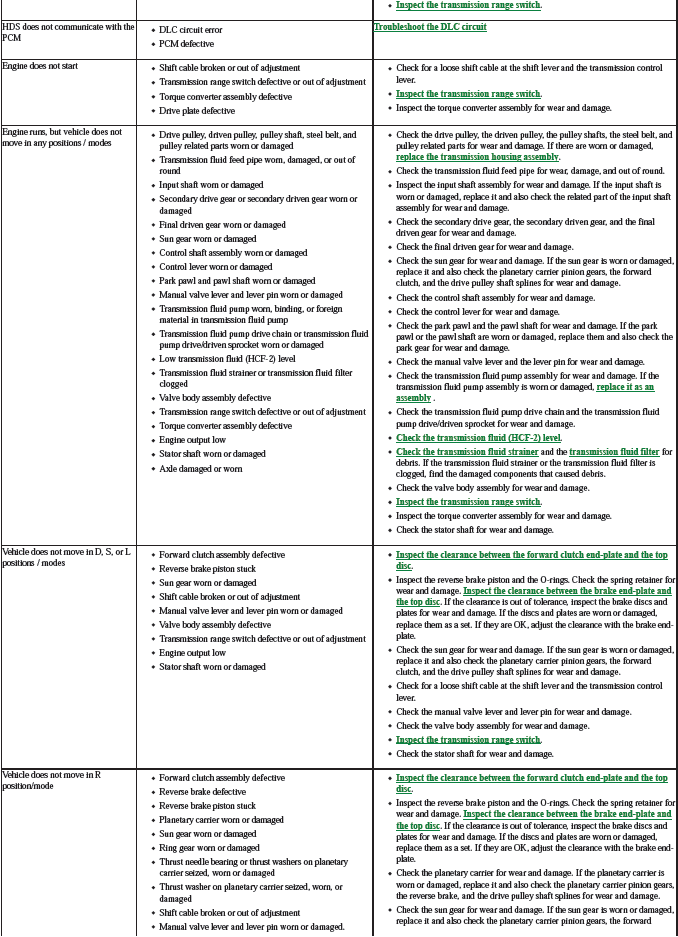

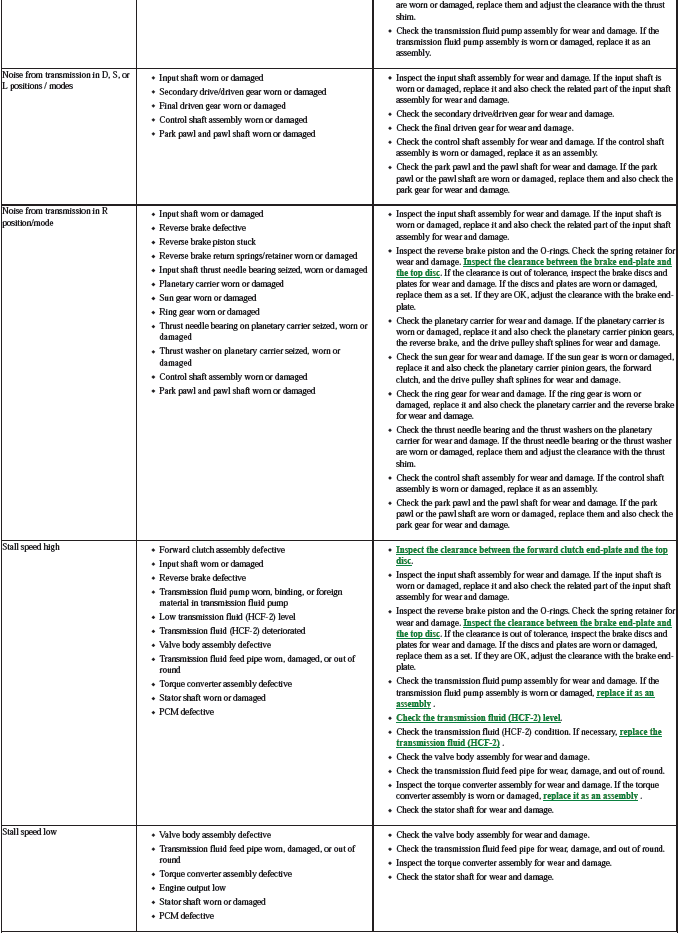

CVT SYMPTOM TROUBLESHOOTING INDEX (CVT)
NOTE: Do an all DTC check with the HDS, and troubleshoot any DTCs first
before following the repair procedures listed in the index.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
CIRCUIT DIAGRAM
CVT ELECTRONIC CONTROL SYSTEM CIRCUIT DIAGRAM (CVT)
.png)

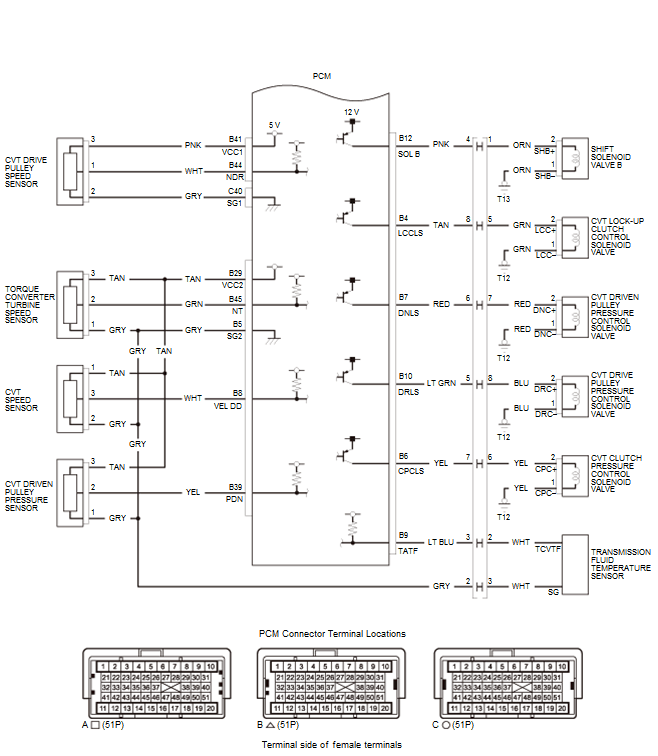

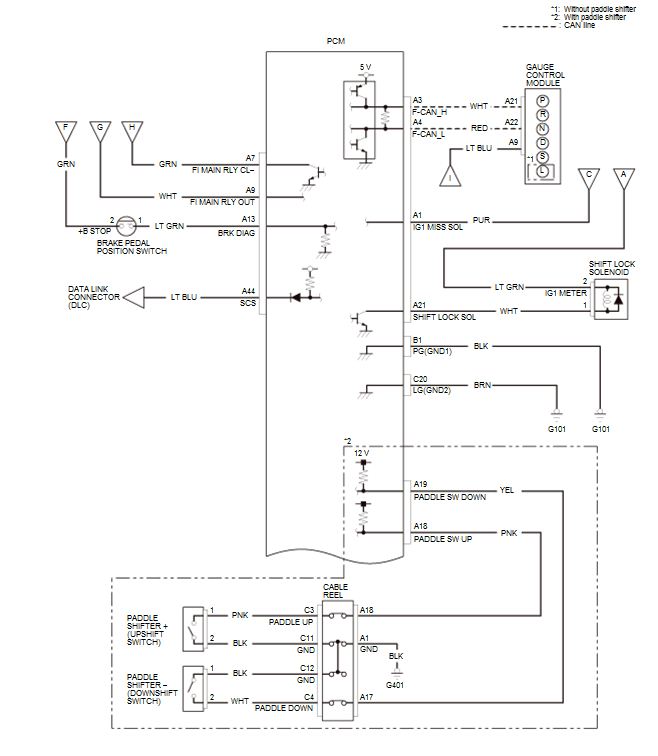

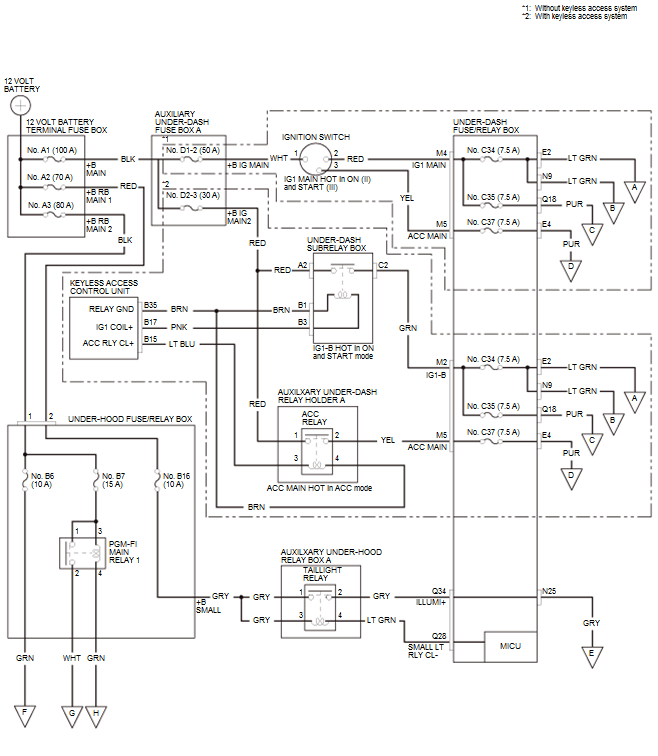

Fig. 27: CVT Electronic Control System Circuit Diagram (1 Of 5)
.png)

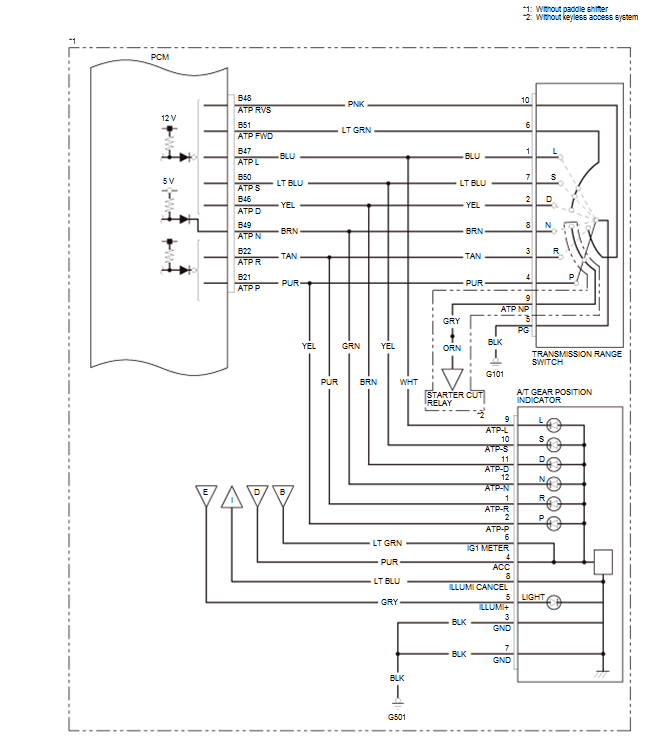

Fig. 28: CVT Electronic Control System Circuit Diagram (2 Of 5)
.png)

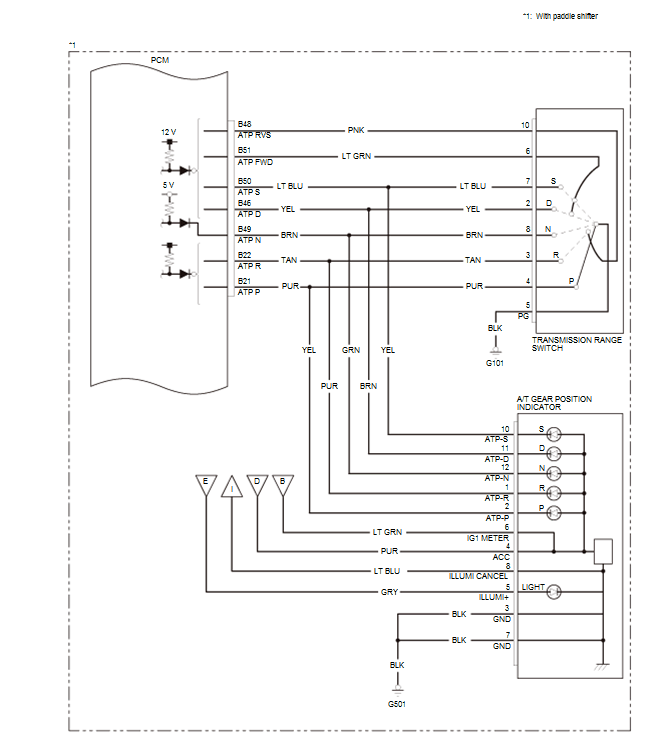

Fig. 29: CVT Electronic Control System Circuit Diagram (3 Of 5)
.png)
Fig. 30: CVT Electronic Control System Circuit Diagram (4 Of 5)
.png)
Fig. 31: CVT Electronic Control System Circuit Diagram (5 Of 5)
