Honda HR-V: Bleeding
CONVENTIONAL BRAKE SYSTEM BLEEDING
Bleeding

Do not spill brake fluid on the vehicle; it may damage the paint. If brake
fluid does contact the paint, wash it off
immediately with water.
NOTE:
- Do not reuse the drained brake fluid. Use only clean genuine Honda DOT 3
Brake Fluid from an
unopened container. Using a non-Honda brake fluid can cause corrosion and
shorten the life of the
system.
- Make sure no dirt or other foreign matter gets in the brake fluid.
- The reservoir connected to the master cylinder must be at the MAX
(upper) level mark at the start of the
bleeding procedure and checked after bleeding each wheel. Add fluid as
required.
- There are three different methods used for bleeding brake systems. The
method shown here is the
preferred manual method for removing the air from the system. For pressure
or vacuum bleeding, refer to
tool manufacturer's instructions included with the tool.
1. Vehicle - Lift
2. Brake System - Bleed
.png)

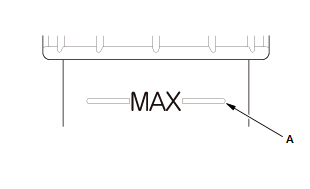

- Make sure the brake fluid level in reservoir is at the MAX
(upper) level line (A).
.png)

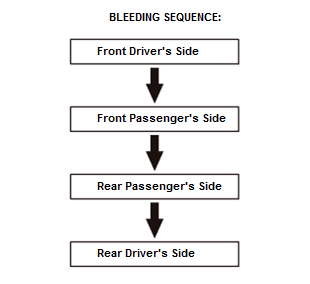

- Bleed the brake system in the sequence shown.
.png)

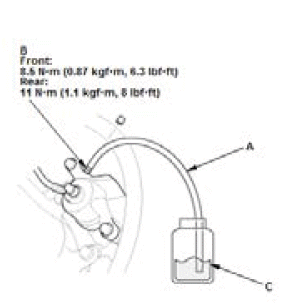

- Attach a length of clear drain tube (A) to the bleed screw (B)
- Submerge the other end of the drain tube into a clear plastic catch
bottle of
brake fluid (C)
- Have an assistant slowly pump the brake pedal several times then apply
steady
continuous pressure
- Loosen the bleed screw slowly to bleed the fluid into the plastic catch
bottle.
The brake pedal will travel toward the floor as the fluid is bled from the
system
- When the brake pedal reaches the floor, have the assistant hold the
pedal in
that position, then tighten the bleed screw. The brake pedal can now be
released
- Check and refill the master cylinder reservoir to the MAX (upper) level
line.
Be sure to reinstall the master cylinder reservoir cap
- Repeat steps 5 thru 8 until the brake fluid in the clear drain tube
appears fresh
and there are no air bubbles in the fluid
- Repeat this procedure for each brake in the bleeding sequence.
COMPONENT LOCATION INDEX

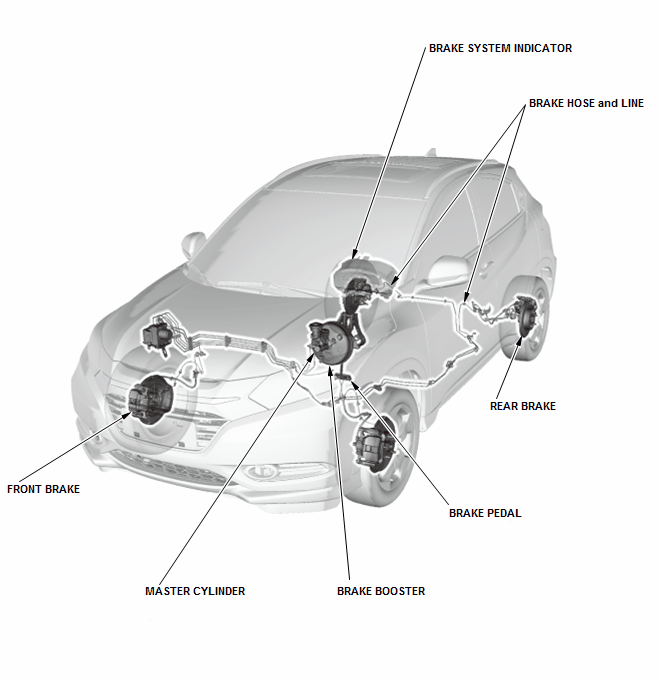

CONVENTIONAL BRAKE COMPONENT LOCATION INDEX
.png)
