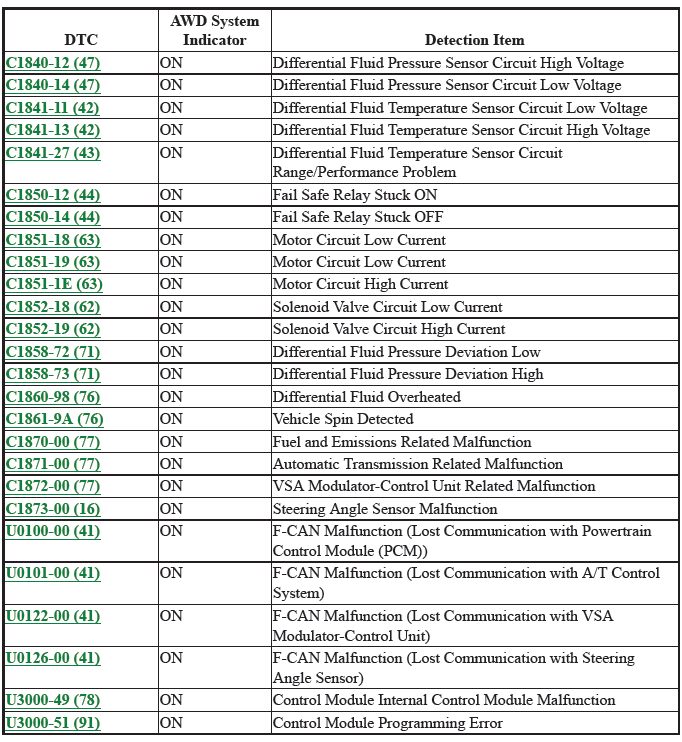

Honda HR-V: AWD System DTC Troubleshooting Index (AWD)
.png)
TESTING
AWD CONTROL UNIT INITIALIZATION (AWD)
Procedure
NOTE:
- Whenever the AWD control unit is replaced, it must be initialized.
- Park the vehicle on a flat and level surface.
1. HDS - Connect
2. AWD Control Unit - Initialization
- Select the ADJUSTMENT in the AWD WITH INTELLIGENT CONTROL with the HDS
- Select the ECU REPLACEMENT in the ADJUSTMENT with the HDS.NOTE : See the
HDS Help
menu for specific instructions.
AWD CONTROL UNIT UPDATE (AWD)

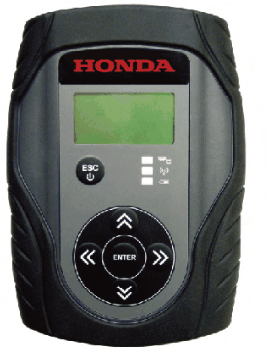

Special Tools Required
MVCI unit with
the latest control
module (CM)
update software
installed
.png)
Procedure
1. AWD Control Unit - Update
NOTE: Check any official service website for more information about updating
the MVCI and control
units.
LONGITUDINAL ACCELERATION SENSOR LEARN (AWD)
Procedure
NOTE: Whenever the VSA modulator-control unit is replaced, the longitudinal
acceleration sensor learn
procedure must be done.
1. HDS - Connect
2. Longitudinal Acceleration Sensor - Learn
- Select the ADJUSTMENT in the AWD WITH INTELLIGENT CONTROL with the HDS
- Select the G SENSOR LEARNING in the ADJUSTMENT with the HDS.NOTE : See
the HDS
Help menu for specific instructions.
