Honda HR-V: Immobilizer-Keyless Control Unit Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Security System Keyless Entry System - Service Information / Immobilizer-Keyless Control Unit Removal and Installation

Removal & Installation

NOTE:

  • SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.
  • If the immobilizer-keyless control unit is replaced, do the immobilizer-keyless control unit registration. If the original immobilizer-keyless control unit is installed, confirm that all systems work properly.

1. Column Cover - Remove

2. Immobilizer-Keyless Control Unit - Remove

Security System Keyless Entry System - Service Information

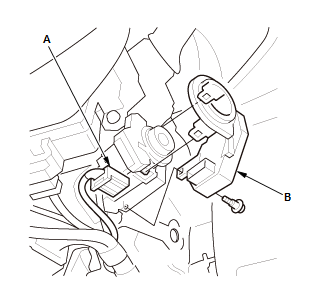

  1. Disconnect the connector (A)
  2. Remove the immobilizer-keyless control unit (B).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

4. Immobilizer-Keyless Control Unit - Registration
