Honda HR-V: Audio Check - Navigation System Diagnostic Mode

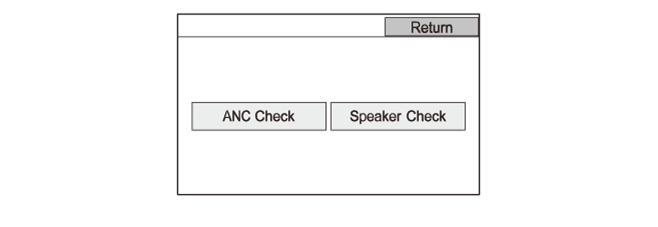

These screens allow you to troubleshoot the audio function. The ANC Check is
not supported in this model.
.png)
Speaker Check
NOTE:
- Make sure the audio system is off before this diagnosis.
- While doing the diagnosis, the fader and the balance positions are set
to the center.
This diagnosis checks the audio speakers individually.

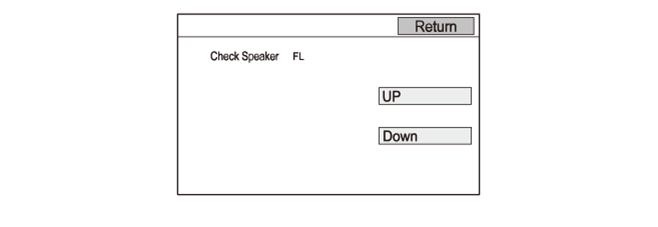

Select the UP icon or the Down icon to check speakers. A tone should sound from
the speaker.

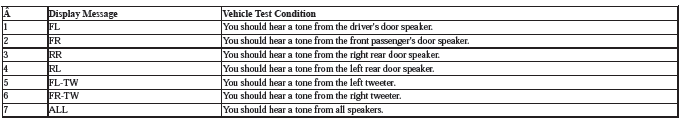

Each time you select the Up icon, the system checks the speakers in this
order: 1→2→3→4→5→6→7→1
Each time you select the Down icon, the system checks the speakers in this
order: 1→7→6→5→4→3→2→1
.png)
.png)
Guideline Setup

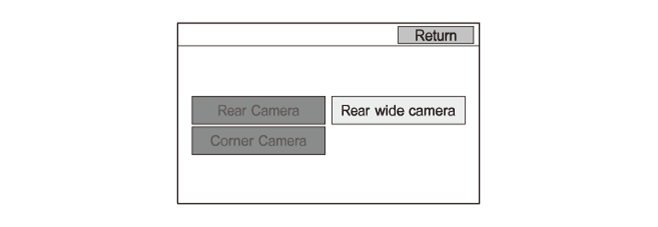

These screens adjusts the rearview camera image guide lines. Select the Rear
Wide Camera icon to adjust the guide lines.
.png)
Rear Wide Camera

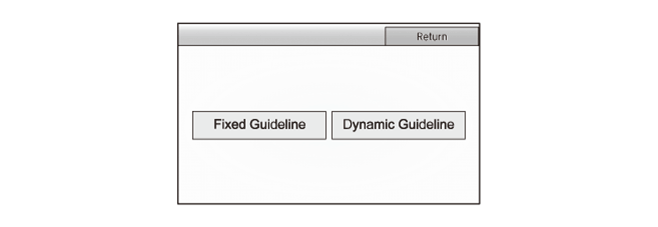

Select the item you want to adjust.
.png)

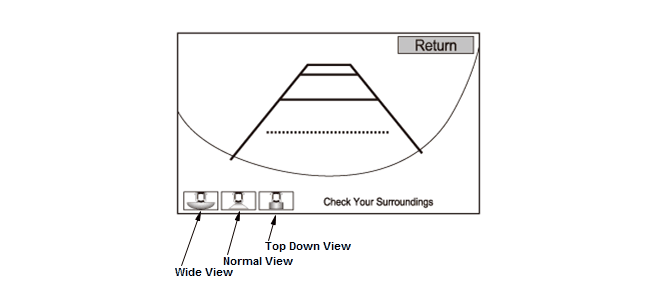

Select the view mode icons (Wide View, Normal View, Top Down View) you want
to adjust.
NOTE: The Top Down View cannot be selected when the dynamic guideline is
selected.
.png)

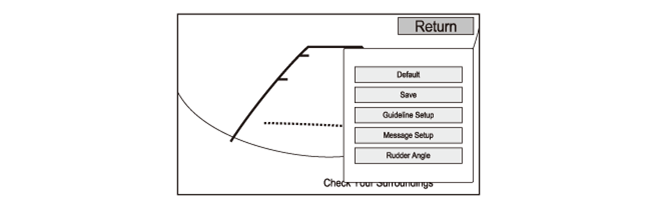

Press the MENU button to display the sub menu.
- Default: All guidelines can be reset to the factory specification.
- Save: Reflects the result of the guideline adjustment.
- Guideline Setup: Adjust the guideline.
- Message Setup: Adjust the caution message position.
- Rudder Angle (Dynamic Guideline): The steering angle which adjusts the
position of the chosen guideline.
.png)

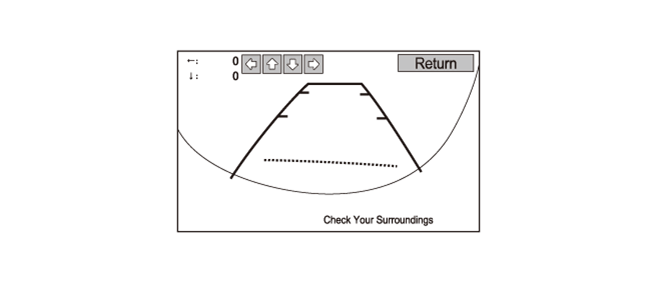

Guideline Setup
Touch each arrow icon to move the guidelines up/down or left/right. The
screen displays the information about the adjusted distance and its direction.
.png)

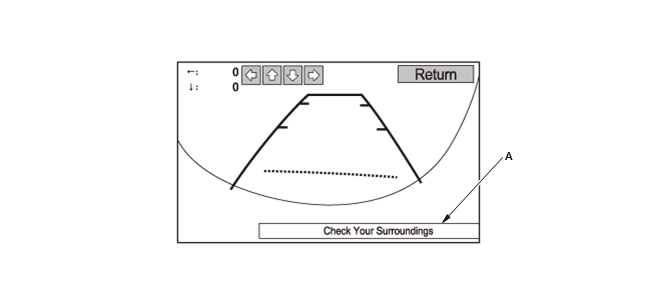

Message Setup
Touch each arrow to move the message (A) up/down or left/right.
.png)

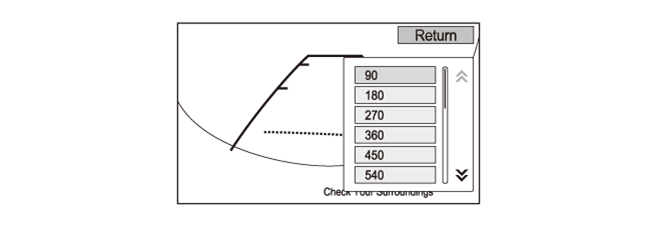

Rudder Angle
Select different steering angles (90 º - Lock end) from the sub menu. After
selecting, do the Guideline Adjustment. The adjustment method for the guideline
locations is the same as
the Fixed Guideline.
.png)
