Honda HR-V: Audio Check - Audio System Diagnostic Mode

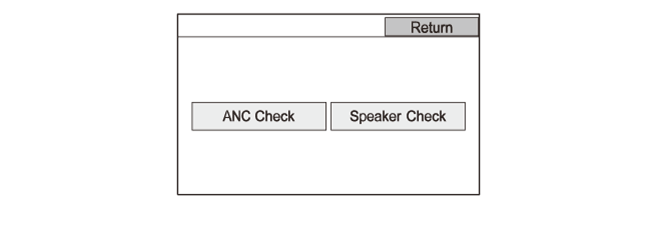

These screens allow you to troubleshoot the audio function.

  • ANC Check (Not supported)
  • Speaker Check (B)

Audio Visual Systems - Testing & Troubleshooting

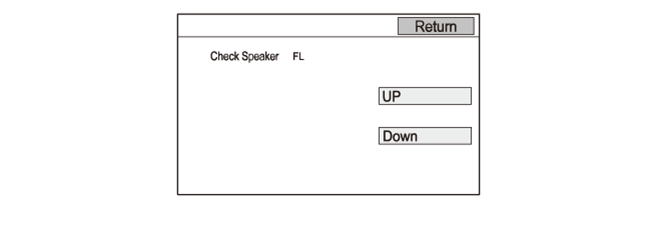

Speaker Check

NOTE:

  • Make sure the audio system is off before this diagnosis.
  • While doing the diagnosis, the fader and the balance positions are set to the center.

This diagnosis checks the audio speakers individually.

Select the UP icon or the Down icon to check speakers. A tone should sound from the speaker.

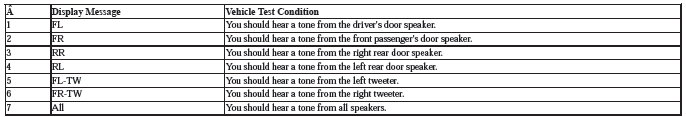

When you select Up icon, the system checks the speakers in this order: 1→2→3→4→5→6→7→1

When you select Down icon, the system checks the speakers in this order: 1→7→6→5→4→3→2→1

Audio Visual Systems - Testing & Troubleshooting

Audio Visual Systems - Testing & Troubleshooting
