Honda HR-V: Guideline Setup - Audio System Diagnostic Mode

These screens adjusts the rearview camera image guide lines.

  • Rear Camera (Not available in this model (grayed out) )
  • Corner Camera (Not available in this model (grayed out) )

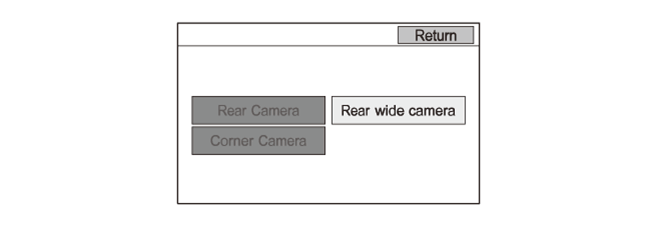

  • Rear wide camera

Audio Visual Systems - Testing & Troubleshooting

Rear Wide Camera

Select the item you want to adjust.

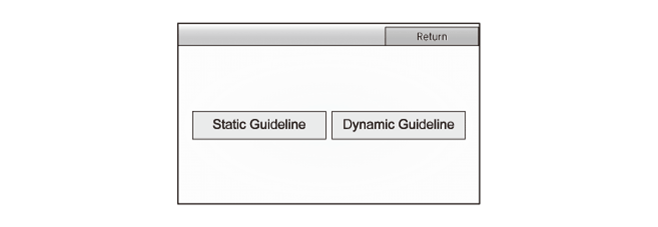

  • Static Guideline
  • Dynamic Guideline

Audio Visual Systems - Testing & Troubleshooting

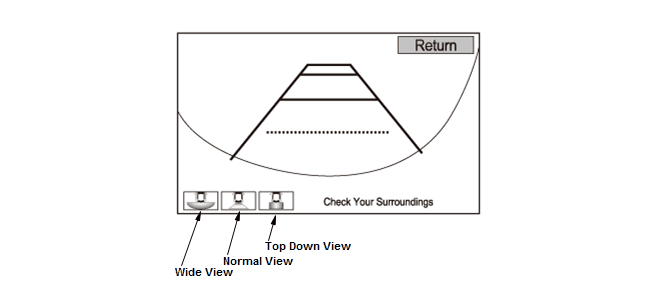

Select the view mode icons (Wide View, Normal View, Top Down View) you want to adjust.

NOTE: The Top Down View cannot be selected when the dynamic guideline is selected.

Audio Visual Systems - Testing & Troubleshooting

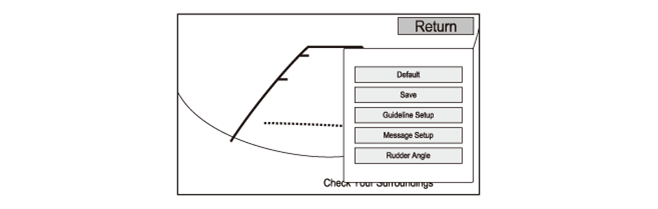

Press the MENU button to display the sub menu.

  • Default: All guidelines can be reset to the factory specification.
  • Save: Reflects the result of the guideline adjustment.
  • Guideline Setup: Adjust the guideline.
  • Message Setup: Adjust the caution message position.
  • Rudder Angle: The steering angle which adjusts the position of the chosen guideline.

Audio Visual Systems - Testing & Troubleshooting

Guideline Setup

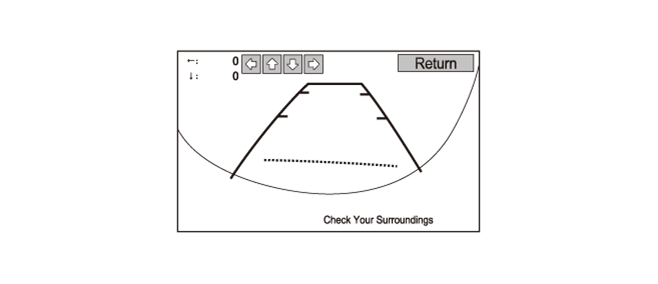

Touch each arrow icon to move the guidelines up/down or left/right. The screen displays the information about the adjusted distance and its direction.

Audio Visual Systems - Testing & Troubleshooting

Message Setup

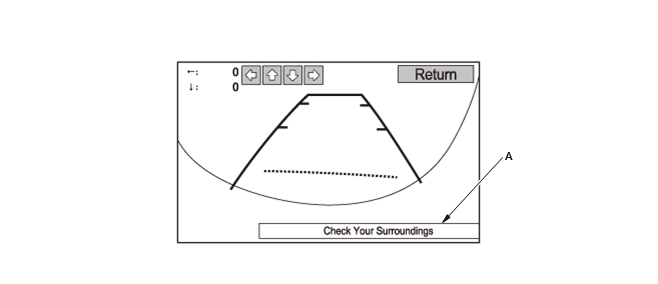

Touch each arrow to move the message (A) up/down or left/right.

Audio Visual Systems - Testing & Troubleshooting

Rudder Angle

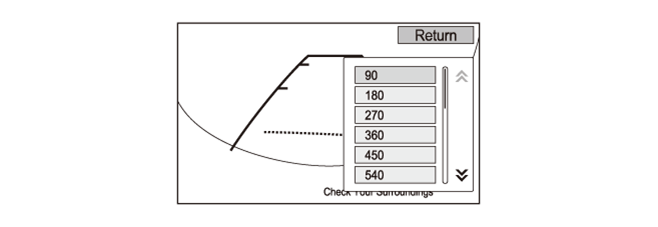

Select different steering angles (90 º - Lock end) from the sub menu. After selecting, do the Guideline Adjustment. The adjustment method for the guideline locations is the same as the Fixed Guideline.

Audio Visual Systems - Testing & Troubleshooting
