Honda HR-V: Wiper/Washer Switch Removal, Installation, and Test

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Exterior Trim - Service Information / Wiper/Washer Switch Removal, Installation, and Test

Removal & Installation

NOTE : SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. Column Cover - Remove

2. Wiper/Washer Switch - Remove

Exterior Trim - Service Information

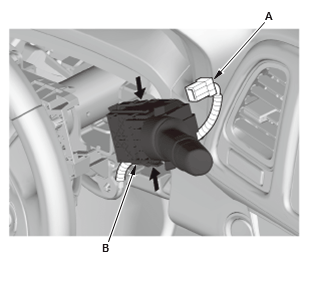

  1. Disconnect the connector (A)
  2. Remove the wiper/washer switch (B) by pressing the tabs.

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

Test

1. Wiper/Washer Switch - Test

Exterior Trim - Service Information

Windshield

Exterior Trim - Service Information

Rear window

Exterior Trim - Service Information

  1. Inspect the connector terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals are OK, go to step 2.

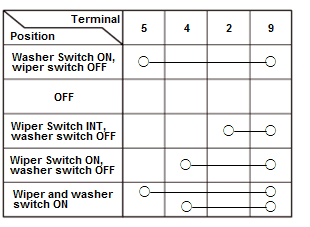

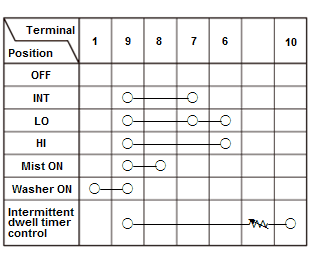

  2. Check for continuity between the terminals in each switch position according to the tables

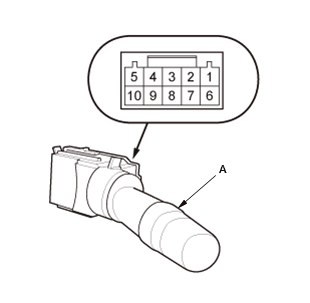

  3. If the continuity is not as specified, replace the wiper/washer switch (A).
