Honda HR-V: Rear Seat Disassembly And Reassembly

Disassembly & Reassembly

1. Rear Seat - Remove

2. Rear Seat - Disassemble

Seats - Testing & Troubleshooting

  1. Remove the head restraint

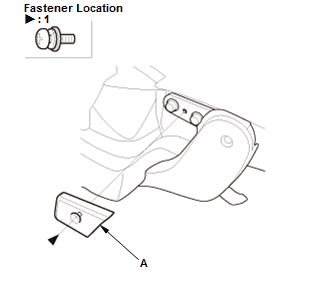

  2. Remove the recline upper cover (A).

    NOTE : The illustration shows a left rear seat. Do the same procedure for the right rear seat.

Seats - Testing & Troubleshooting

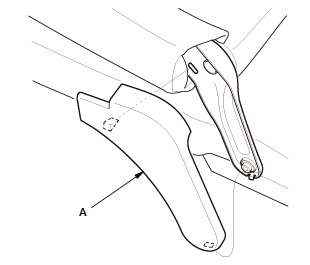

  1. Remove the center cover (A).

Seats - Testing & Troubleshooting

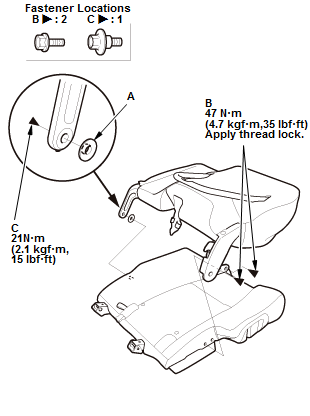

Fig. 1: Rear Seat Back Attaching Bolt Torque Specifications

  1. Remove the rear seat cushion (A) and rear seat-back (B).

3. All Removed Parts - Reassemble

Seats - Testing & Troubleshooting

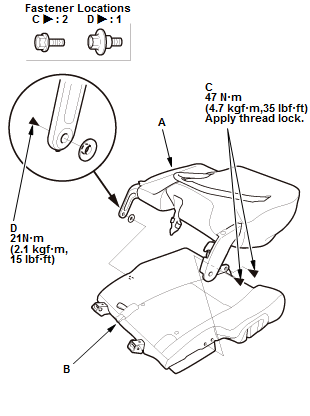

Fig. 2: Rear Seat Back Attaching Bolt Torque Specifications

  1. Reassemble the parts in the reverse order of removal.

    NOTE :

    • If necessary, replace the bushing and washer (A).
    • Apply medium strength liquid thread lock to bolt before installation.
