Honda HR-V: Rear Seat-Back Disassembly And Reassembly
Disassembly & Reassembly
1. Rear Seat-Back - Remove
2. Rear Seat-Back Latch - Remove
3. Rear Seat Armrest - Remove
4. Rear Seat-Back Pad/Frame - Remove
.png)
- Remove the tether anchor cover (A) with a flat-tip screwdriver. (for
some
models).
NOTE : The illustration shows a left rear seat. Do the same procedure for
the right rear seat.
.png)

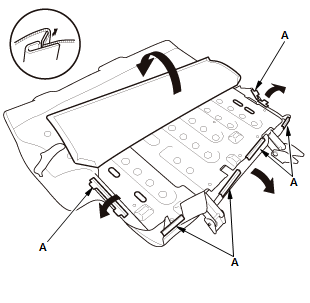

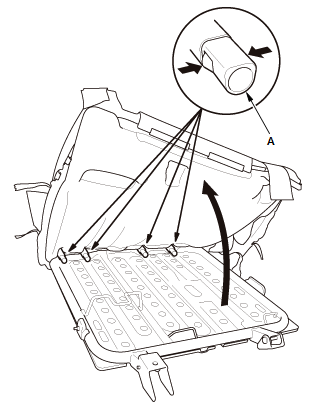

- Remove the hooks (A).
.png)

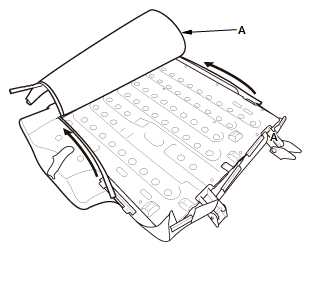

- Unzip the rear seat-back cover (A).
.png)
- Remove the head restraint guides (A).
.png)

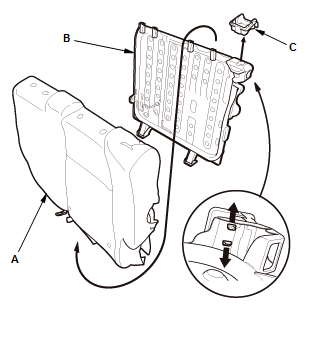

- Separate the rear seat-back pad (A) and the rear seat-back
frame (B)
- If necessary, remove the lock lever inner cover (C).
5. Rear Seat-Back Cover - Remove
Left Side (TYPE1)
.png)
Left Side (TYPE2)
.png)
Right Side (TYPE1)
.png)
Right Side (TYPE2)
.png)

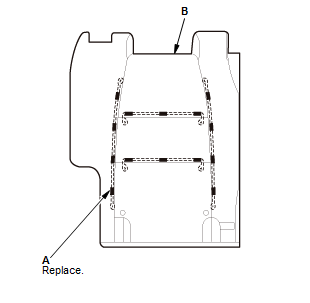

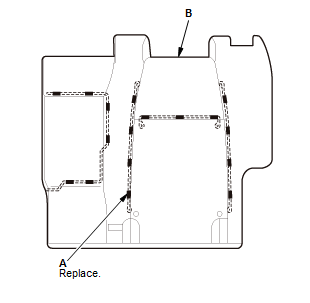

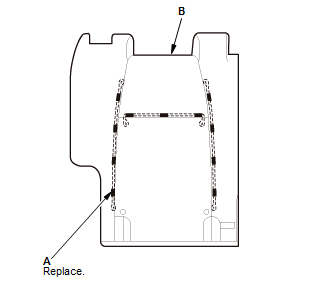

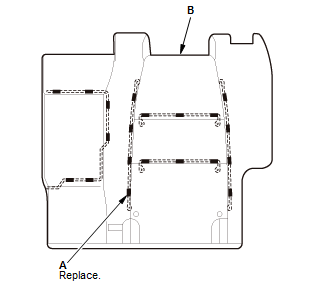

- Remove the upholstery rings (A) securing the rear
seat-back cover (B).

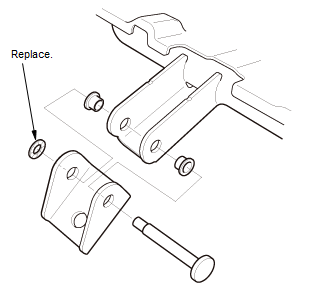

6. Rear Seat-Back hinge - Remove
.png)
7. All Removed Parts - Reassemble
.png)
.png)
- Reassemble the parts in the reverse order of removal.
NOTE :

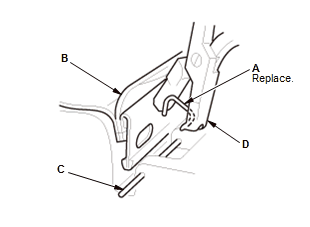

- Replace all of the upholstery rings (A) fastening the rear seatback
cover (B) to the pad wires (C) with new ones using
commercially available upholstery ring pliers (D).

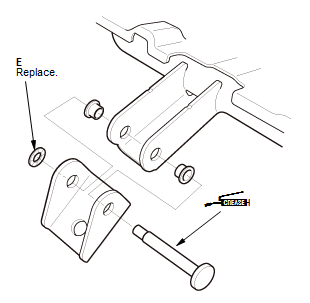

- Replace the push nut (E) with new one.
- Apply multipurpose grease to each location indicated by the
arrows.
SEAT HEATERS ELECTRONIC WIRING DIAGRAM
Refer to: Power Seats
COMPONENT LOCATION INDEX

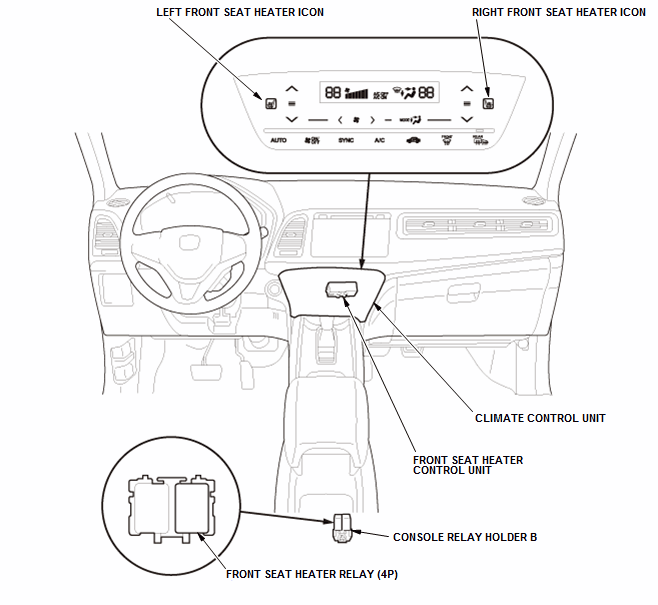

SEAT HEATERS COMPONENT LOCATION INDEX

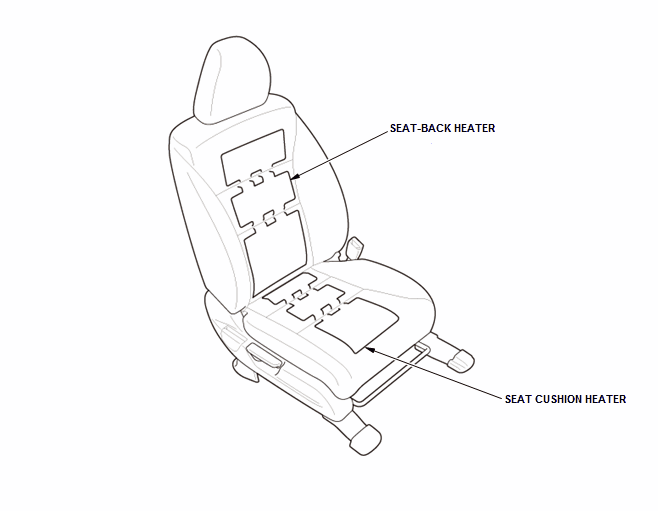

Driver's Seat
.png)

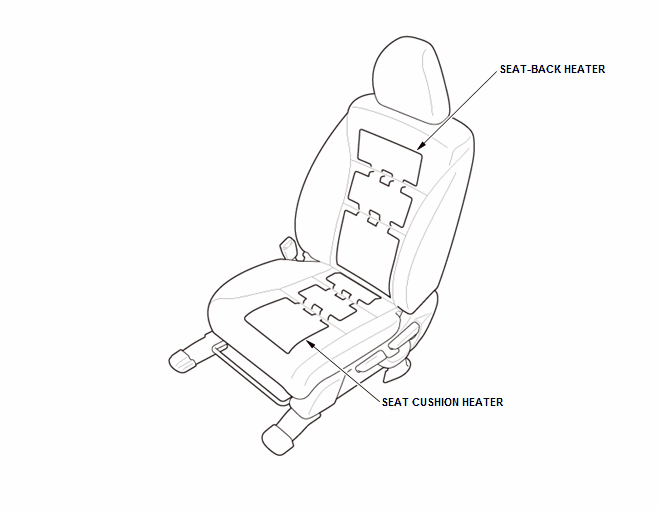

Front Passenger's Seat
.png)
.png)

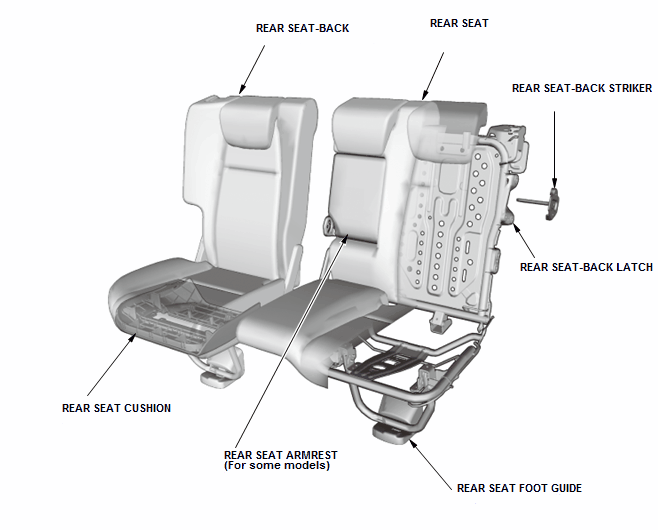

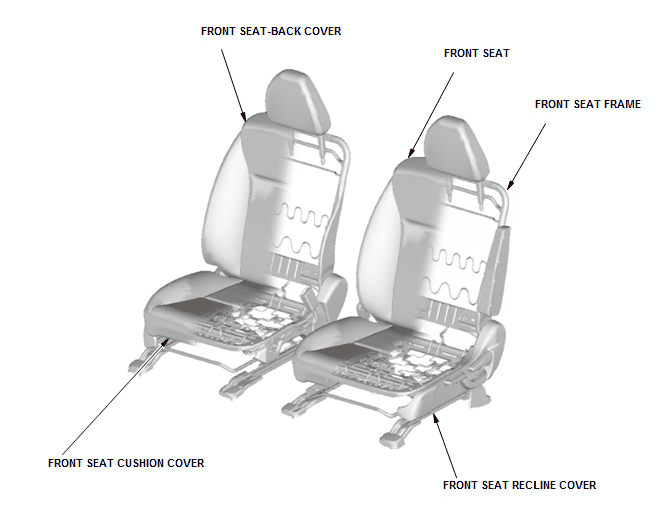

SEATS COMPONENT LOCATION INDEX
