Honda HR-V: Propeller Shaft Removal and Installation (AWD)

Honda HR-V (2015-2021) Service Manual / Steering / Steering System - Service Information / Propeller Shaft Removal and Installation (AWD)

Removal & Installation

1. Vehicle - Lift

2. Fuel Tank Gard Pipe - Remove

3. Front center member - Remove

Steering System - Service Information

4. Propeller Shaft - Remove

Steering System - Service Information

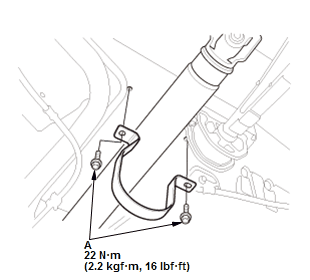

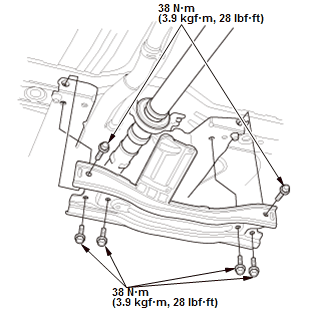

  1. Remove the propeller shaft protector (A).

Steering System - Service Information

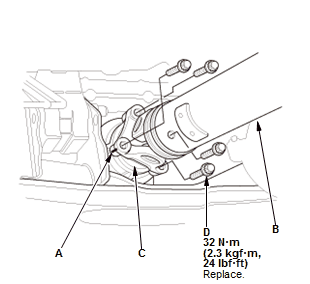

  1. Make a reference mark (A) across the No. 1 propeller shaft (B) and the transfer companion flange (C)
  2. Remove the No. 1 propeller shaft flange bolts (D).

Steering System - Service Information

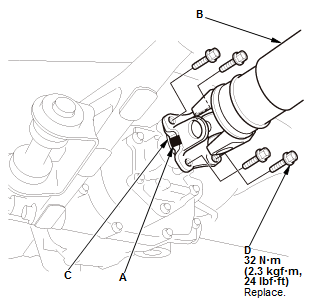

  1. Make a reference mark (A) across the No. 2 propeller shaft (B) and the rear differential companion flange (C)
  2. Remove the No. 2 propeller shaft flange bolts (D).

Steering System - Service Information

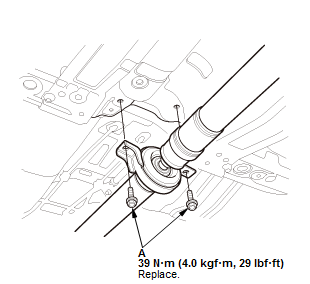

  1. Remove the center support bearing mounting bolts (A).

5. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

    NOTE: Set the No. 1 propeller shaft to the transfer companion flange by aligning the reference mark you made during the removal procedure.

6. Test Drive - Check

NOTE: Test drive the vehicle on the road, not on the lift.
