REMOVAL & INSTALLATION

ELECTRIC PARKING BRAKE ACTUATOR REMOVAL AND INSTALLATION

Removal and Installation

NOTE: Unless otherwise indicated, illustrations used in the procedure are for 2WD model.

1. Vehicle - Lift

2. Rear Wheel - Remove

3. Electric Parking Brake Actuator - Remove

Parking Brake System - Service Information

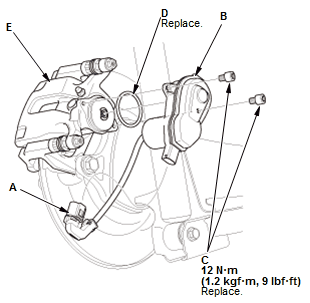

  1. Disconnect the connector (A).

    NOTE: If the connector lock tab is difficult to release, push in on the connector body before pushing on the release lock.

  2. Remove the electric parking brake actuator (B).

    NOTE: Use new mounting screws (C) during reassembly.

  3. Remove the O-ring (D) from the caliper body (E).

    NOTE:

    • Replace the O-ring whenever the electric parking brake actuator is removed.
    • When installing the actuator, make sure there is no foreign matter on the mating surfaces and the O-rings before installing.

4. All Removed Parts - Install

  1. Install the electric parking brake actuator with a new O-ring and new screws in the reverse order of removal.

5. Parking Brake - Adjust

  1. Turn the vehicle to the ON mode
  2. Pull the electric parking brake switch to apply the parking brake, then press the brake pedal and push the electric parking brake switch to release the parking brake
  3. Turn the vehicle to the OFF (LOCK) mode.

ELECTRIC PARKING BRAKE CONTROL UNIT REMOVAL AND INSTALLATION

Removal

1. Rear Side Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

2. Rear Seat Belt Assembly - Remove (Right Side)

Parking Brake System - Service Information

3. Electric Parking Brake Control Unit - Remove

Parking Brake System - Service Information

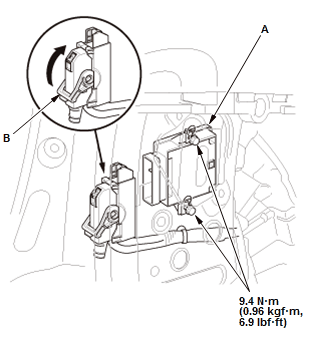

  1. Disconnect the electric parking brake control unit connector (A) by pushing the lock (B) and pulling down the lever (C); the connector disconnects itself
  2. Loosen the bolts (D), then lift and remove the electric parking brake control unit (E).

Installation

1. Electric Parking Brake Control Unit - Install

Parking Brake System - Service Information

  1. Install the electric parking brake control unit (A).
  2. Pull up the lever (B) of the electric parking brake control unit connector, then confirm the connector is fully seated.

2. Rear Seat Belt Assembly - Install (Right Side)

Parking Brake System - Service Information

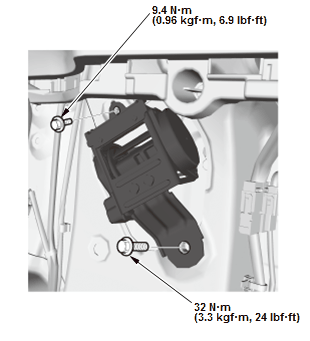

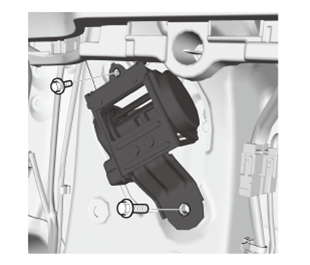

Fig. 1: Rear Seat Belt Assembly With Torque Specifications

3. Rear Side Trim Panel - Install - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

4. Longitudinal Acceleration Sensor Neutral Position - Memorize

ELECTRIC PARKING BRAKE SWITCH REMOVAL, INSTALLATION, AND TEST

Removal and Installation

1. Center Console Panel - Remove

2. Electric Parking Brake/Automatic Brake Hold Switch - Remove

Parking Brake System - Service Information

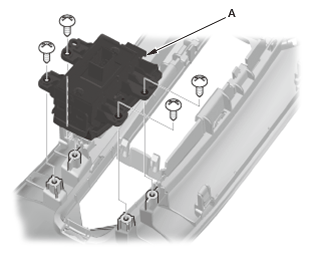

  1. Remove the electric parking brake/automatic brake hold switch (A)

3. All Removed Parts - Install

  1. Install the electric parking brake/automatic brake hold switch in the reverse order of removal.

Test

1. Electric Parking Brake Switch - Test

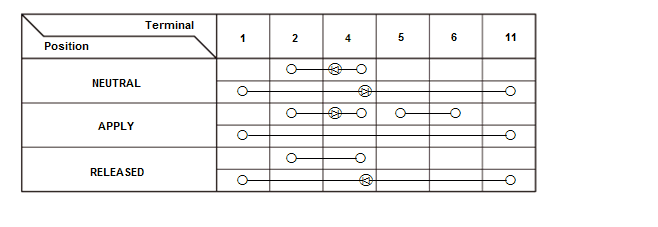

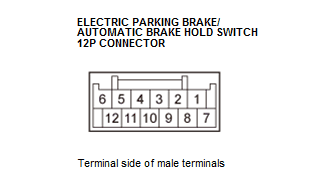

  1. On the switch side, check for continuity between the connector terminals in each switch position according to the table.

Parking Brake System - Service Information

Parking Brake System - Service Information

2. If the switch does not work as described in the table, replace the switch.
