Honda HR-V: DTC Troubleshooting, Testing

DTC TROUBLESHOOTING

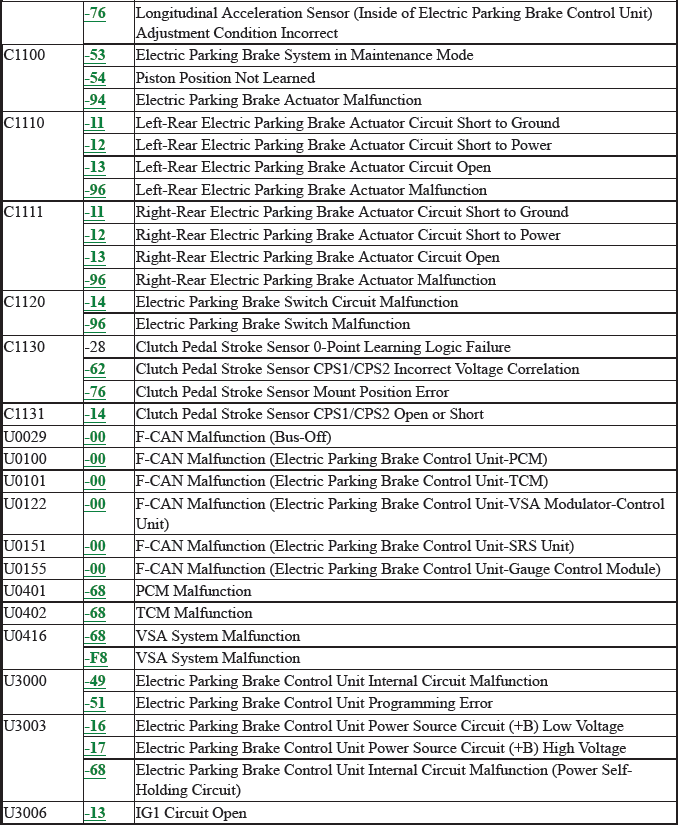

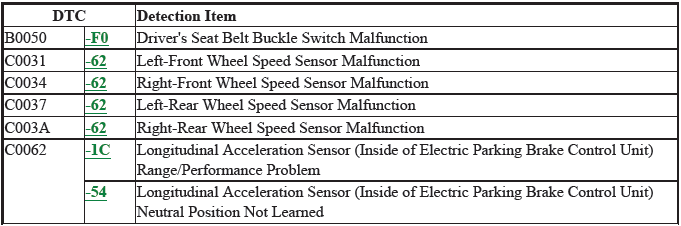

ELECTRIC PARKING BRAKE DTC TROUBLESHOOTING INDEX

Parking Brake System - Testing & Troubleshooting

Parking Brake System - Testing & Troubleshooting

TESTING

ELECTRIC PARKING BRAKE CONTROL UNIT UPDATE

Special Tools Required

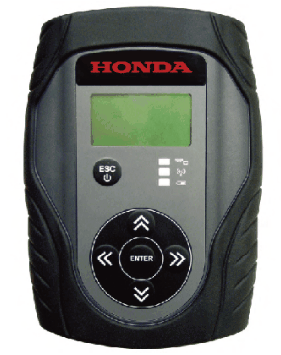

MVCI unit with the latest control module (CM) update software installed

Parking Brake System - Testing & Troubleshooting

Procedure

1. Electric Parking Brake Control Unit - Update

NOTE: Check any official service website for more information about updating the MVCI and control units.

2. Longitudinal Acceleration Sensor Neutral Position - Memorize

    READ NEXT:

     Symptom Troubleshooting

     Electric Parking Brake Symptom Troubleshooting - Electric Parking Brake Indicator Does Not Come ON

    1. Gauge control module operation check. Do the gauge control module self-diagnostic function. Is the gauge control module OK? YES Go to step 2. NO Replace the gauge control module. 2. Open wire ch

     Electric Parking Brake Symptom Troubleshooting - Electric Parking Brake Indicator Does Not Go OFF, And No DTCS Are Stored

    1. DTC check. Turn the vehicle to the ON mode. Check for DTCs with the HDS. Are there DTCs indicated? YES Go to indicated DTC's troubleshooting. NO Go to step 2. 2. Gauge control module operation
