Honda HR-V: Keyless Entry Transmitter Removal, Installation, and Test

Special Tools Required

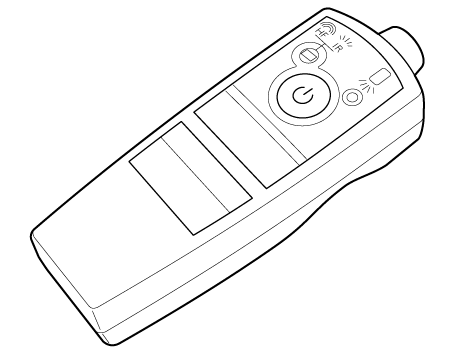

Keyless Entry Checker 07MAJSP00400

Test

1. Transmitter - Test

NOTE:

• If the doors do not lock or unlock with the transmitter, check the LED on the transmitter by pressing the lock or unlock button. If the LED does not come on, replace the transmitter battery.
• If the doors unlock or lock with the transmitter, but the LED on the transmitter does not come on, the LED is faulty; replace the transmitter.
• If any door is open, you cannot lock the doors with the transmitter.
• If you unlocked the doors with the transmitter, but do not open any of the doors within 30 seconds, the doors relock automatically.
• The doors do not lock or unlock with the transmitter if the ignition key is inserted in the ignition switch.

With HDS

1. Press the transmitter lock or unlock button at least 10 times to reset the transmitter.

• If the locks work, the transmitter is OK.
• If any of the transmitter buttons do not work, replace the transmitter, then register a new transmitter.
• If the locks don't work, go to step 2.

2. Connect the HDS to the data link connector (DLC)

3. Select KEYLESS TRANSMITTER from the BODY ELECTRICAL menu, then select INSPECTION, then KEYLESS CHECK

4. Follow the screen prompts to check each button's operation.

NOTE: The door lock actuators may or may not cycle when receiving input from the transmitter.

• If KEYLESS ENTRY TRANSMITTER CODE IS RECEIVED is indicated, the transmitter is OK.
• If DIFFERENT KEYLESS ENTRY TRANSMITTER CODE IS RECEIVED is working but indicated, the transmitter is not registered to the vehicle. If necessary, register the transmitter.
• If KEYLESS ENTRY TRANSMITTER CODE IS NOT RECEIVED is indicated, go to step 5.

5. Open the transmitter and check for water damage.

• If you find any water damage, replace the transmitter, then register a new transmitter.
• If there is no water damage, go to step 6.

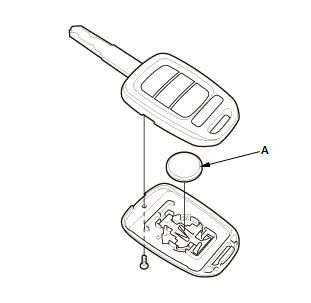

6. Replace the transmitter battery (A) with a new one (CR1620), and press the lock or unlock button and check the response on the screen of the HDS.

• If KEYLESS ENTRY TRANSMITTER CODE IS RECEIVED is indicated, the transmitter is OK.
• If KEYLESS ENTRY TRANSMITTER CODE IS NOT RECEIVED is indicated, go to step 7.
• If the transmitter does not work after replacing the transmitter battery, verify that the correction battery was installed and the polarity is correct.

7. Use a different known-good transmitter assembly and repeat steps 3 and 4.NOTE: The transmitter does not need to be programmed to the vehicle for this test.

• If DIFFERENT KEYLESS ENTRY TRANSMITTER CODE WAS RECEIVED is indicated, replace the transmitter and do the transmitter registration.
• If KEYLESS ENTRY TRANSMITTER CODE WAS NOT RECEIVED is indicated, the immobilizer-keyless control unit is faulty, replace it and do the immobilizer-keyless control unit registration.

NOTE: The transmitter is combined with the immobilizer transponder, so when the transponder is registered by the HDS, the transmitter programming is completed automatically.

Without HDS

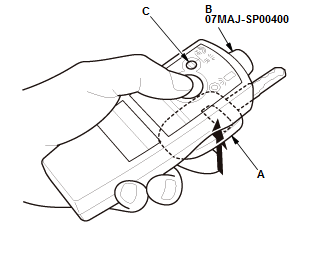

1. Put on the transmitter (A) behind the keyless entry checker (B)
2. Press the door lock button.
   • If the indicator light (C) comes on, the transmitter is OK.
   • If the indicator light does not come on, check for;
     • A dead or low battery, go to step 3.
     • Faulty transmitter.

3. Open the transmitter and check for water damage.
   • If you find any water damage, replace the transmitter and register a new transmitter.
   • If there is no water damage, go to step 4.
4. Replace the transmitter battery (A) with a new one (CR1620), and try to lock and unlock the doors with the transmitter by pressing the lock or unlock button at least 10 times:
   • If the doors lock and unlock, the transmitter is OK.
   • If the doors do not lock and unlock, go to step 5.
5. Reprogram and register the transmitter, then try to lock and unlock the doors.
   • If the doors lock and unlock, the transmitter is OK.
   • If the doors do not lock and unlock, substitute a known-good transmitter, register it and recheck. If still not operating, replace the immobilizer-keyless control unit.
