Honda HR-V: Fuel Gauge Sending Unit Test (2WD)
Test
NOTE: Unless otherwise indicated, illustrations used in the procedure are for
USA and Canada models
1. Fuse - Check
- Check the No. B21 (10 A) +B BACK UP fuse in the under-hood fuse/relay
box and the No. C34
(7.5 A) IG1 METER fuse in the under-dash fuse/relay box before testing.
2. Body Electrical DTCs - Check
- Check for body electrical system DTCs.
- If no problem is found, go to the next procedure (Center Console -
Remove).
- If DTC B1175 or B1176 is indicated, go to the indicated DTC's
troubleshooting.
3. Center Console - Remove
4. Access Panel - Remove
.png)

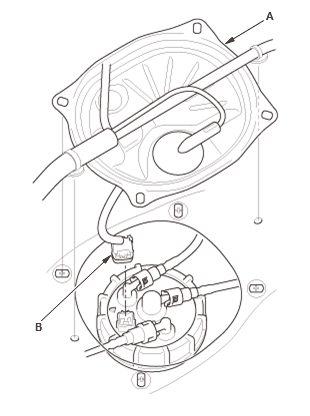

- Remove the access panel (A) from the floor
- Disconnect the connector (B).
5. Open or Short Wire at Fuel Gauge Sending Unit Connector - Check
.png)
- Measure the voltage between fuel tank unit connector terminals No. 2 and
No.
4 with the vehicle in ON mode. There should be 12 volt battery voltage.
- If the voltage is OK, go to step 2.
- If the voltage is not as specified, check for:
- a short in the GRY wire to ground.
- an open in the BRN wire.
- Turn the vehicle to the OFF (LOCK) mode.
6. Fuel Tank Unit - Remove - Refer to: Fuel Tank Unit Removal and
Installation (2WD), or Fuel Tank
Unit Removal and Installation (AWD)
7. Fuel Gauge Sending Unit - Test
.png)
- Measure the resistance between fuel tank unit 4P connector terminals No.
2 and No. 4 with the float at E (EMPTY), LOW (LOW FUEL INDICATOR), 1/2 (HALF
FULL), and F (FULL) positions. If you do not get the following readings,
replace the fuel tank unit - Refer to: Fuel Tank Unit Removal and
Installation (2WD), or Fuel Tank Unit Removal and Installation (AWD).
USA and Canada models
.png)
Mexico models
.png)
- Reconnect the fuel tank unit connector
- Remove the No. B21 (10 A) +B BACK UP fuse in the under-hood fuse/relay
box and the No. C34 (7.5
A) IG1 METER fuse in the under-dash fuse/relay box for at least 10 seconds,
then reinstall it
- Turn the vehicle to the ON mode
- Check that the pointer of the fuel gauge indicates F with the float at
F.
- If the pointer of the fuel gauge does not indicate F, replace the
gauge control module.
- If the gauge is OK, the test is complete.
NOTE:
- The pointer of the fuel gauge returns to the bottom of the gauge dial
when turned the vehicle in the
ACCESSORY or OFF (LOCK) mode, regardless of the fuel level.
- Remove the No. B21 (10 A) +B BACK UP fuse in the under-hood fuse/relay
box or the No. C34
(7.5 A) IG1 METER fuse in the under-dash fuse/relay box for at least 10
seconds after completing
the test, otherwise it may take up to 20 minutes for the fuel gauge to
indicate the correct fuel level.
