Honda HR-V: Front Stabilizer Link Removal and Installation

Honda HR-V (2015-2021) Service Manual / Suspension System / Suspension System - Service Information / Front Stabilizer Link Removal and Installation

Removal

1. Vehicle - Lift

2. Front Wheel - Remove

3. Stabilizer Link - Remove

Suspension System - Service Information

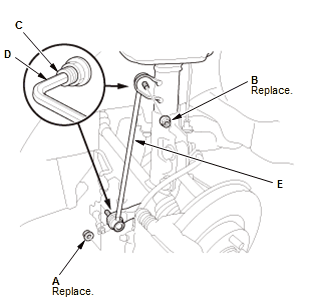

  1. Remove the self-locking nut (A) and the flange nut (B) while holding the respective joint pin (C) with a hex wrench (D)
  2. Remove the stabilizer link (E).

Installation

1. Stabilizer Link - Install

Suspension System - Service Information

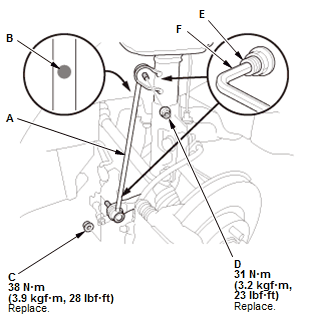

Fig. 16: Stabilizer Link With Torque Specifications

  1. Install the stabilizer link (A).
    NOTE : The stabilizer link has a paint mark (B). The paint mark indicates the difference between the left and right stabilizer links
  2. Install the new self-locking nut (C) and the new flange nut (D), then tighten them to the specified torque while holding the respective joint pin (E) with a hex wrench (F).

2. Front Wheel - Install
