Honda HR-V: Front Damper/Spring Removal and Installation
Removal & Installation
1. Vehicle - Lift
2. Front Wheel - Remove
3. Stabilizer Link - Disconnect
- Disconnect the stabilizer link from the damper.
4. Damper/Spring Items - Remove
.png)

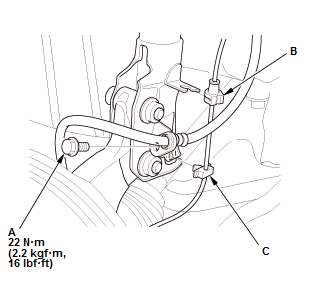

Fig. 1: Brake Hose Mounting Bolt With Torque Specifications
- Remove the brake hose mounting bolt (A)
- Remove the wheel speed sensor wire guide rubber (B) and the clip (C).

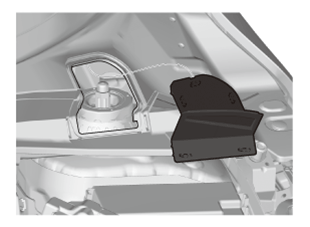

5. Maintenance Lid - Remove
.png)
6. Damper/Spring - Remove
.png)

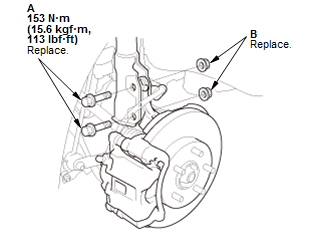

Fig. 2: Damper Pinch Bolts With Torque Specifications
- Remove the damper pinch bolts (A) and the flange nuts (B).
NOTE:
- Do not allow the knuckle to rotate too far outward. This may allow
the driveshaft inboard joint to come apart.
- Use the new damper pinch bolts and the new flange nuts during
reassembly.
- During installation, install the damper pinch bolts to the same
direction as removal.
.png)

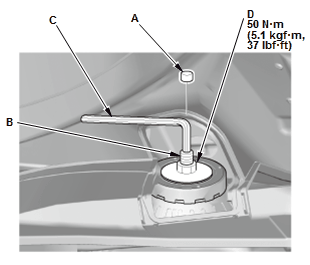

Fig. 3: Upper Damper Mounting Nut With Torque Specifications
- Remove the damper cap (A)
- Hold the damper shaft (B) using a hex wrench (C), and loosen the damper
mounting nut (D).
.png)

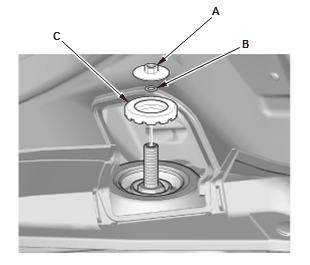

- Remove the damper mounting nut (A), the spring washer (B), and the
damper mounting base (C).
.png)

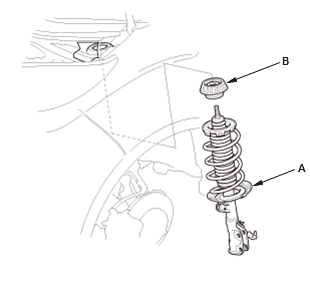

- Remove the damper/spring (A) and the damper rubber mount (B).NOTE: Be
careful not to damage the body.
7. All Removed Parts - Install
- Install the front damper/spring in the reverse order of removal.
8. Wheel Alignment - Check
