Honda HR-V: Front Brake Caliper Removal and Installation
Removal
Do not spill brake fluid on the vehicle; it may damage the paint. If brake fluid does contact the paint, wash it off immediately with water.
NOTE: After removal, plug the ends of the hoses and the joints to prevent spilling brake fluid.
1. Vehicle - Lift
2. Front Wheels - Remove
3. Brake Caliper Body - Remove
.png)
- Remove the banjo bolt (A), and disconnect the brake hose (B) from the caliper body (C)
- Remove the flange bolts (D) while holding respective caliper pins (E) with a wrench.
4. Brake Pad - Remove
5. Caliper Pin and Pin Boot - Remove
.png)
- Remove caliper pin A and caliper pin B.NOTE : The upper and lower caliper pins are different. During installation, make sure the caliper pins are in the proper positions
- Remove the pin boots (C).
Installation
Do not spill brake fluid on the vehicle; it may damage the paint. If brake fluid does contact the paint, wash it off immediately with water.
1. Caliper Pin and Pin Boot - Install
.png)
- Apply a thin coat of Honda caliper grease (P/N 08C30- B0224M) to caliper pin A, caliper pin B, and the new pin boots (C)
- Install the pin boots
- Install caliper pin A and caliper pin B.
NOTE :
- Make sure that the pin boots are properly positioned into the grooves (D) of the caliper pin and the grooves (E) of the caliper bracket.
- Make sure that caliper pin A and caliper pin B are installed correctly. The upper caliper pin and the lower caliper pin are different. If caliper pin A and caliper pin B are installed in the wrong location, it will cause vibration, uneven or rapid brake pad wear, and possibly uneven tire wear.
- Remove air from within the pin boots.
2. Brake Pad - Install
3. Brake Caliper Body - Install
.png)

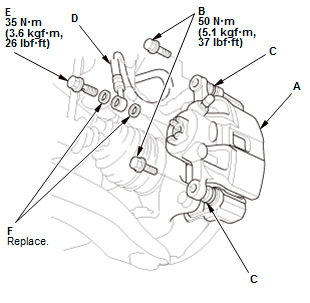

Fig. 12: Brake Caliper Mouting Bolt And Brake Hose Torque Specifications
- Install the caliper body (A)
- Install the flange bolts (B), and tighten it to the specified torque while holding respective caliper pins (C) with a wrench
- Connect the brake hose (D) to the caliper body with the banjo bolt (E) and new sealing washers (F).
4. Brake System - Bleed
5. Brake Hose and Line - Check
NOTE:
- Check for leaks at hose and line joints or connections, and retighten if necessary.
- Check the brake hoses for interference and twisting.
6. Front Wheels - Install
