Honda HR-V: Driving Assistance Warning - Service Information
REMOVAL INSTALLATION
FCW OFF SWITCH REMOVAL, INSTALLATION, AND TEST
Removal & Installation
1. Driver's Dashboard Lower Cover - Remove
2. FCW OFF Switch - Remove
.png)

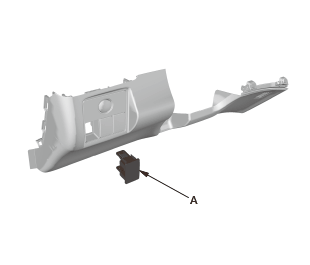

- Remove the FCW OFF switch (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Test
1. FCW OFF Switch - Test
.png)
.png)

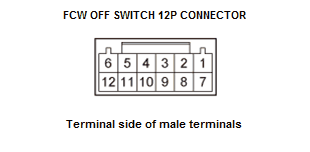

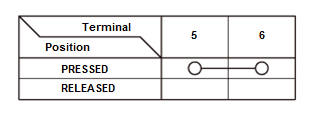

- On the switch side, Check for continuity between the terminals in each switch position according to the table. If the switch does not works as described in the table, replace the FCW/LDW OFF switch.
.png)
- Check the LED for illumination by applying power and ground to the
terminals according
to the table.
NOTE: This important operating characteristic; diode bias cause a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse). If the results are not as specified, replace the FCW/LDW OFF switch.
LDW OFF SWITCH REMOVAL, INSTALLATION, AND TEST
Removal & Installation
1. Driver's Dashboard Lower Cover - Remove
2. LDW OFF Switch - Remove
.png)
- Remove the LDW OFF switch (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Test
1. LDW OFF Switch - Test
.png)
- On the switch side, measure the resistance between the LDW OFF switch 12P connector terminals No. 8 and No. 11 according to the table. If there is no resistance in one or more positions, replace the FCW/LDW OFF switch.
.png)
.png)
- Check the LED for illumination by applying power and ground to the
terminals according
to the table.
NOTE: This important operating characteristic; diode bias cause a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
If the results are not as specified, replace the LDW OFF switch.
.png)
- Check the LED for illumination by applying power and ground to the
terminals according
to the table.
NOTE: This important operating characteristic; diode bias cause a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
If the results are not as specified, replace the LDW OFF switch.
MULTIPURPOSE CAMERA UNIT REMOVAL AND INSTALLATION
Removal & Installation
1. Multi Purpose Camera Unit - Remove
.png)

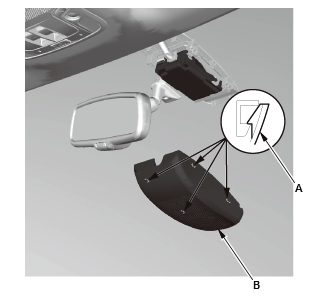

- Detach the hooks (A), then remove the cover (B).
.png)

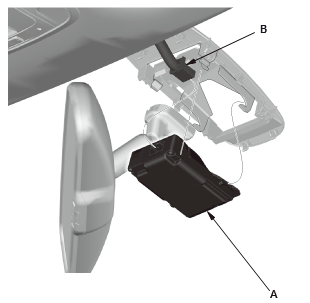

- Remove the multi purpose camera unit (A)
- Disconnect the connector (B).
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
3. Multi Purpose Camera - Aim
