LANEWATCH SYSTEM DESCRIPTION - OVERVIEW (NA)

LaneWatch System Description - Overview

LaneWatch uses a camera and the multi-information display to help drivers recognize objects in the passenger's side blind spot. The added visibility improves safety when changing lanes or making right turns.

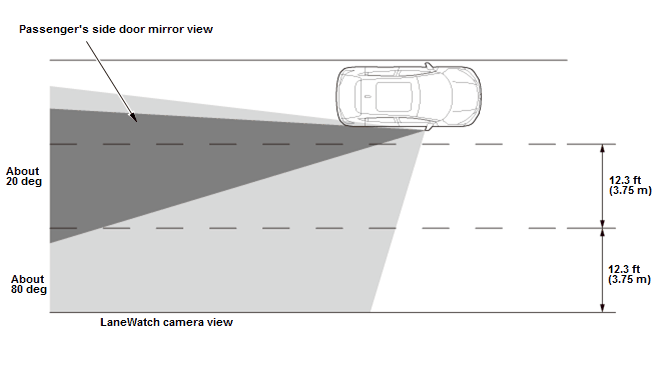

The driver can see other vehicles, bicycles, or pedestrians that aren't normally visible in the passenger's side door mirror.

Sight Support

LaneWatch camera

The LaneWatch camera is built into the passenger's side door mirror which sends the image to the audio unit or navigation unit.

LaneWatch switch

The LaneWatch switch is built into the combination light switch.

Audio unit

The image appears on the audio unit or navigation unit.

Operation

  • With the display on or off, pressing the LaneWatch switch will change the audio unit or navigation unit to the LaneWatch screen.
  • When the turn signal switch is moved to the right turn position (lane change or continuous flash), the display will change to the LaneWatch camera view.

Customization

  • The turn signal switch interconnection can be switched ON or OFF.
  • The LaneWatch screen reference lines can be turned ON or OFF.
  • Display settings such as brightness, contrast, black level, color and tint can be adjusted.

LANEWATCH SYSTEM DESCRIPTION - SYSTEM DIAGRAM (NA)

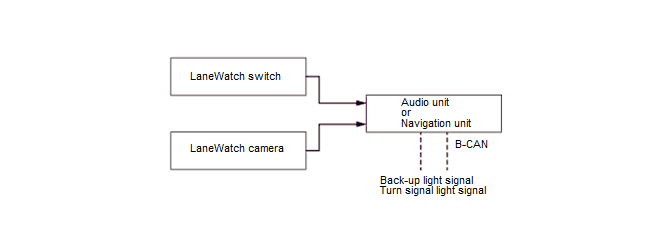

LaneWatch System Description - System Diagram

Sight Support
