Honda HR-V: Combination Light Switch Removal, Installation, and Test

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Exterior Lighting - Service Information / Combination Light Switch Removal, Installation, and Test

Removal & Installation

NOTE : SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. Column Cover - Remove

2. Combination Light Switch - Remove

Exterior Lighting - Service Information

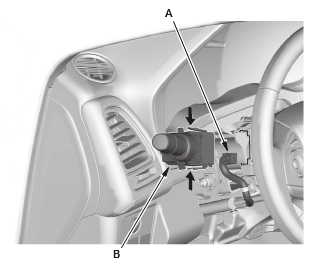

  1. Disconnect the connector (A)
  2. Remove the combination light switch (B) by pressing the tabs.

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

Test

1. Combination Light Switch - Test

Exterior Lighting - Service Information

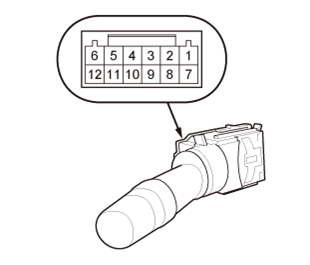

  1. Inspect the connector terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals are OK, go to step 2.

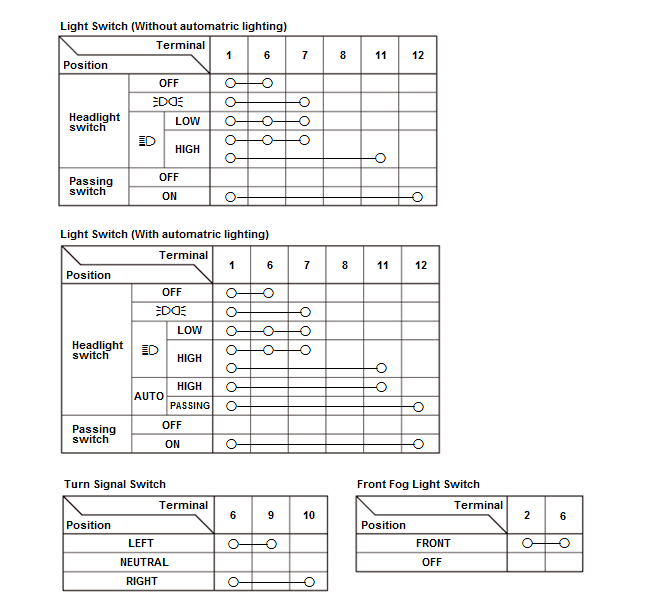

  2. Check for continuity between the terminals in each switch position according to the tables.

Exterior Lighting - Service Information

  1. If the continuity is not as specified, replace the combination light switch.
