Honda HR-V: Rear Door Protection Tape Removal and Installation
Removal
1. Rear Door Protection Tape - Remove

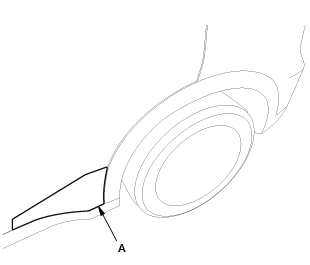

- Remove the rear door protection tape (A).
NOTE : Slowly peel up the old
door protection tape while heating it with a hair dryer.
Installation
1. Rear Door Protection Tape - Install
- Clean the door bonding surface with a sponge dampened in isopropyl
alcohol.
After cleaning, keep oil, grease, and water from getting on the surface
- Remove a small portion of the separate paper from the rear door
protection tape

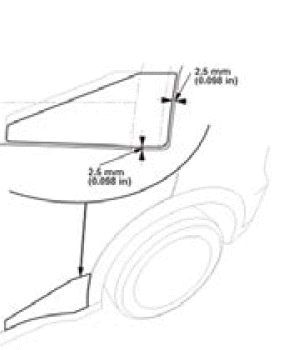

- Align the rear door protection tape as shown
- Install the rear door protection tape, as gradually removing the rest of
separate
paper
- Apply a pressure to the rear door protection tape to install the tape on
the rear door.
NOTE : Install the tape slowly and rub the tape from the corner to each end
to
avoid bubbles
- Remove the application seat.
REAR DOOR REGULATOR REMOVAL AND INSTALLATION
Removal & Installation
1. Rear Door Glass - Remove
2. Rear Door Regulator - Remove

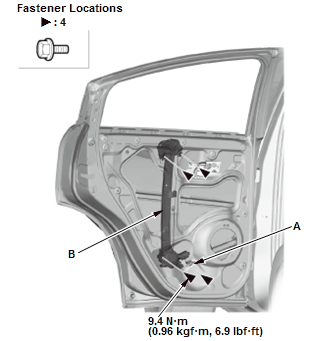

- Disconnect the connector (A)
- Remove the bolts, then remove the regulator (B) through the
hole in the door.
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE :

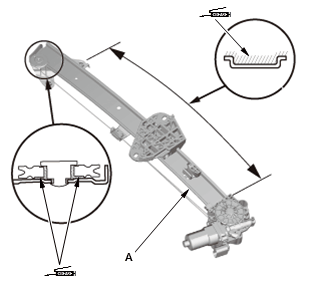

- Apply multipurpose grease to all sliding surfaces of the rear door
regulator (A) where shown.
- Do the rear door glass adjustment.
