Honda HR-V: Circuit Diagram
Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Mirrors - Testing & Troubleshooting / Circuit Diagram

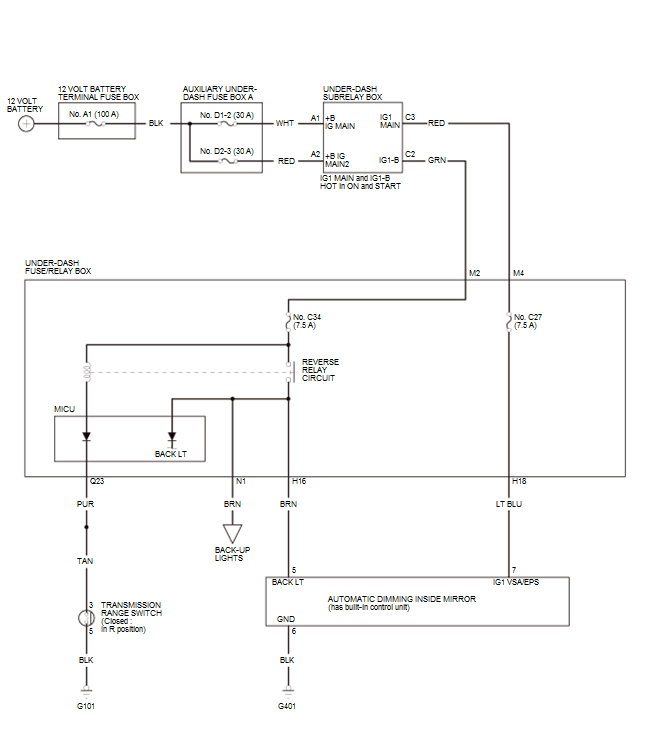

AUTOMATIC DIMMING MIRRORS CIRCUIT DIAGRAM
.png)

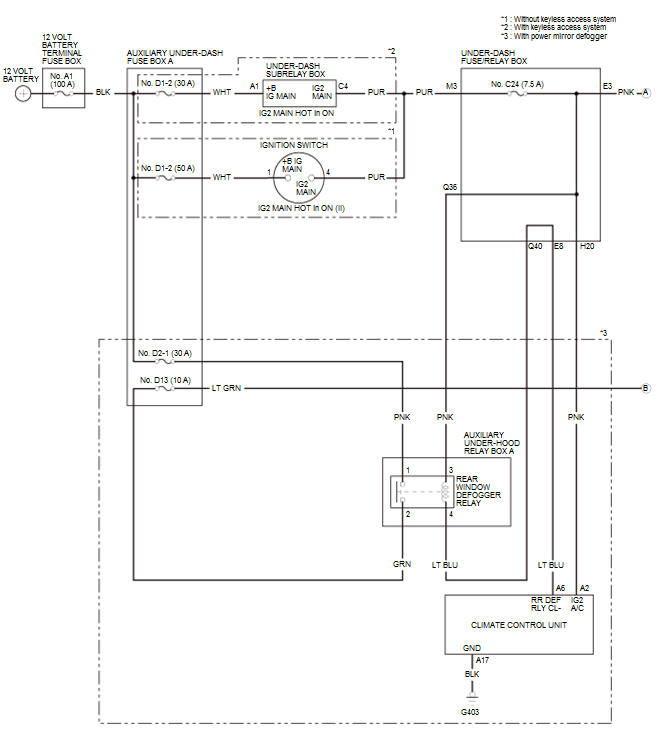

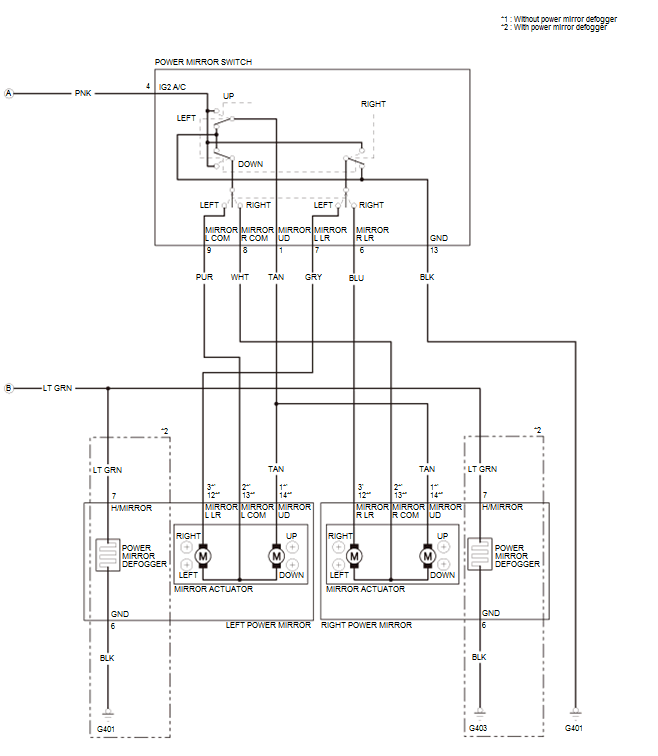

POWER MIRRORS CIRCUIT DIAGRAM
.png)
.png)
WIRING DIAGRAM
AUTOMATIC DIMMING INSIDE MIRROR ELECTRONIC WIRING DIAGRAM
Power Mirrors
POWER MIRRORS ELECTRONIC WIRING DIAGRAM
Power Mirrors
COMPONENT LOCATION INDEX

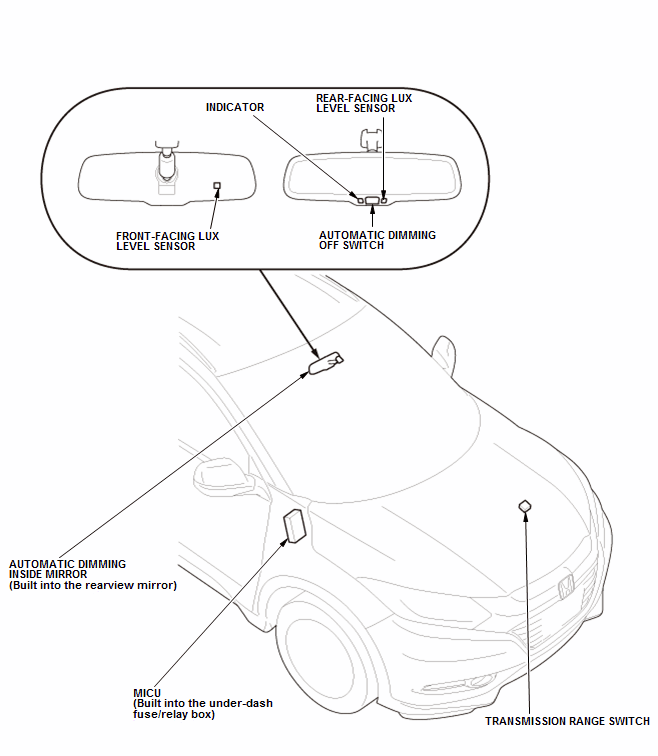

AUTOMATIC DIMMING MIRRORS ELECTRICAL COMPONENT LOCATION INDEX
.png)

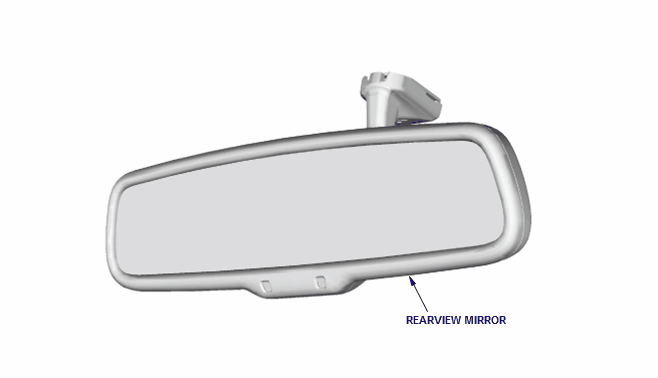

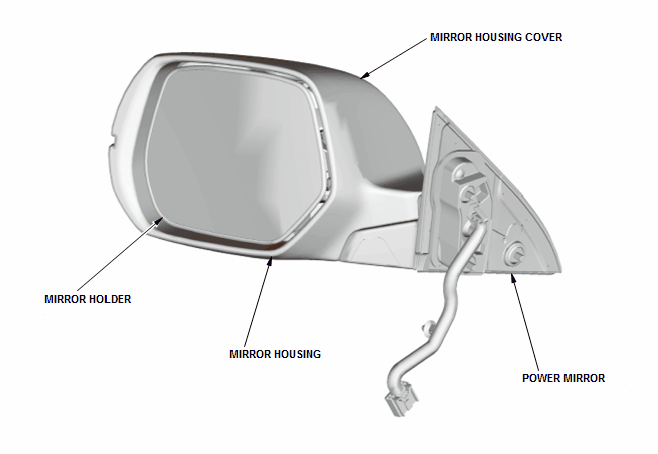

MIRRORS COMPONENT LOCATION INDEX
.png)
.png)

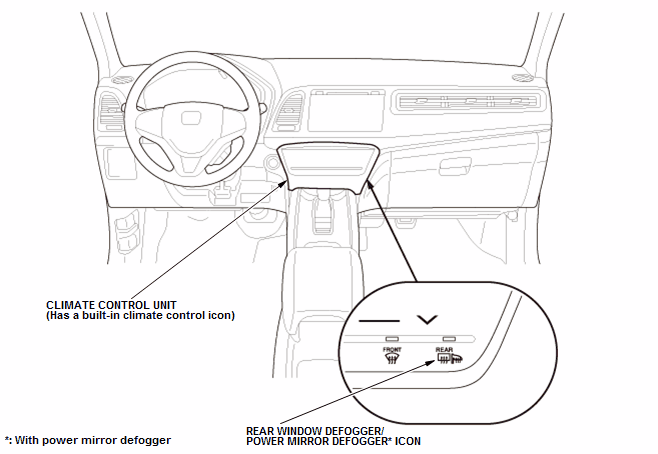

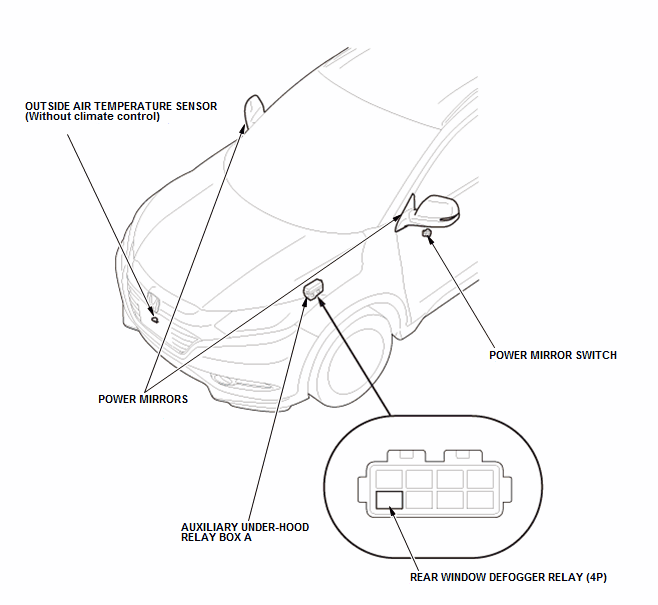

POWER MIRRORS COMPONENT LOCATION INDEX
.png)
.png)
