Honda HR-V: Circuit Diagram

EXTERIOR LIGHTS CIRCUIT DIAGRAM

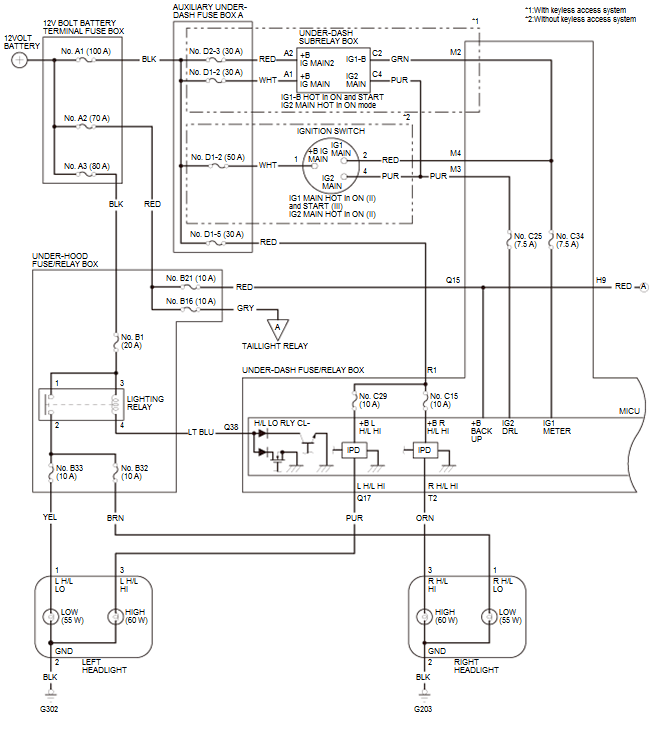

Headlights/Parking Lights/Side Marker Lights/Taillights/License Plate Lights

Exterior Lighting - Testing & Troubleshooting

Exterior Lighting - Testing & Troubleshooting

Exterior Lighting - Testing & Troubleshooting

Back-Up Lights

Exterior Lighting - Testing & Troubleshooting

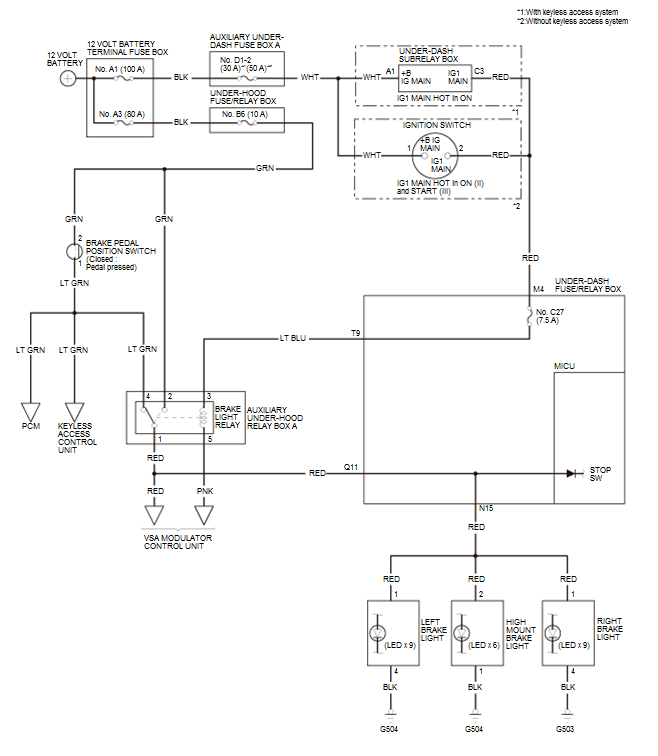

Brake Lights

Exterior Lighting - Testing & Troubleshooting

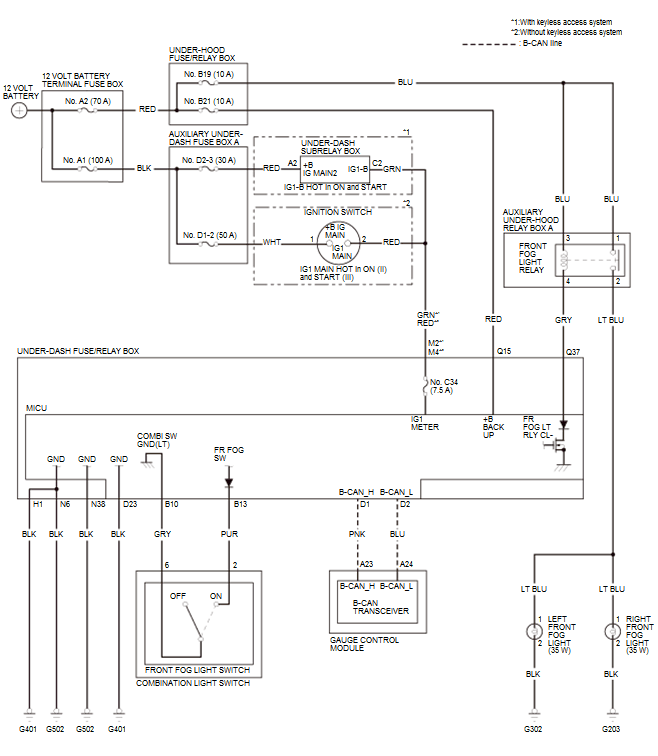

Fog Lights

Exterior Lighting - Testing & Troubleshooting

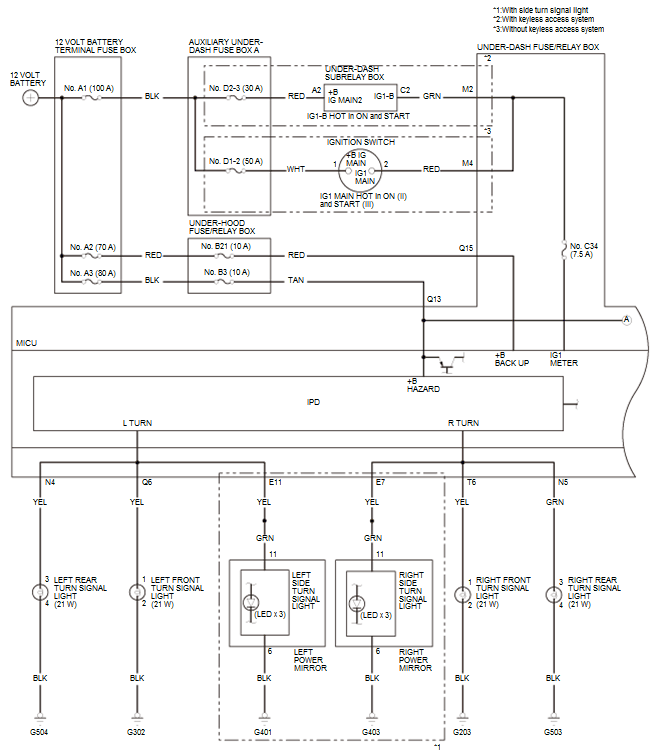

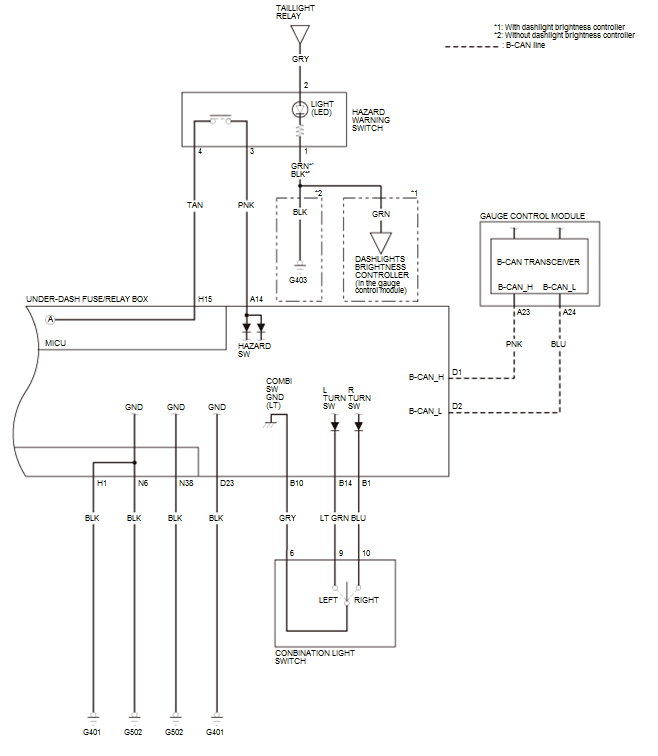

TURN SIGNAL/HAZARD WARNING LIGHTS CIRCUIT DIAGRAM

Exterior Lighting - Testing & Troubleshooting

Exterior Lighting - Testing & Troubleshooting

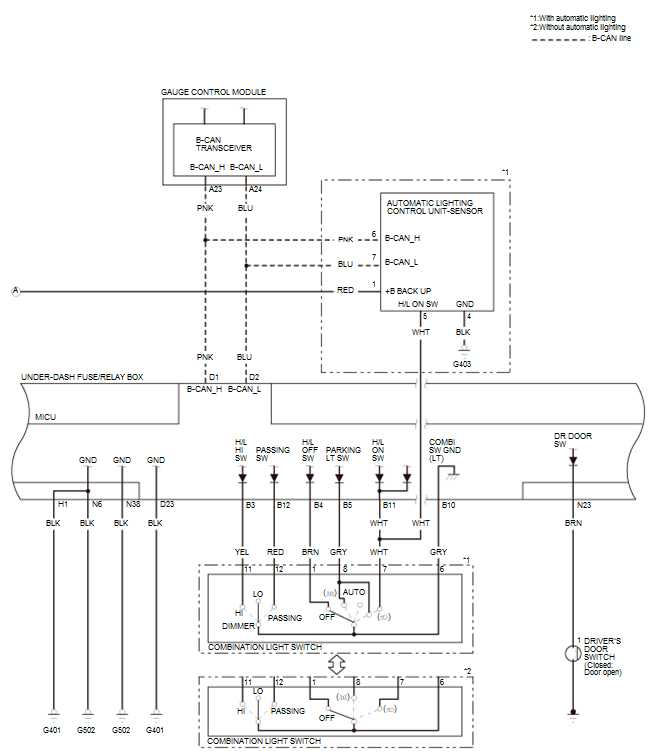

LIGHTING CONTROL SENSOR

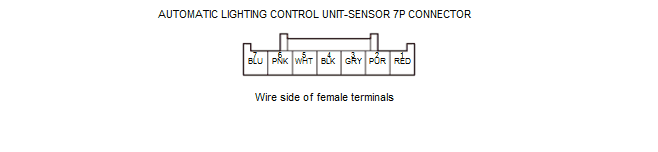

AUTOMATIC LIGHTING CONTROL UNIT-SENSOR CONNECTOR FOR INPUTS AND OUTPUTS

Exterior Lighting - Testing & Troubleshooting

Exterior Lighting - Testing & Troubleshooting

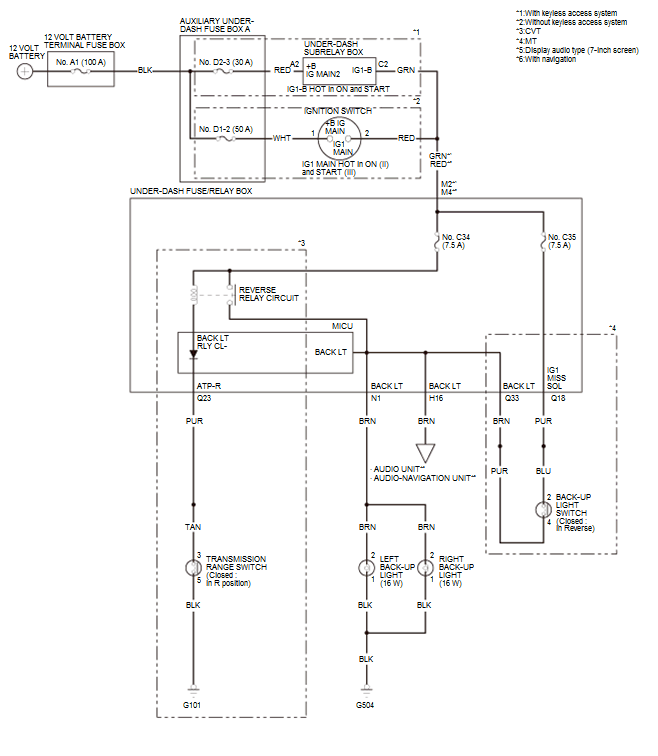

BACK-UP LIGHTS ELECTRONIC WIRING DIAGRAM

Refer to: Exterior Lights

BRAKE LIGHTS ELECTRONIC WIRING DIAGRAM

Refer to: Exterior Lights

FOG LIGHTS ELECTRONIC WIRING DIAGRAM

Refer to: Exterior Lights

HEADLIGHTS ELECTRONIC WIRING DIAGRAM

Refer to: Headlights

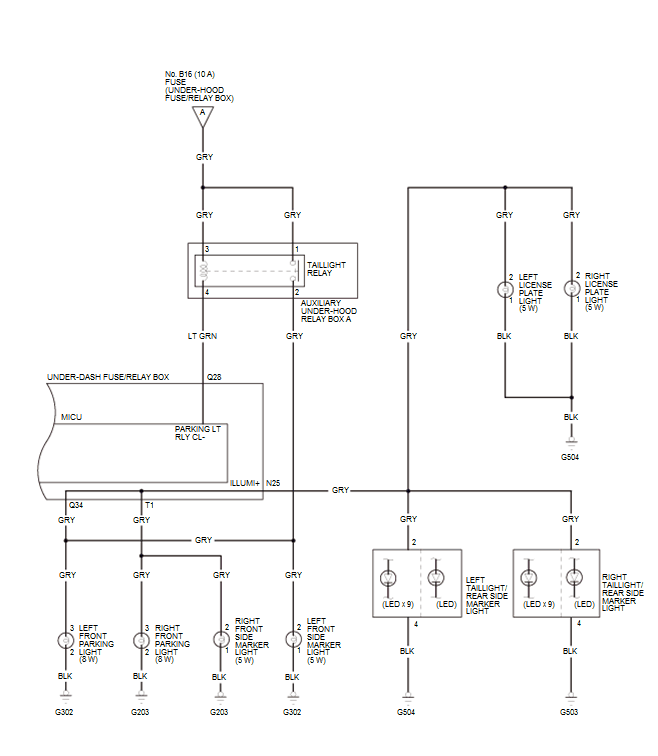

LICENSE PLATE LIGHT, PARKING LIGHT, TAILLIGHTS AND TURN SIGNAL/HAZARD WARNING LIGHTS ELECTRONIC WIRING DIAGRAM

Refer to: Exterior Lights

COMPONENT LOCATION INDEX

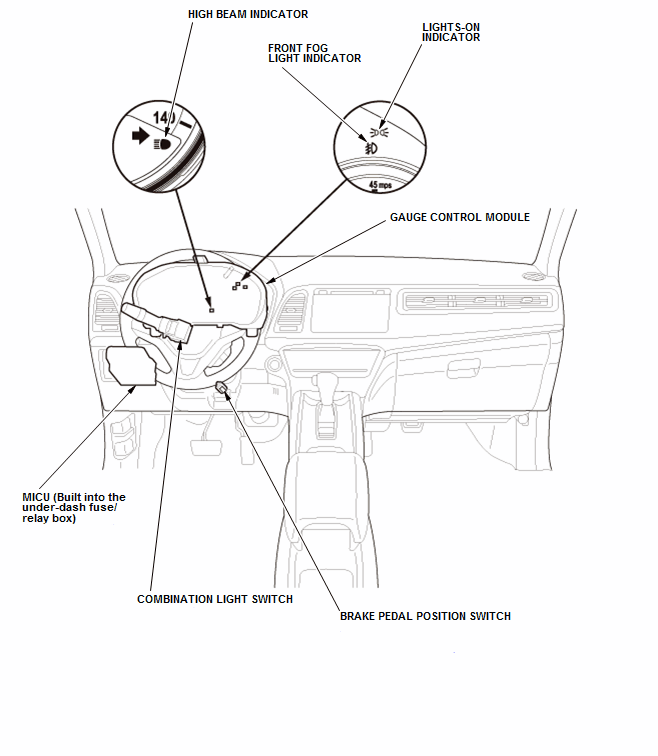

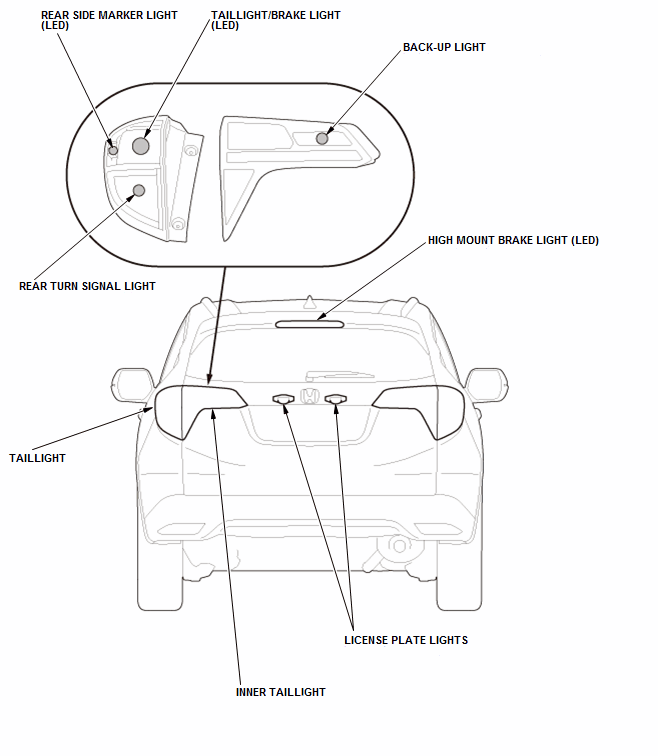

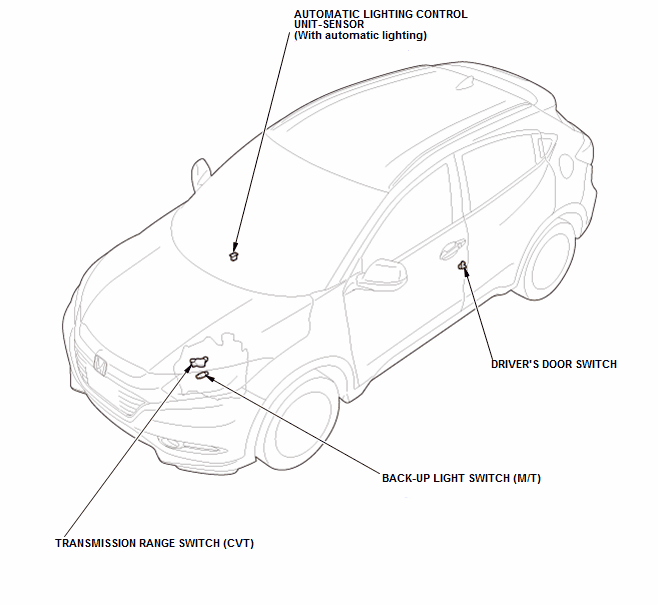

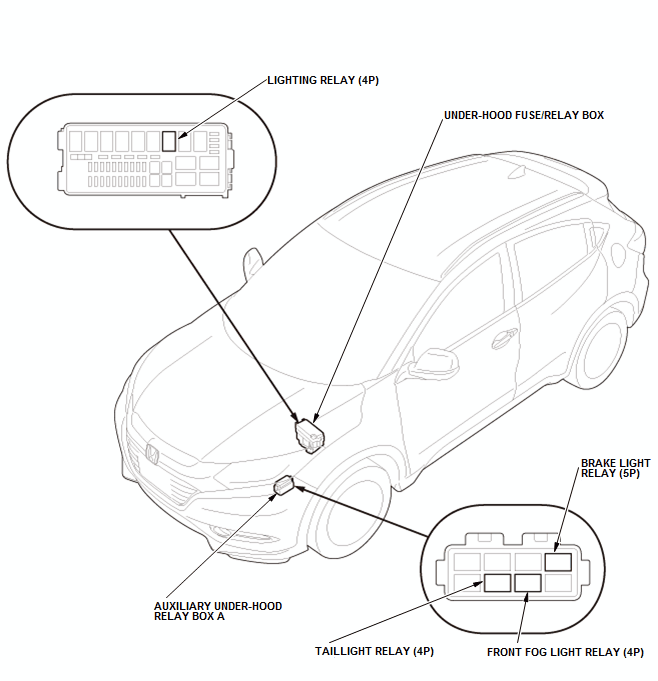

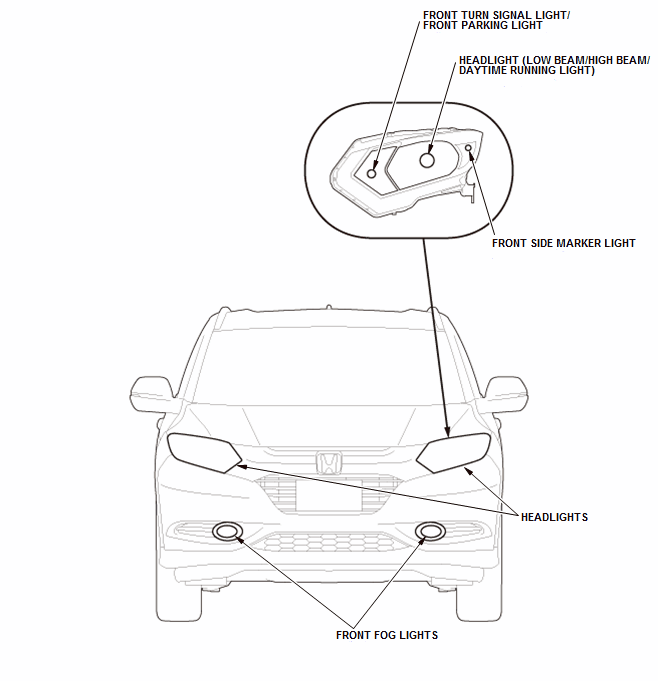

EXTERIOR LIGHTS COMPONENT LOCATION INDEX

Exterior Lighting - Testing & Troubleshooting

Exterior Lighting - Testing & Troubleshooting

Exterior Lighting - Testing & Troubleshooting

Exterior Lighting - Testing & Troubleshooting

Exterior Lighting - Testing & Troubleshooting

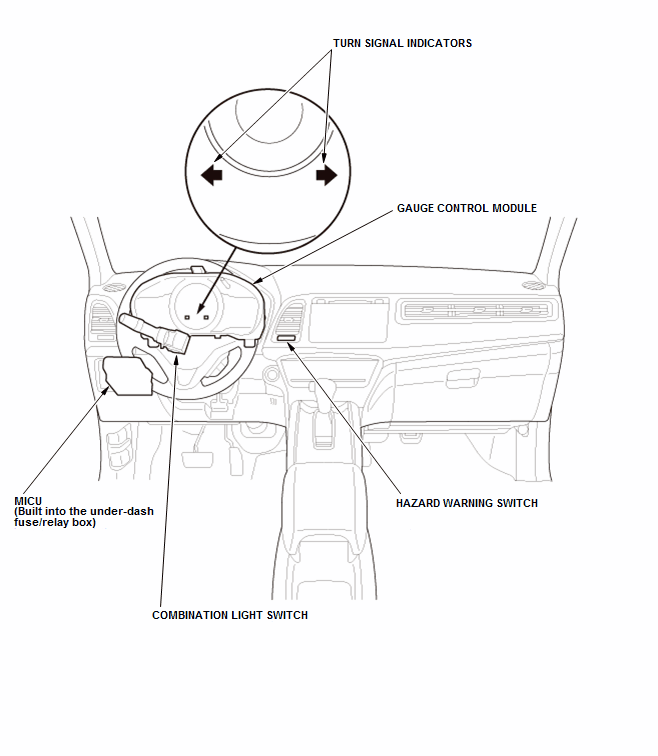

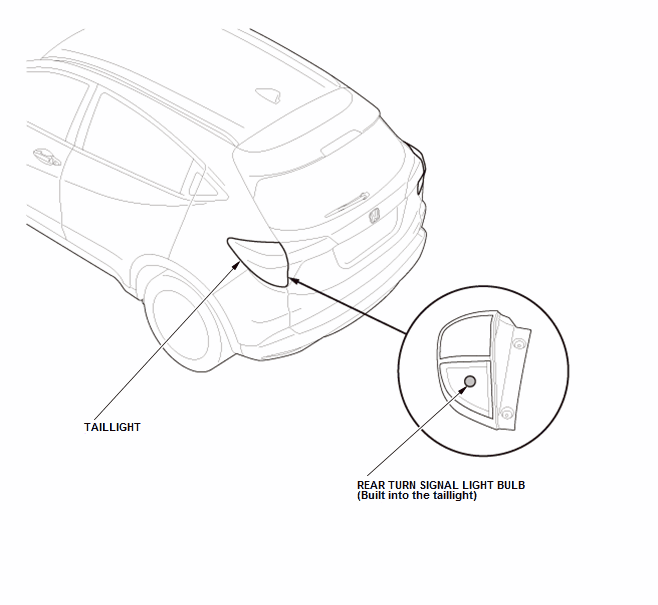

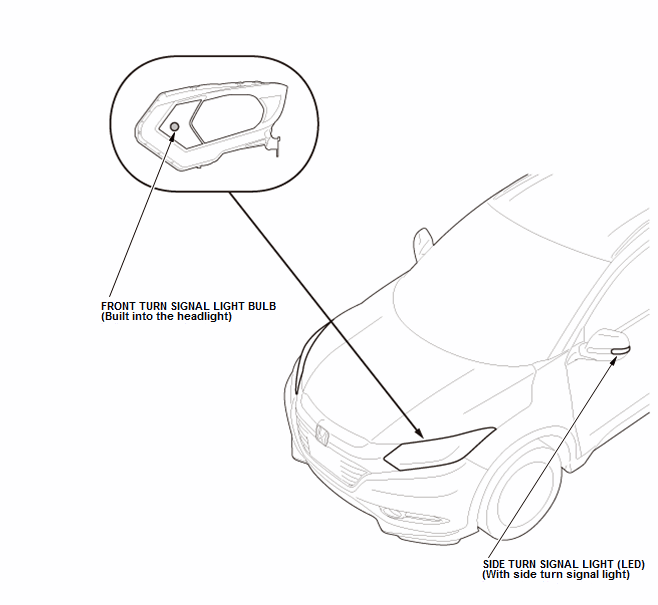

TURN SIGNAL/HAZARD WARNING LIGHTS COMPONENT LOCATION INDEX

Exterior Lighting - Testing & Troubleshooting

Exterior Lighting - Testing & Troubleshooting

Exterior Lighting - Testing & Troubleshooting
