Honda HR-V: Cable Reel Removal and Installation
Removal
SRS components are located in this area. Review the SRS component locations -
Refer to: SRS Component
Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the
precautions and
procedures before doing repairs or service.
NOTE: Before doing this procedure, set the front wheels in the straight ahead
position.
1. 12 Volt Battery Terminal - Disconnect
NOTE: Wait at least 3 minutes before starting work.
2. Driver's Airbag - Remove
3. Steering Wheel - Remove
4. Column Cover - Remove
5. Connector - Disconnect
.png)

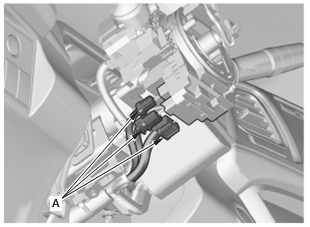

- Disconnect the connectors (A) from the cable reel.
6. Cable Reel/Steering Angle Sensor - Remove
.png)

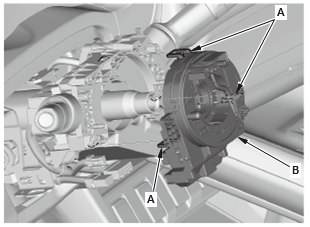

- Release the lock tabs (A), then remove the cable reel/steering
angle sensor (B).
7. Cable Reel - Remove
Installation
SRS components are located in this area. Review the SRS component locations -
Refer to: SRS Component
Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the
precautions and
procedures before doing repairs or service.
NOTE:
- Before installing the steering wheel, make sure the front wheels are
aligned straight ahead.
- New cable reel is locked by yellow tab for center adjustment. When
installing a new cable reel there is no
need to rotate the cable reel. You remove the tab and discard it, after
install new cable reel.
- If the driver's airbag is deployed, cable reel cannot be reused because
of thermal damage.
1. Cable Reel - Install

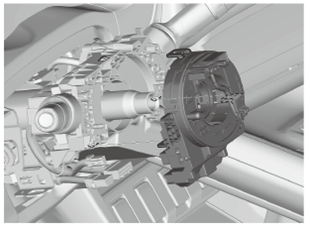

2. Cable Reel/Steering Angle Sensor - Install
.png)
3. Connector - Connect
.png)
- Connect the connector (A) to the cable reel.
4. Column Cover - Install
5. Cable Reel - Align
.png)
- Make sure the front wheels are pointing straight ahead

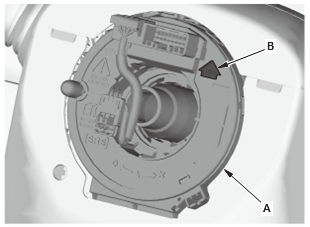

- Center the cable reel (A). Do this by first rotating the cable reel
clockwise
until it stops
- Rotate the cable reel counterclockwise about three full turns. The arrow
mark (B) on the cable reel label should point straight up.
6. Steering Wheel - Install
7. Driver's Airbag - Install
8. SRS Operation - Confirm
- Do the 12 volt battery terminal reconnection procedure, turn the vehicle
to the ON mode, and check
that the SRS indicator comes on for about 6 seconds and then goes off.
