Honda HR-V: About Your Audio System
Models with navigation system
See the navigation system manual for operation of the audio system.
Models without navigation system
The audio system features AM/FM radio. It can also play audio CDs, WMA/MP3/AAC
files, USB flash drives, and iPod, iPhone and Bluetooth devices.

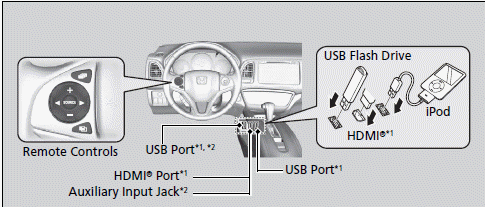

You can operate the audio system from the buttons and switches on the panel,
the
remote controls on the steering wheel, or the icons on the touchscreen
interface*.
.png)
*1:Models with display audio system
*2:Models with color audio system
Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not
supported.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may prohibit the operation of
handheld electronic devices while operating a
vehicle.
USB Port(s)
1. Open the cover.
2. Install the iPod dock connector or the USB
flash drive to the USB port.
.png)
- Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
- Do not connect the iPod or USB flash drive using a
hub.
- Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
- We recommend your data backed up before using
the device in your vehicle.
- Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufacturer's instructions
provided with the iPod or visit www.apple.com/ipod.
HDMI Port*
1. Open the cover.
2. Install the HDMI cable to the HDMI port.
.png)
- Do not leave the HDMI connected device in the
vehicle. Direct sunlight and high temperatures may
damage it.
- We recommend your data backed up before using
the device in your vehicle.
- Displayed messages may vary depend
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
Auxiliary Input Jack
Use the jack to connect standard audio devices.
1. Open the AUX cover.
2. Connect a standard audio device to the
input jack using a 1/8 inch (3.5 mm) stereo
miniplug.
- The audio system automatically switches
to the AUX mode.
.png)
To switch mode, press any of the audio mode
buttons. You can return to AUX mode by pressing
the CD/AUX button.
