Honda HR-V: USB Device Does Not Function (With Navigation)
NOTE:
- Check the vehicle 12 volt battery condition first.
- Check the USB's specifications:
- Mass-storage class ready digital audio player with USB 2.0 port
- More than 256 MB storage space
- Supports MP3, WMA, and AAC (encoded with the iTunes) files, DRM
files are not supported
- Not all players and player functions work with the USB adapter. Please
see the Owner's Manual for more information. Always test the customer's USB
device in a known-good
vehicle of the same year and trim (if possible). Technologies change and are
updated frequently which may result that USB devices may work in newer
vehicles, but not in
older vehicles of the same model.
- Before doing this troubleshooting, check the USB Error Cords.
- Check the connectors for poor connections or loose terminals.
1. Determine possible failure area (USB device, others).
Connect the customer's USB device to a known-good vehicle (same year/trim)
that is equipped with a USB port, and check the USB device operation.
Does the USB device working properly in the known-good vehicle?
YES
Go to step 2.
NO
See the Owner's Manual for details about the USB device requirements and
approved file types.
2. Problem verification:
- On the customer's vehicle, connect the customer's USB device to the USB
port.
- Turn the vehicle to the ON mode.
- Check the USB device operation in the customer's vehicle.
Does the USB device work properly in the customer's vehicle?
YES
Intermittent failure, the system is OK at this time. Inspect the connectors
of the USB device, USB port and USB adapter for wear.
NO: USB port A and B do not work
The failure is duplicated in USB port A and B, replace the audio-navigation
unit.
NO: USB port A does not work
The failure is duplicated in USB port A, go to step 3.
NO: USB port B does not work
The failure is duplicated in USB port B, go to step 4.

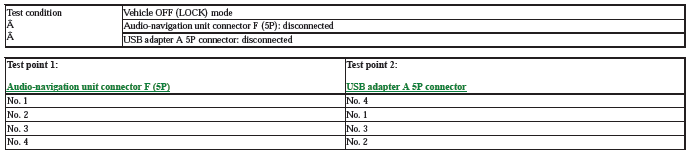

3. Open wire check (USB A lines):
- Turn the vehicle to the OFF (LOCK) mode.
- Disconnect the following connectors.
Audio-navigation unit connector F (5P)
USB adapter A 5P connector
- Check for continuity between test points 1 and 2.
.png)
Is there continuity?
YES
The USB harness is OK. Go to step 5.
NO
There is an open in the wire (s) between the audio-navigation unit and the
USB adapter A. Replace the affected shielded harness.

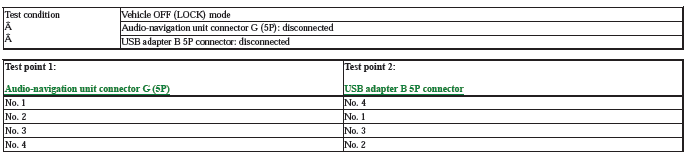

4. Open wire check (USB B lines):
- Turn the vehicle to the OFF (LOCK) mode.
- Disconnect the following connectors.
Audio-navigation unit connector G (5P)
USB adapter B 5P connector
- Check for continuity between test points 1 and 2.
.png)
Is there continuity?
YES
The USB harness is OK. Go to step 5.
NO
There is an open in the wire (s) between the audio-navigation unit and the
USB adapter B. Replace the affected shielded harness.
5. Audio-navigation unit check (substitution):
- Substitute a known-good audio-navigation unit.
- Reconnect all the connectors, and recheck.
Does the symptom go away?
YES
Replace the original audio-navigation unit.
NO
Replace the USB adapter A or USB adapter B.
