Honda HR-V: Tire Pressure Monitoring System - Service Information

Honda HR-V (2015-2021) Service Manual / Suspension System / Tire Pressure Monitoring System - Service Information

REMOVAL & INSTALLATION

TPMS SWITCH REMOVAL, INSTALLATION, AND TEST

Removal and Installation

1. Driver's Dashboard Lower Cover- Remove

2. TPMS Switch - Remove

Tire Pressure Monitoring System - Service Information

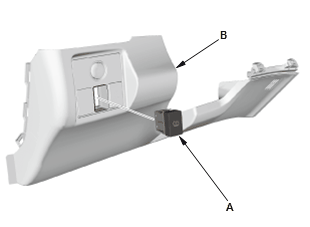

  1. Push out the TPMS switch (A) from the back of the driver's dashboard lower cover (B).

3. All Removed Parts - Install

  1. Install the TPMS switch in the reverse order of removal.

Test

1. TPMS Switch - Test

Tire Pressure Monitoring System - Service Information

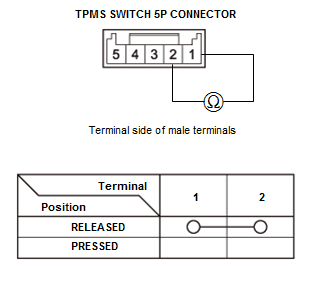

  1. On the switch side, check for continuity between the connector terminal in each switch position according to the table
  2. If the switch does not work as described in the table, replace the switch.
