Honda HR-V: Tailgate Latch Switch Test
Test
1. Tailgate Lower Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)
2. Tailgate Latch Switch - Test
.png)
.png)

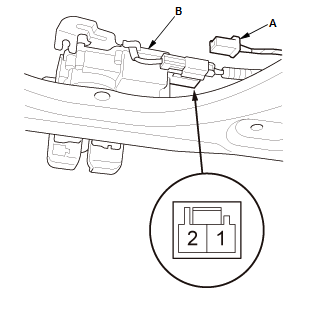

- Disconnect the connector (A).

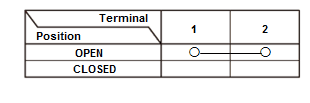

- Check for continuity between the terminals in each switch position according to the table.
- If the continuity is not as specified, the tailgate latch switch is faulty; replace the tailgate latch (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
TAILGATE RELEASE ACTUATOR TEST
Test
1. Tailgate Lower Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)
2. Tailgate Release Actuator - Test
.png)
.png)

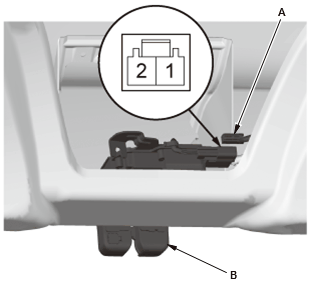

- Disconnect the connector (A).

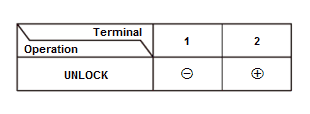

- Check the actuator operation by connecting 12 volt battery power and
ground according to the table.
NOTE : To prevent damage to the actuator, apply 12 volt battery power only momentarily.
- If the actuator does not work, the tailgate release actuator is faulty; replace the tailgate latch (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
