Honda HR-V: Symptom Troubleshooting
12 VOLT BATTERY SYMPTOM TROUBLESHOOTING - LOW OR DEAD 12 VOLT BATTERY
Low or Dead 12 Volt Battery
NOTE:
- A 12 volt battery might be discharged under these conditions:
- Driving a vehicle 6 miles (10 km) or less per day.
- Leaving a vehicle idling with high electrical loads such as
headlight, seat heaters, wipers, rear
window defogger, etc.
- When doing the following operation during the measurement of the
parasitic draw, it may not be
measured accurate:
- With keyless access system: Approaching a vehicle with remote.
- Locking or unlocking a door.

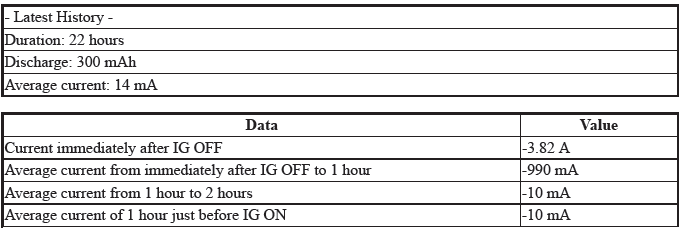

Indication Example
.png)

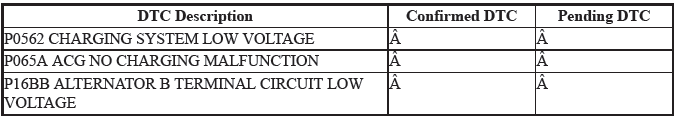

1. PGM-FI system check.
- Check for PGM-FI DTCs.
.png)
Are DTCs P0562, P065A, and/or P16BB indicated?
YES
Go to indicated DTCs troubleshooting.
- DTC P0562
- DTC P065A
- DTC P16BB
NO
Go to step 2.
2. Parasitic draw check.
- Check all the BATTERY CONSUMPTION CURRENT HISTORY with the HDS.
Battery Consumption Current History
Are all the values of average current from 1 hour to 2 hours -30 mA or less?
YES
Check the 12 volt battery.
NO
Go to step 3.
3. Problem verification.
- Turn the vehicle to the OFF (LOCK) mode.
- Get out of the vehicle, and close all doors and tailgate securely.
- Lock the doors with the keyless transmitter or remote.
- Make sure the front individual map light are turned off and the security
alarm system is armed.
- Wait 130 minutes or more.
- Turn the vehicle to the ON mode.
- Check the latest BATTERY CONSUMPTION CURRENT HISTORY with the HDS.
Battery Consumption Current History
Is the values of average current from 1 hour to 2 hours -30 mA or less?
YES
Intermittent failure, the system is OK at this time. The possible cause could
be that an incorrect
parasitic draw value was recorded:
A switch was not turned off.
The vehicle's accessories were operated for a long time with the vehicle
ignition in the
ACCESSORY mode.
NO
Go to the parasitic draw check.
CIRCUIT DIAGRAM

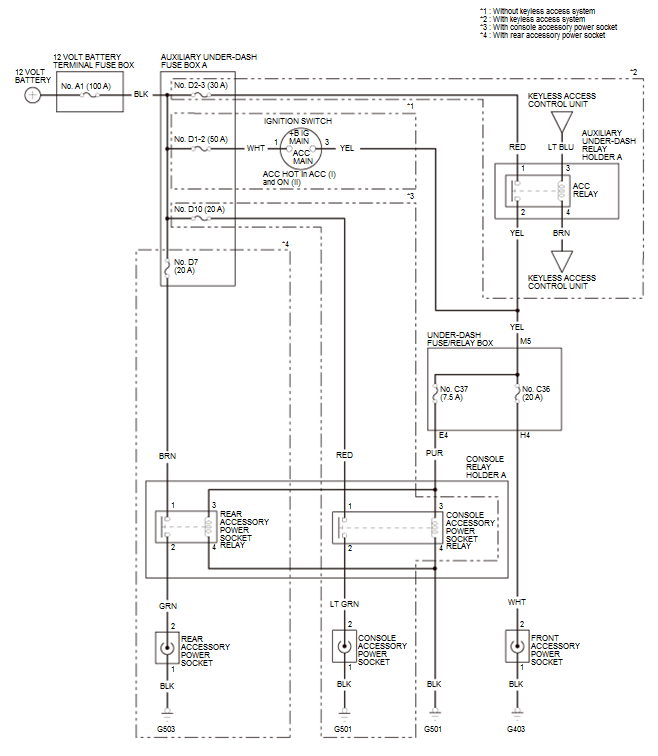

ACCESSORY POWER SOCKETS CIRCUIT DIAGRAM
.png)

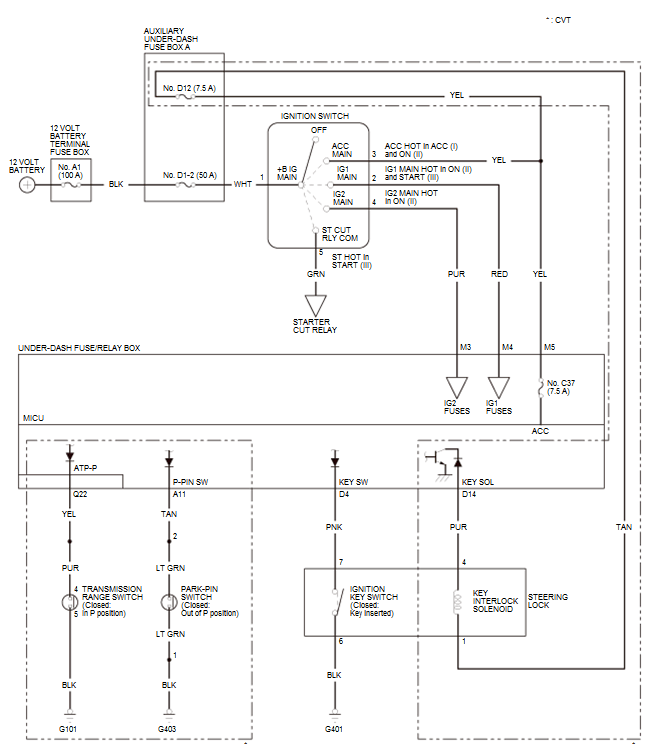

IGNITION SWITCH CIRCUIT DIAGRAM
.png)
