Honda HR-V: MIL Circuit Troubleshooting

1. Gauge control module check.

  1. Turn the vehicle to the ON mode.
  2. Do the gauge self-diagnostic function.

Does the MIL flash?

YES

Go to step 2.

NO

Substitute a known-good gauge control module, then recheck. If the symptom/indication goes away with a known-good gauge control module, replace the original gauge control module.

2. PCM check.

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Connect the HDS to the DLC.
  3. Turn the vehicle to the ON mode.
  4. Check the parameter(s) below with the HDS.

Engine Control System & Engine Mechanical - Testing & Troubleshooting

Do the current condition(s) match the threshold?

YES

Go to step 3.

NO

Update the PCM if it does not have the latest software, or substitute a known-good PCM, then recheck. If the symptom/indication goes away and the PCM was updated, troubleshooting is complete. If the symptom/indication goes away and the PCM was substituted, replace the original PCM.

3. Shorted wire check (SCS line).

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Jump the SCS line with the HDS.

SCS Short

  1. Disconnect the following connector.

PCM connector A (51P)

  1. Disconnect the HDS.

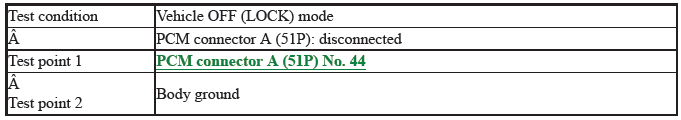

  2. Check for continuity between test points 1 and 2.

Engine Control System & Engine Mechanical - Testing & Troubleshooting

Is there continuity?

YES

Repair a short in the SCS wire between the PCM (A44) and the DLC.

NO

The SCS wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM, then recheck. If the symptom/indication goes away and the PCM was updated, troubleshooting is complete. If the symptom/indication goes away and the PCM was substituted, replace the original PCM.
