FUEL LINE INSPECTION
Inspection
1. Fuel Line - Inspect
USA and Canada models

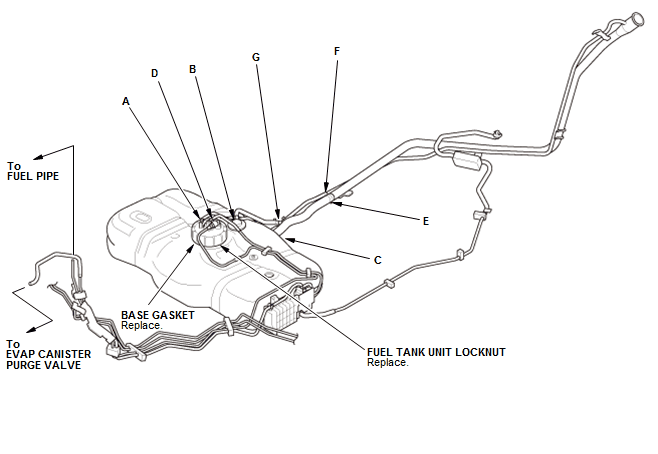

Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.
.png)

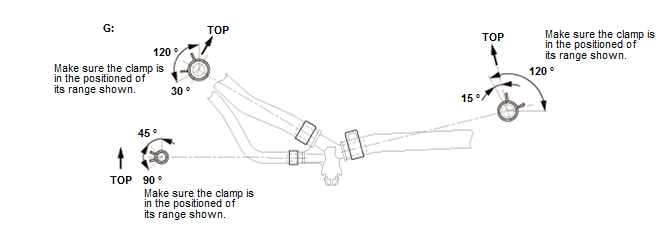

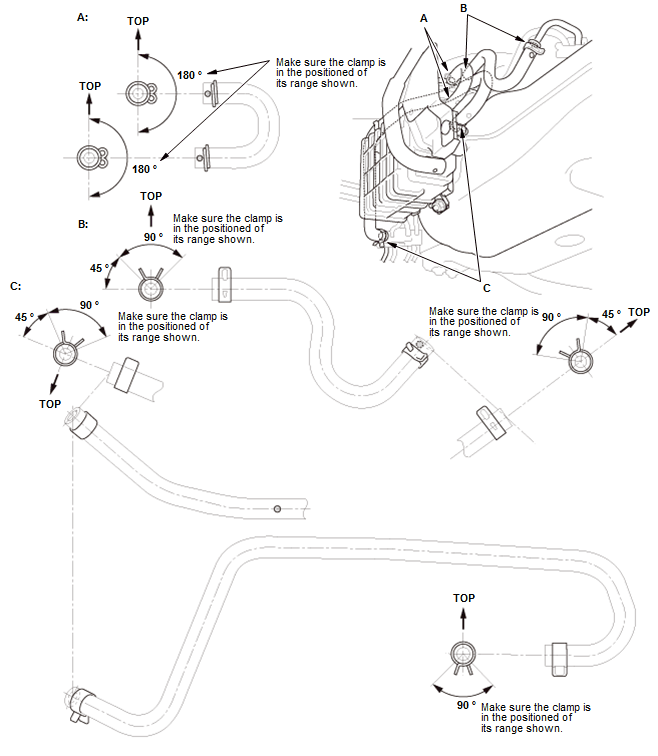

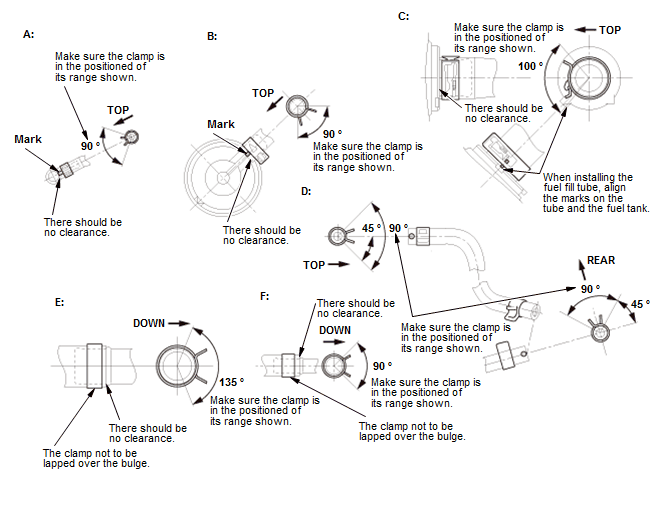

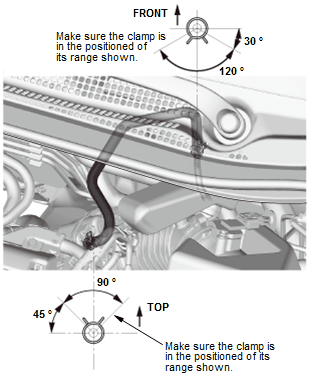

Check all clamps, and make sure they are properly positioned and tightened.

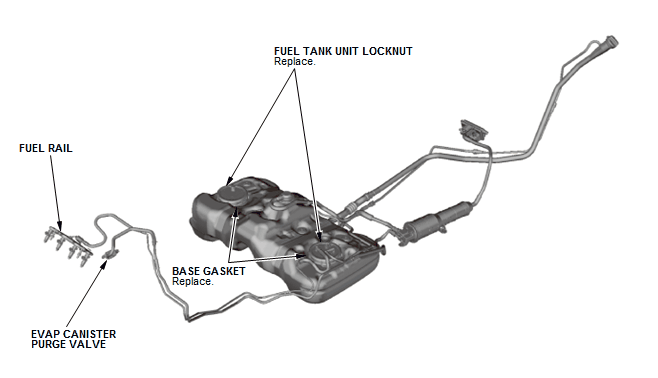

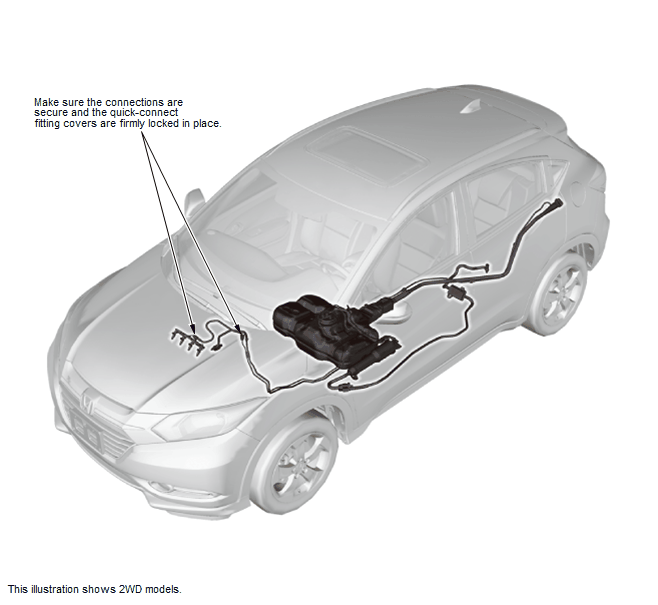

2WD
.png)

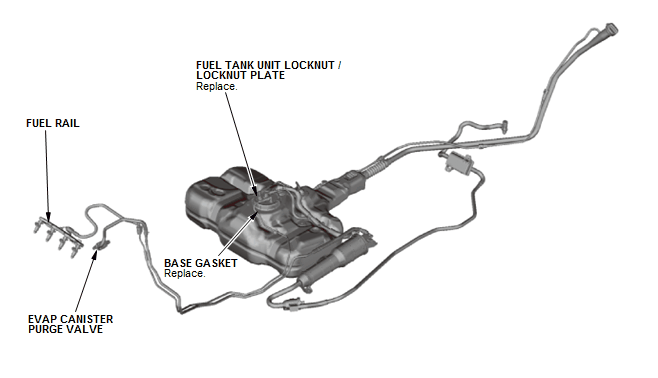

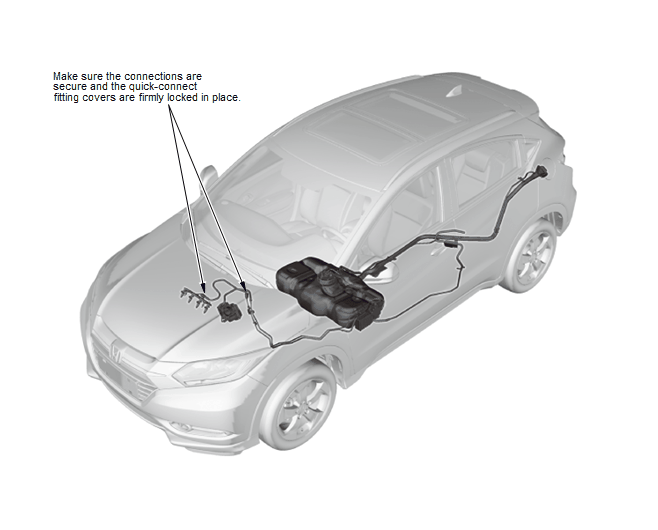

AWD
.png)
.png)
Mexico models
Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.
.png)

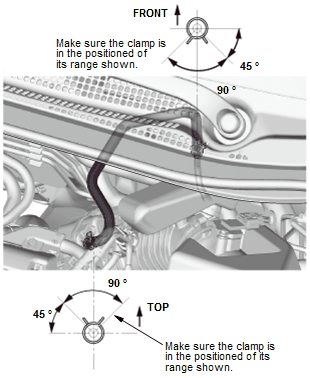

Check all clamps, and make sure they are properly positioned and tightened.
.png)
.png)
.png)
.png)
.png)
