Honda HR-V: Front Seat Belt Removal and Installation

Honda HR-V (2015-2021) Service Manual / Restraints / Seat Belts - Service Information / Front Seat Belt Removal and Installation

Removal and Installation

NOTE: SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. 12 Volt Battery Terminal - Disconnect

NOTE: Wait at least 3 minutes before starting work.

2. Front Seat Belt Lower Anchor Bolt - Remove

Without outer lap tensioner

Seat Belts - Service Information

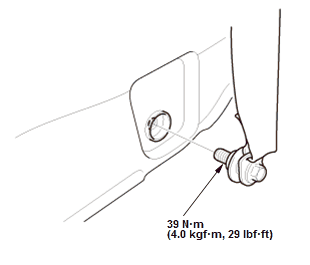

Fig. 2: Front Seat Belt Lower Anchor Bolt Without outer lap tensioner With Torque Specifications

With outer lap tensioner

Seat Belts - Service Information
Fig. 3: Front Seat Belt Lower Anchor Bolt With outer lap tensioner With Torque Specifications

3. Front Seat Belt Upper Anchor Bolt - Remove

Seat Belts - Service Information

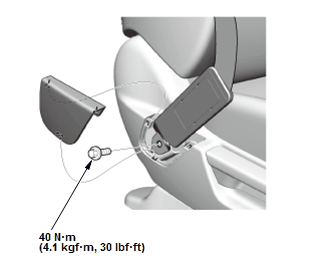

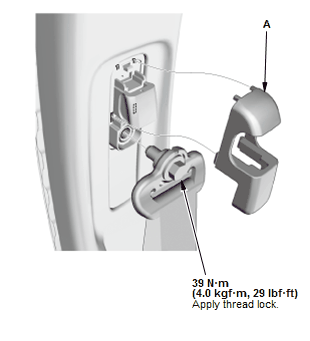

Fig. 4: Front Seat Belt Upper Anchor Bolt With Torque Specifications

  1. Remove the upper anchor cover (A).

4. B-pillar upper/lower trim - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

5. Outer Lap Tensioner Bolt - Remove (For Some Models)

Seat Belts - Service Information

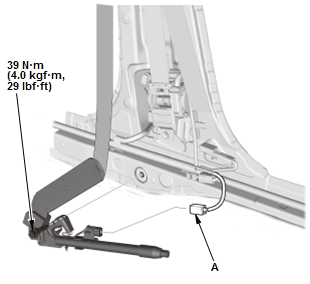

Fig. 5: Outer Lap Tensioner Bolt With Torque Specifications

  1. Disconnect the connector (A).

6. Front Seat Belt Assembly - Remove

Seat Belts - Service Information

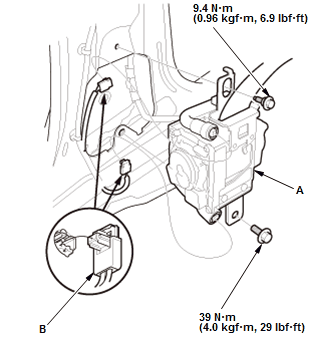

Fig. 6: Front Seat Belt Assembly - Driver's side With Torque Specifications

Seat Belts - Service Information

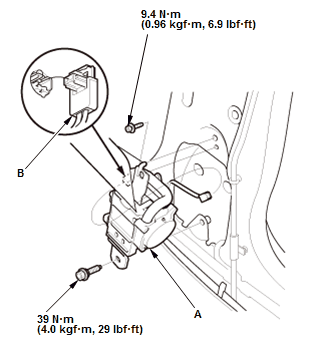

Fig. 7: Front Seat Belt Assembly - Passenger's side With Torque Specifications

  1. Remove the seat belt assembly (A)
  2. Disconnect the connectors (B). (for some models)

7. All Removed Parts - Install

Upper anchor bolt installation

Seat Belts - Service Information

Lower anchor bolt installation

Seat Belts - Service Information

Outer lap tensioner bolt installation

Seat Belts - Service Information

  1. Install the parts in the reverse order of removal.

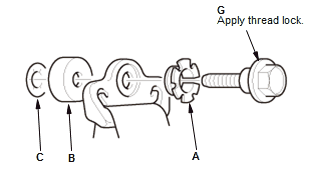

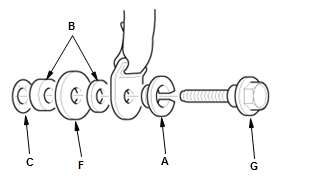

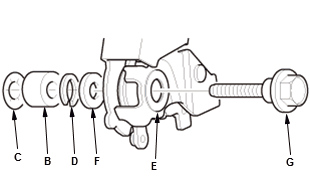

    NOTE: Assemble the bushing (A), the collar(s) (B), the toothed lock washer (C), the spring washer (D), the toothed washer (E), and the plane washer (F) on the bolt (G) as shown.
