Honda HR-V: ECON Switch Test

Test

1. Driver's Dashboard Lower Cover - Remove

2. ECON Switch - Test

Gauges - Testing & Troubleshooting

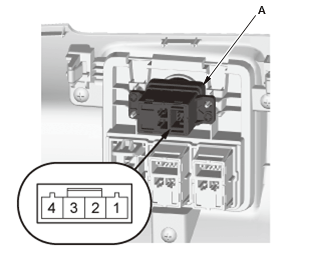

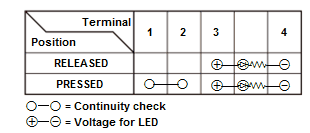

  1. Check the ECON switch (A) according to the table.

NOTE:

  • When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
  • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

Gauges - Testing & Troubleshooting

  1. If the result is not as specified, replace the ECON switch.

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

GAUGE CONTROL MODULE INPUT TEST

NOTE:

  • Before testing, do the gauge control module self-diagnostic function, and make sure the B-CAN communication lines are OK.
  • If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A - Refer to: Body Electrical Troubleshooting - B-CAN System Diagnosis Test Mode A - Initial Communication and DTC Checks,.
  • Before testing, make sure the No. B21 (10 A) fuse in the under-hood fuse/relay box is OK.
  • Before testing, make sure the No. C34 (7.5 A) fuse in the under-dash fuse/relay box is OK.
  1. Turn the vehicle to the OFF (LOCK) mode

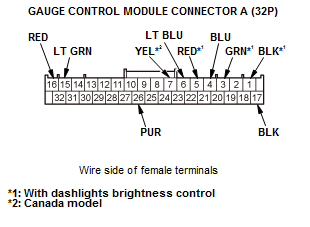

  2. Disconnect the gauge control module connector A (32P).

Gauges - Testing & Troubleshooting

  1. Inspect the connector and socket terminals to be sure they are all making good contact:
    • If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
    • If the terminals are OK, go to step 4.

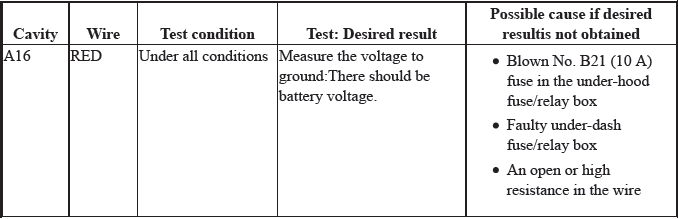

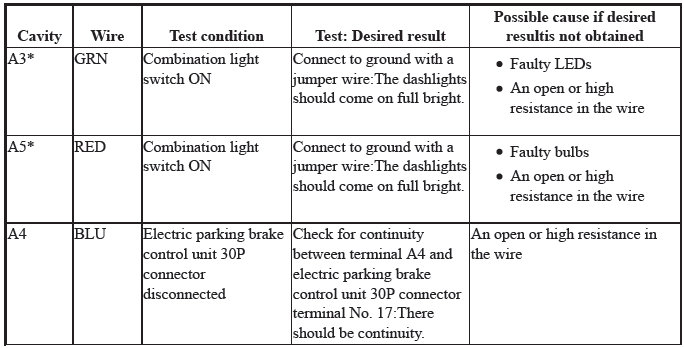

  2. With the connector still disconnected, do the following input tests:
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step 5.

Gauges - Testing & Troubleshooting

*: With dashlights brightness control

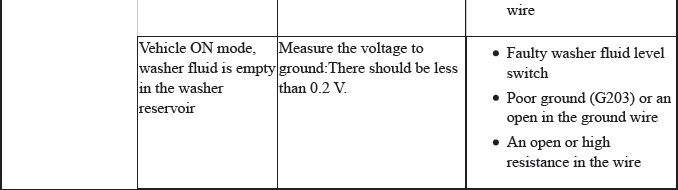

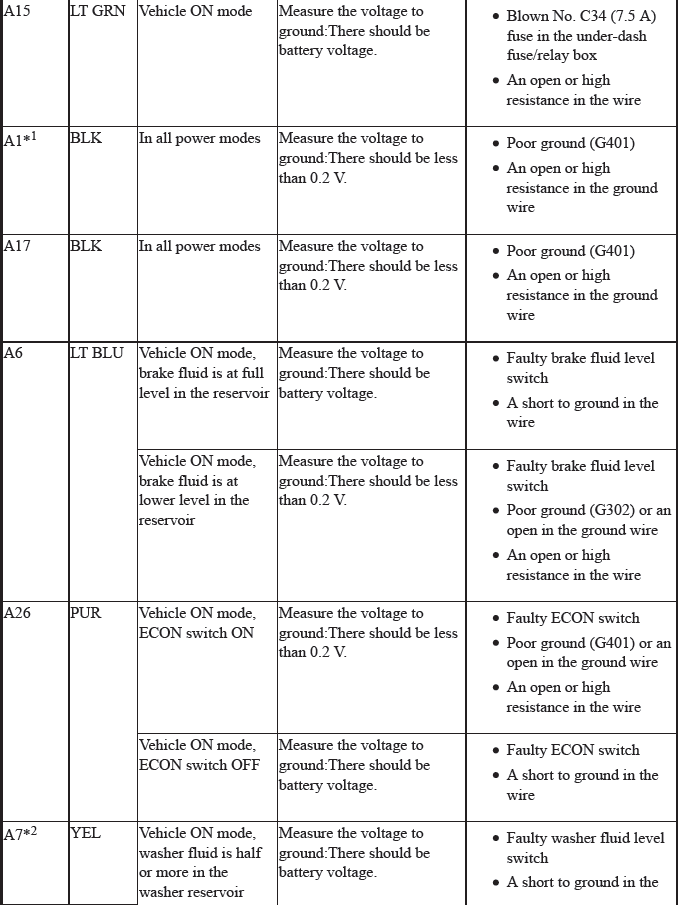

  1. Reconnect the connector, and do the following input tests:
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, replace the gauge control module.

Gauges - Testing & Troubleshooting

Gauges - Testing & Troubleshooting

Gauges - Testing & Troubleshooting

*1: With dashlights brightness control*2: Canada model
