Honda HR-V: Disassembly and Reassembly
HVAC UNIT DISASSEMBLY AND REASSEMBLY
Exploded View
NOTE:
- If the packings are damaged or torn, replace it with a new one.
- For these operations, refer to the complete procedure as needed.
- Air mix control motor removal and installation
- Blower motor removal and installation
- Blower power transistor removal and installation
- Blower resistor removal and installation
- Blower unit removal and installation
- Dust and pollen filter removal and installation
- Evaporator core removal and installation
- Evaporator temperature sensor removal, installation, and test
- Expansion valve removal and installation
- Heater unit/core removal and installation
- Mode control motor removal and installation
- Driver's air mix control motor removal and installation
- Passenger's air mix control motor removal and installation
- Recirculation control motor removal and installation
1. HVAC Unit - Exploded View
.png)

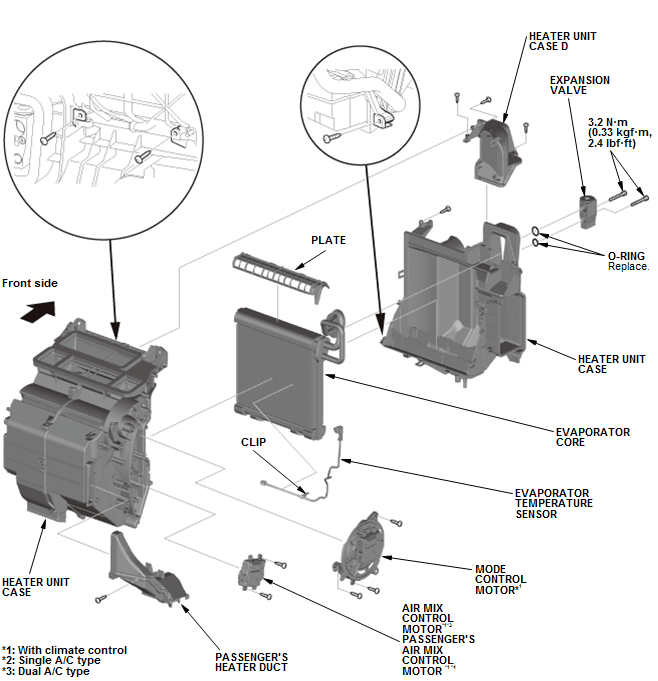

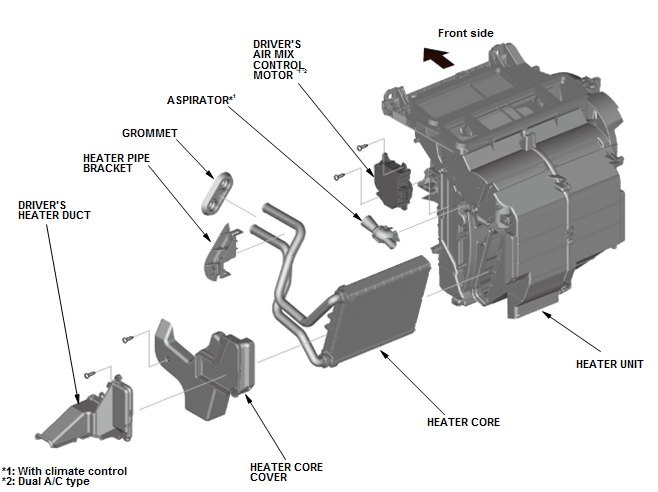

Fig. 16: Exploded View Of HVAC Unit (1 Of 3)
.png)

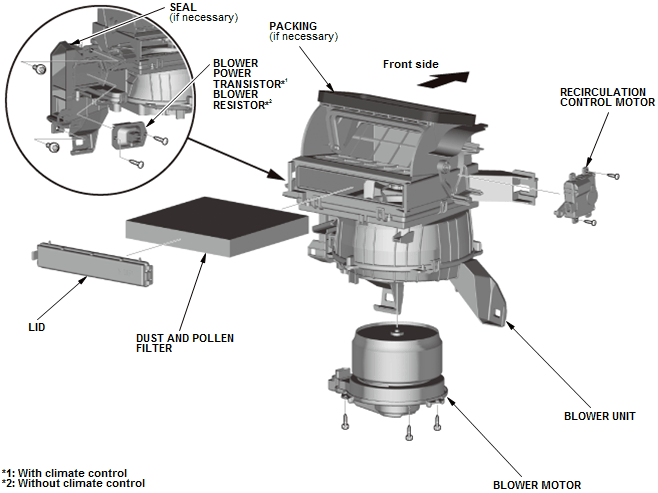

Fig. 17: Exploded View Of HVAC Unit (2 Of 3)
.png)
Fig. 18: Exploded View Of HVAC Unit (3 Of 3)
HEATER CONTROL PANEL DISASSEMBLY AND REASSEMBLY
Exploded View

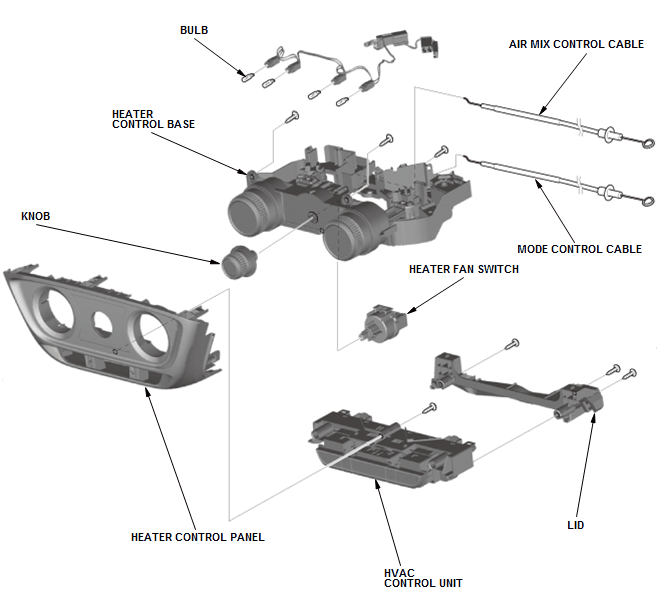

1. Heater Control Panel - Exploded View
.png)
Fig. 19: Exploded View Of Heater Control Panel
Disassembly and Reassembly
1. HVAC Control Unit, Air Mix Control Cable and Mode Control Cable - Remove
.png)

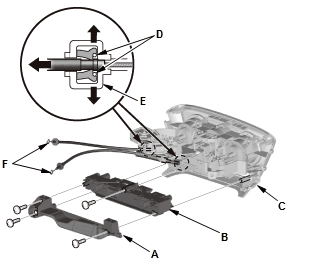

- Remove the lid (A) and the HVAC control unit (B) from the heater
control panel (C)
- Using a snap ring pliers, widen the cable stops (D) in the cable holder
(E), then pull out the control cables (F).

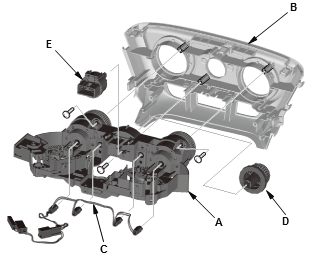

2. Heater Control Base, Bulbs and Heater Fan Switch - Remove
.png)
- Remove the heater control base (A) from the heater control
panel (B)
- Remove the harness (C), then remove the bulbs
- Remove the knob (D)
- Remove the heater fan switch (E).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE: After assembly, check that the lever slides or the dial turns smoothly
through the full stroke
from right to left.
COMPONENT LOCATION INDEX

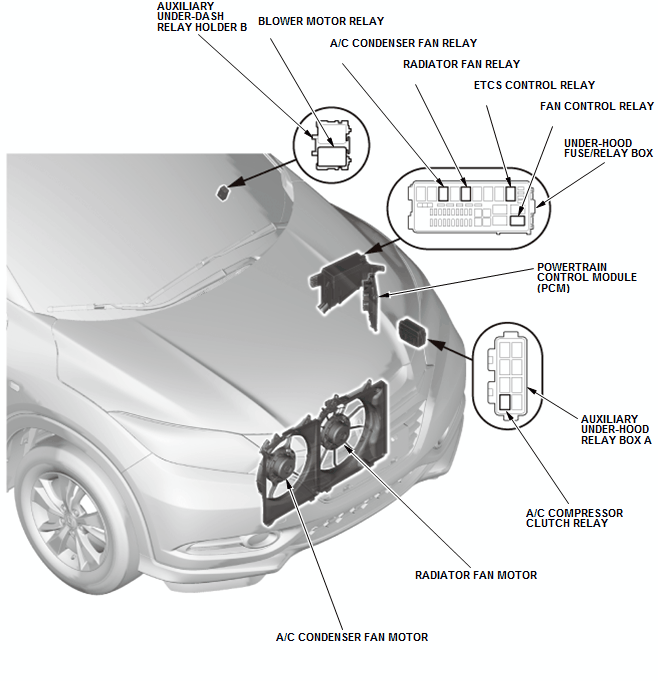

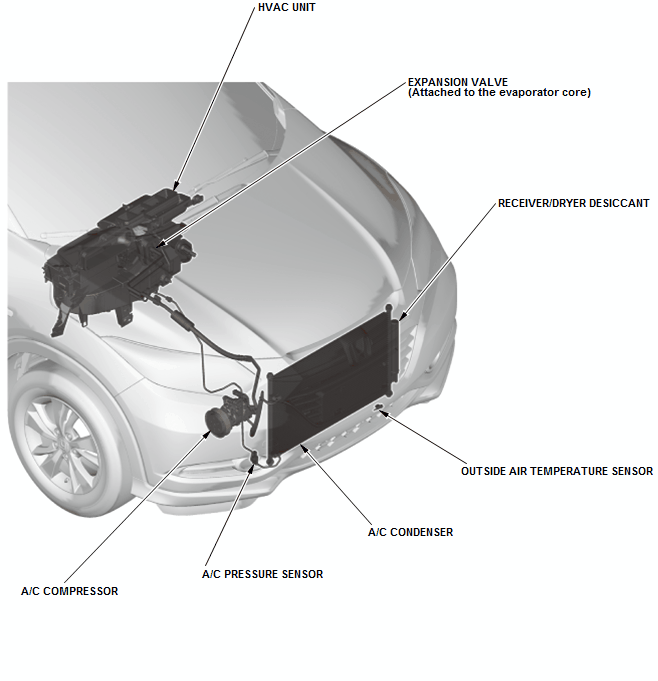

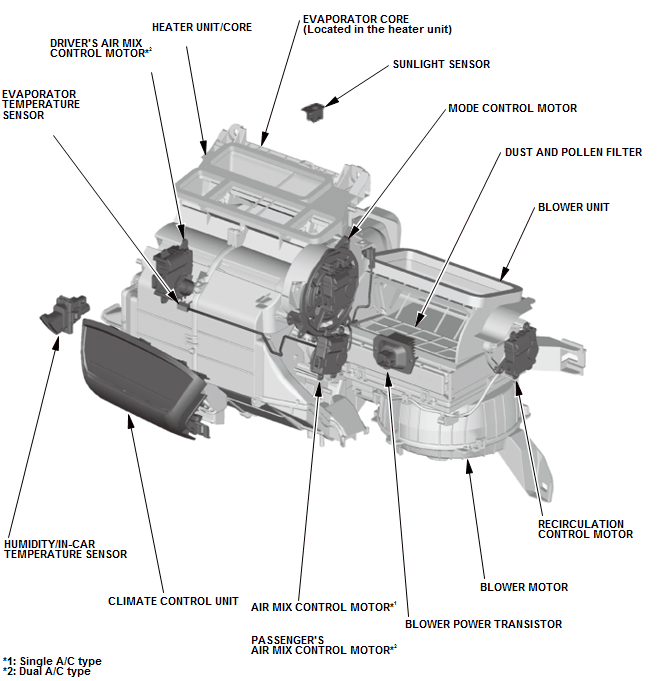

CLIMATE CONTROL SYSTEM COMPONENT LOCATION INDEX
.png)
.png)
.png)

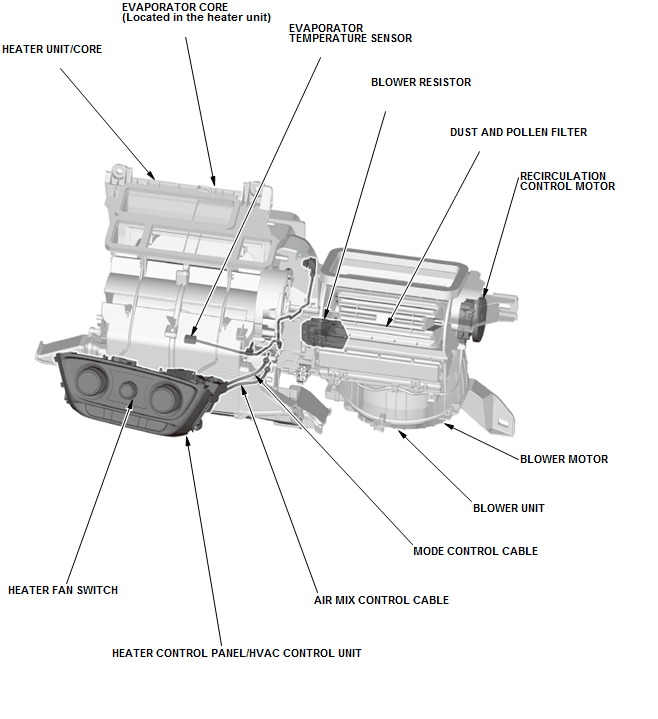

HEATING AND A/C SYSTEMS COMPONENT LOCATION INDEX
.png)
.png)
.png)

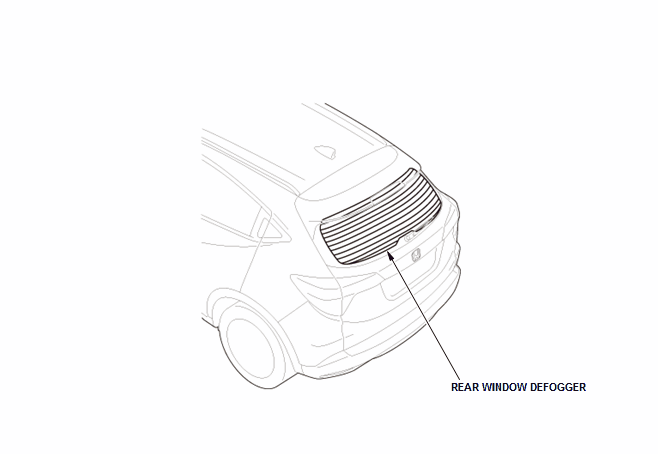

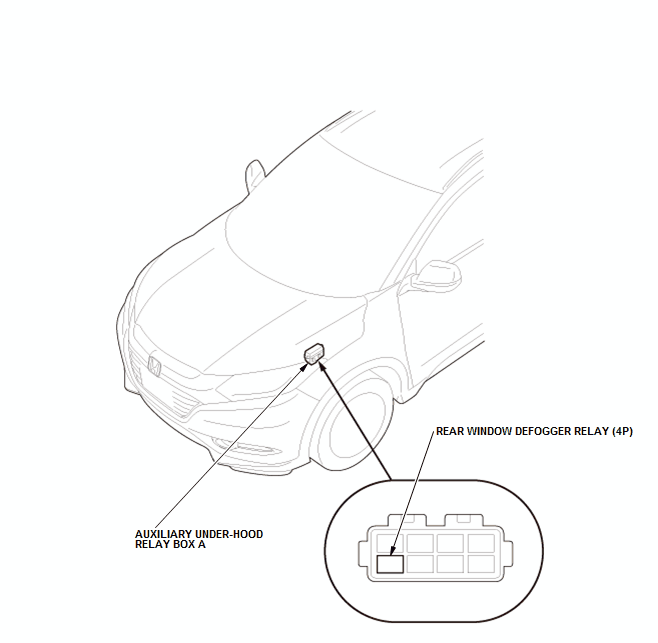

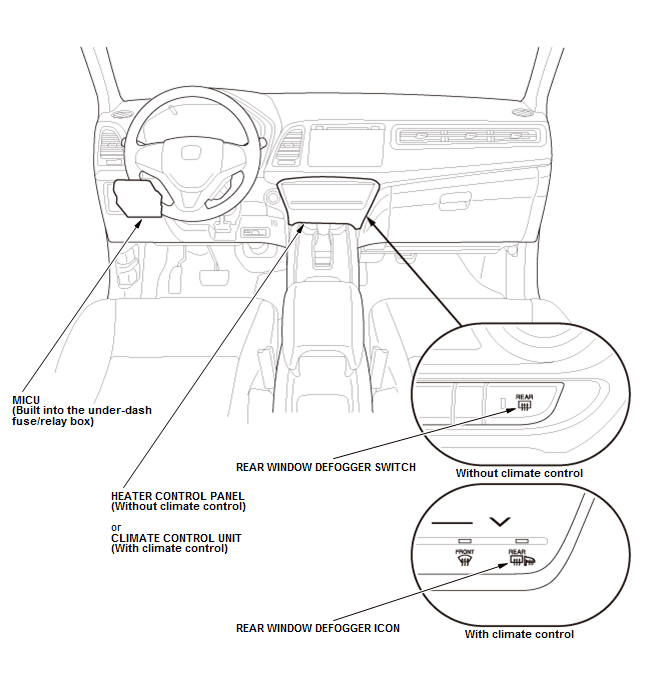

REAR WINDOW DEFOGGER COMPONENT LOCATION INDEX
