Honda HR-V: Air Cleaner Element Removal, Installation, and Inspection

Honda HR-V (2015-2021) Service Manual / Engine / Engine Control System & Engine Mechanical - Service Information / Air Cleaner Element Removal, Installation, and Inspection

Removal & Installation

1. Air Cleaner Element - Remove

Engine Control System & Engine Mechanical - Service Information

  1. Removal & Installation

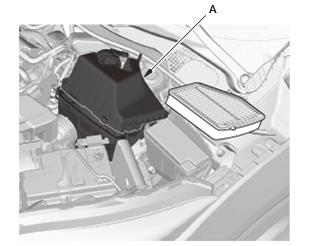

  2. Air Cleaner Element - Remove

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
    NOTE:     If the idle speed fluctuates, do the idle speed inspection.

3. Maintenance Minder - Reset (With Maintenance Minder System)

  1. If the Maintenance Minder required to replace the air cleaner element, reset the Maintenance Minder with the gauge (see "Resetting the Maintenance Minder").

Inspection

1. Air Cleaner Element - Inspect

  1. Check the air cleaner element for damage or clogging. If it is damaged or clogged, replace it.
    NOTE:     Do not use compressed air to clean the air cleaner element.

AIR CLEANER REMOVAL AND INSTALLATION

Removal & Installation

1. Front Grille Cover - Remove

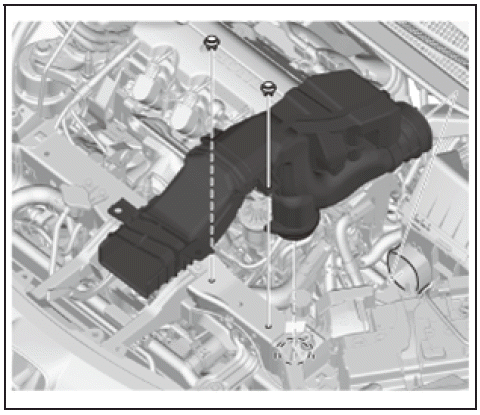

2. Air Intake Duct - Remove

Engine Control System & Engine Mechanical - Service Information

3. Air Cleaner - Remove

Engine Control System & Engine Mechanical - Service Information

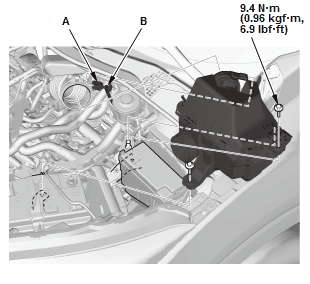

  1. Disconnect the connector (A)
  2. Remove the harness clamp (B)
  3. Remove the air cleaner.

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
